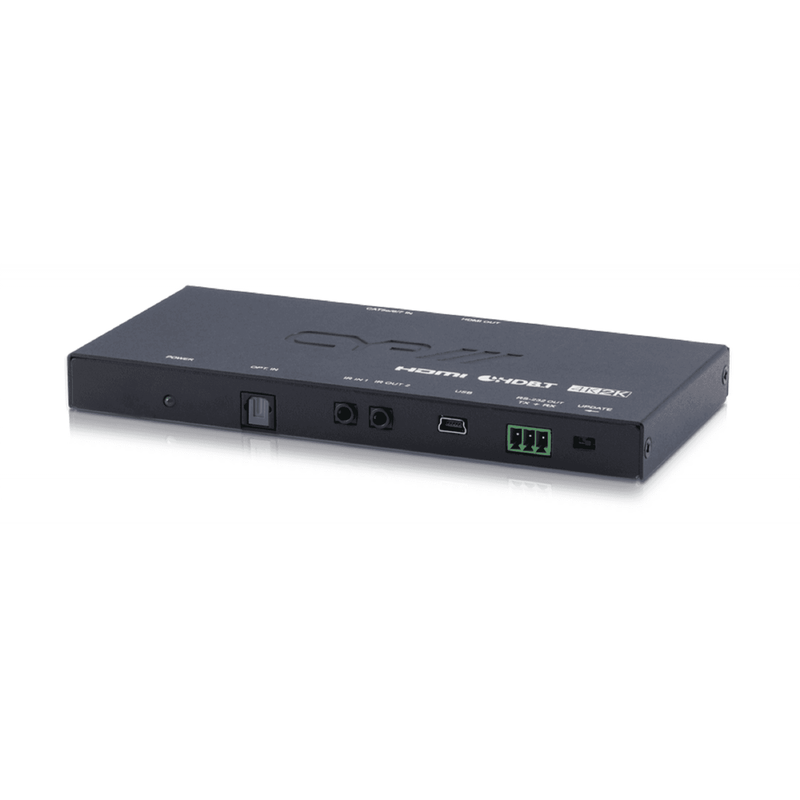

CYP HDBaseT LITE Slimline Receiver
The PU-1230PL-RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and OAR (Optical Audio Return) up to 60m.
The PU-1230PL-RX provides advanced signal management ensuring reliable results in the most demanding installation environments.

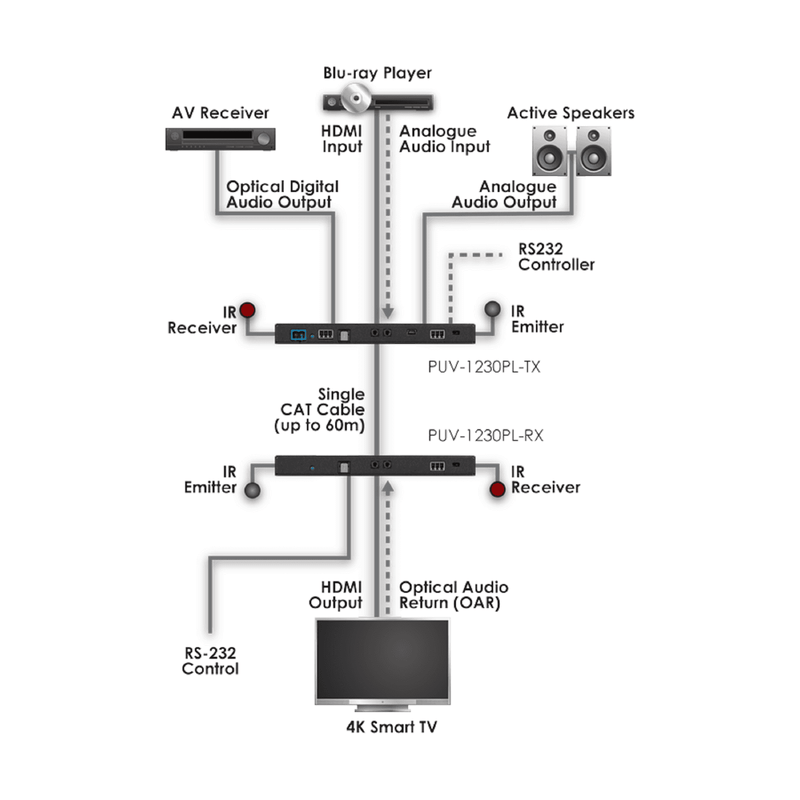

All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 60m.
CYP PU-1230PL-RX Key Features
HDCP 2.2 Compliant
Atmos and DTS-HD Master Audio
Optical Audio Return (OAR)
Supports HDCP repeating and CEC functions
Supports 3D signals
SPECS & DOWNLOADS

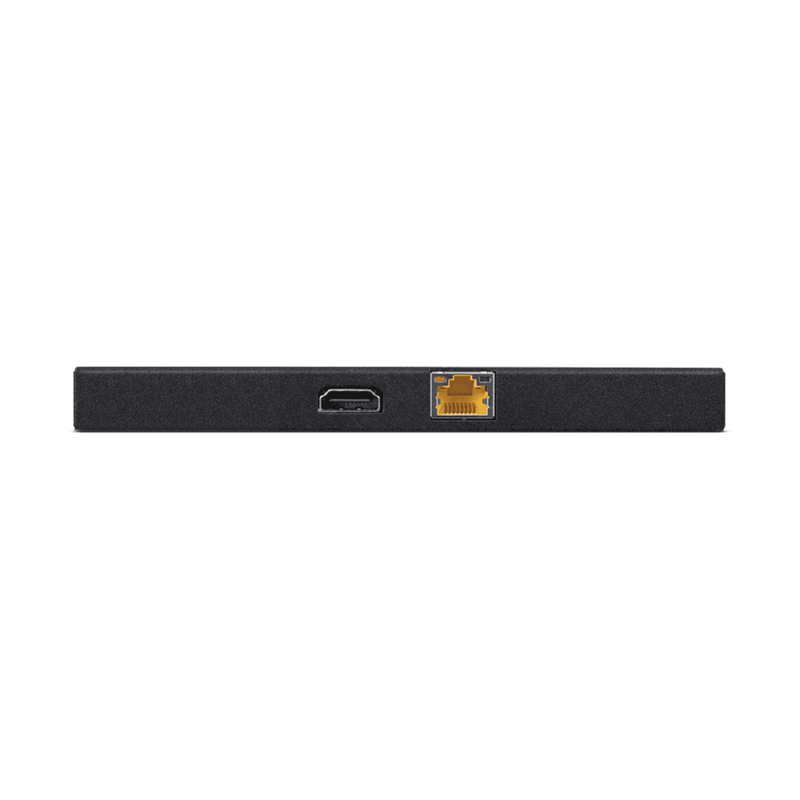

- Inputs: 1x RJ45 [1x HDBaseT HDMI & Propriety Data], 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

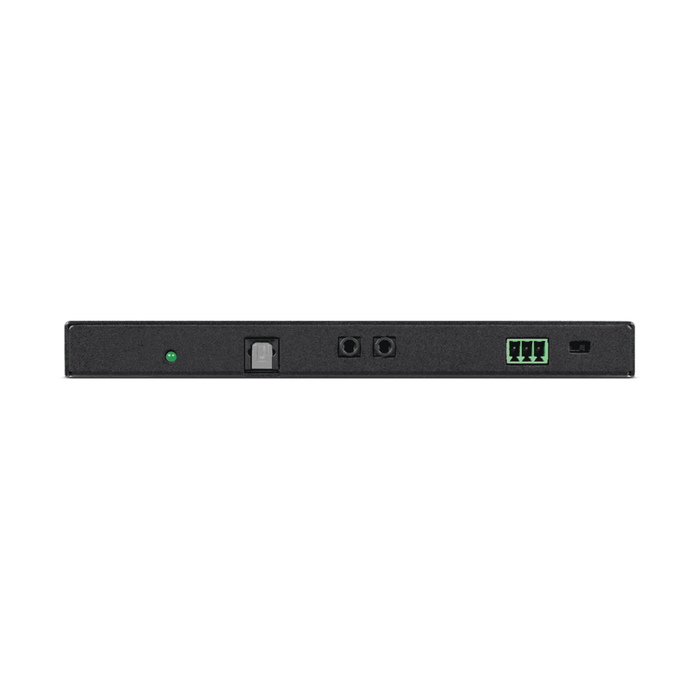

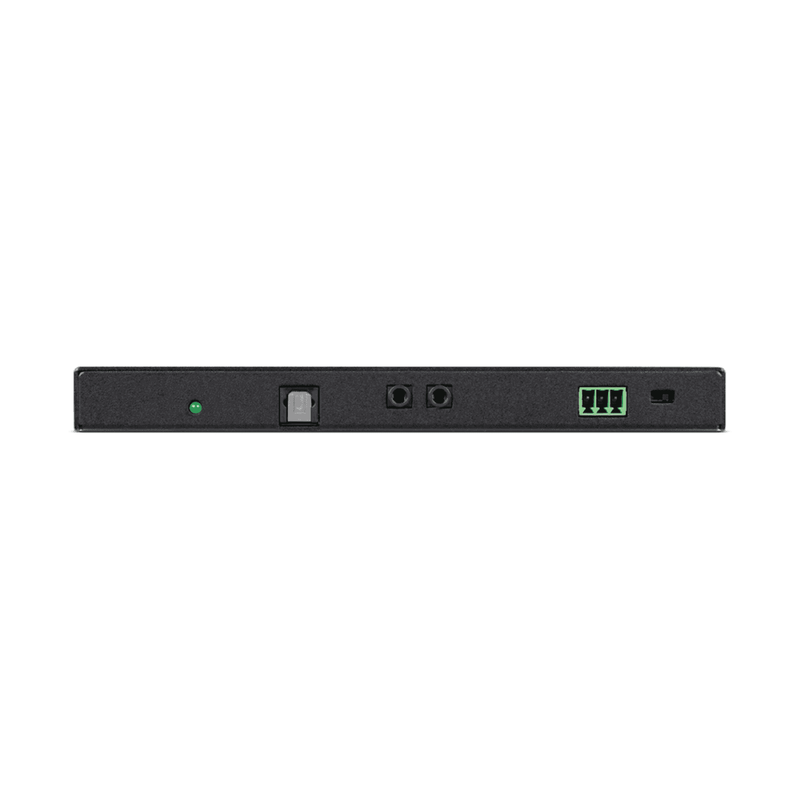

- Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 1x Phoenix (3 pin) [1x RS-232]
- POE PSU: PoH
- Dimensions: 80mm [W] x 165mm [D] x 20mm [H]
- Net Weight: 335g
- Gross Weight: 950g
