CYP Digital Audio over CAT5e/CAT6 Extender Set

by CYP
£152.99 (inc. VAT)
SKU PU-304-KIT
DETAILS

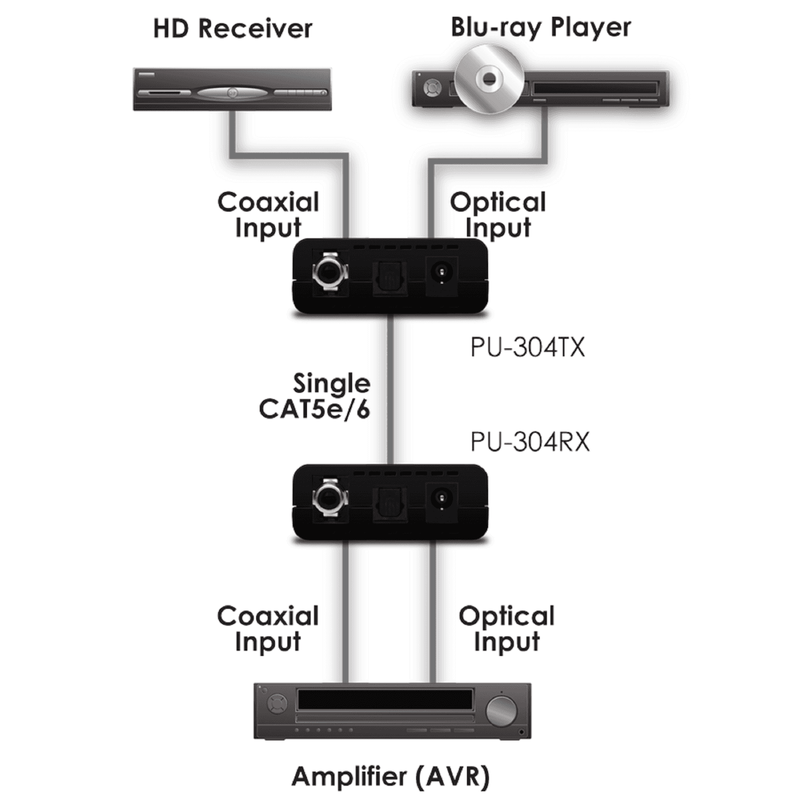

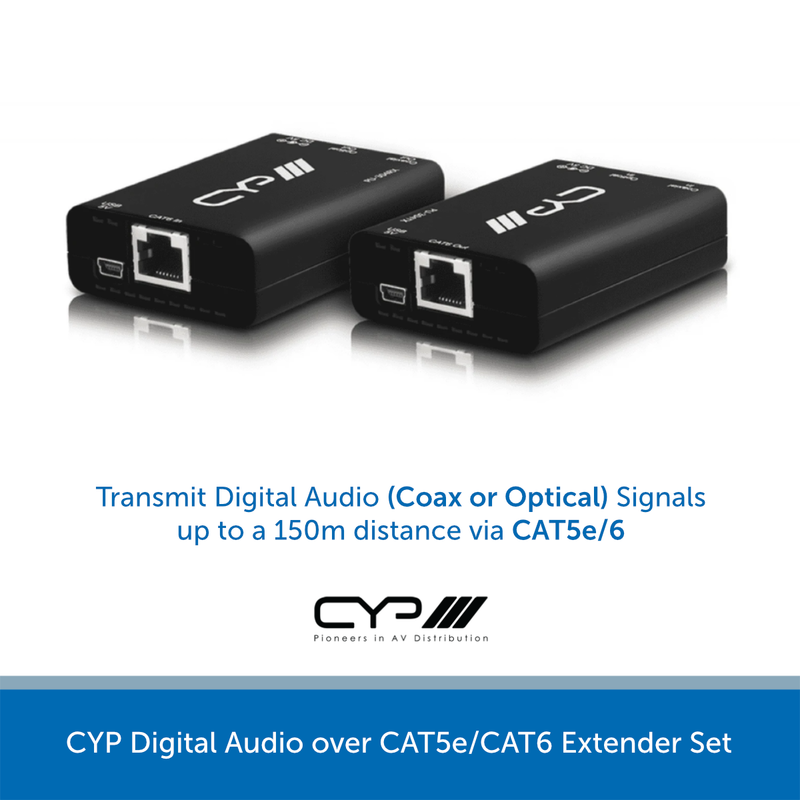

The PU-304-KIT is designed to send digital audio signals up to 150m over CAT5e/6.

Thie CYP PU-304-KIT supports both Coaxial and Optical signals and can be powered using a USB cable or the supplied PSU adaptor for added flexibility in a compact design.

Digital SPDIF signals are supported up to a sample rate of 96Khz, and support for Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus) is also provided.

CYP PU-304-KIT KEY FEATURES

  • Supports Coaxial or Optical digital audio SPDIF signals

  • Supports Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus)

  • Supports sample rate up to 96kHz

  • Dual transmission 1 x Coaxial and 1 x Optical

  • Signals can be extended over single CAT5e/CAT6 up to 150m

SPECS & DOWNLOADS

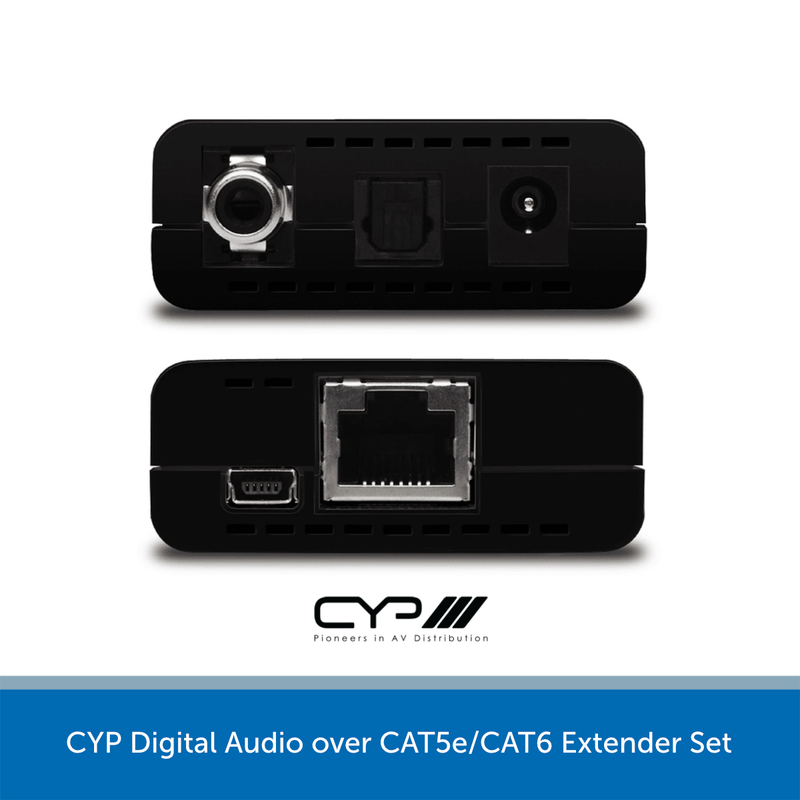

  • Inputs: (PU-304RX) 1x RJ45 [1x Digital Audio Propriety Data], (PU-304TX) 1x RCA [1x Coaxial 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus], 1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus]
  • Outputs: (PU-304RX) 1x RCA [1x Coaxial 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus], 1x Toslink [1x Optical 2 Channel LPCM / DTS / Dolby Digital / Dolby Digital Plus], (PU-304TX) 1x RJ45 [1x Digital Audio Propriety Data]
  • PSU: 5V/1A USB
  • Dimensions: (PU-304RX) 55mm [W] x 85mm [D] x 22mm [H], (PU-304TX) 55mm [W] x 85mm [D] x 22mm [H]
  • Net Weight: (PU-304RX) 60g (PU-304TX) 60g
  • Gross Weight: 380g
