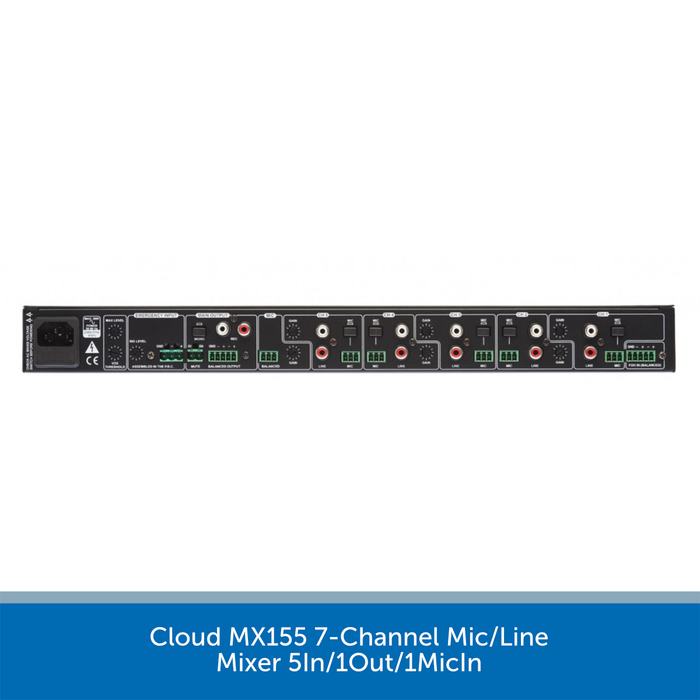

Cloud MX155 7-Channel Mic/Line Mixer 5In/1Out/1MicIn

£179.00 (inc. VAT)
SKU MX155

DETAILS

The Cloud MX155 is a cost-effective, rack mounting (1U) stereo audio mixer for use in all types of commercial premises.

It is simple to install and operate and provides a useful range of features and configuration options.

This 7-channel audio mixer has 5 multi-purpose mic/line inputs, one dedicated microphone input and talk-over feature. All inputs feature dedicated EQ and gain control.

Remote muting and emergency signal replay facilitate the use in installed sound systems.

Key Features:

  • 5 x Mic/Line Level Inputs (Euro/RCA)
  • 1 x Slave FOH or AUX Input (Stereo TRS or 3.5mm Stereo Jack)
  • 1 x Dedicated Mic Input w/VOX Feature (Euro Con)
  • Headphone Pre-Fade Monitor Jack
  • Stereo REC Output (RCA)
  • Stereo Balanced Output (Euro Con)
  • Emergency Line Level Input
  • Music Mute Contact (NO only)



Cloud products have a 5 year commercial warranty as standard





SPECS & DOWNLOADS

Cloud MX155 Audio Mixer Specification

  • Inputs:

    • Mic input: Balanced, 40 dB gain; Combi-type connector
    • Line inputs (Chs1, 3 & 4): Unbalanced stereo, 0 dB gain, RCA jacks (phonos)
    • Aux input (Ch 1 only): Balanced stereo, 0 dB gain; plug-in multipin connector
    • Emergency input: Balanced mono, 0 dB gain; plug-in multipin connector



    Outputs:

    • Main output: Balanced stereo, max. output level +18 dBu
    • Record output: Unbalanced stereo, 0 dBu typical
    • Headphones: Max level 120 mW into 75 ohms @ 1% THD
    Equalisation (outputs):
    • LF +/-10 dB @ 50 Hz
    • HF +/-10 dB @ 10 kHz

    Mic equalisation:
    • LF +/-10 dB @ 100 Hz
    • HF +/-10 dB @ 10 kHz



    Performance:

    • Signal-to-noise ratio >77 dB (line inputs)
    • Crosstalk >65 dB (line inputs)
    • THD <0.01% (output <+18 dBu)
    • Frequency response 20 Hz to 20 kHz, +0/-3 dB
    • Channel balance



    General:

    • Power input Selectable 115 VAC or 230 VAC; 50/60 Hz
    • Power consumption 20W max.
    • Fuse details 5 x 20 mm, 500mA
    • Dimensions (W x H x D): 483 mm x 44.5 mm (1U) x 162.5 mm 19” x 1.75” (1U) x 6.4”
    • Weights 4.5 kg (10.1 lb)



            Cloud MX155 Audio Mixer PDF Download

            Download the Product Data Sheet HERE
