Cloud Electronics MA60 - 60W Mixer Amplifier - 1/2 Rack Size
DETAILS
The Cloud Electronics MA60 is a professional half-rack single-zone mixer amplifier with X.
The Cloud MA60 is a reliable, compact and self-contained mixer amplifier great for background music, ideally suitable for installation in retail premises, bars, hotels, restaurants, licenced premises and many other entertainment locations.
The Cloud MA60 is ideal for any application where a well-featured and cost-effective mixer amplifier is required.
A variety of inputs allow for a direct connection between many music sources such as smartphones, tablets, laptops or external CD players. The MA60 features four stereo line inputs on phono sockets and a balanced microphone input. Phantom power is available at the mic input.
Cloud Electronics MA60 Key Features
- Four-input mixer amplifier with 60W mono power
- Supports MP3 and WMA files from a USB/SD card
- Gain trims on all inputs
- Mic input may be configured as a telephone interface

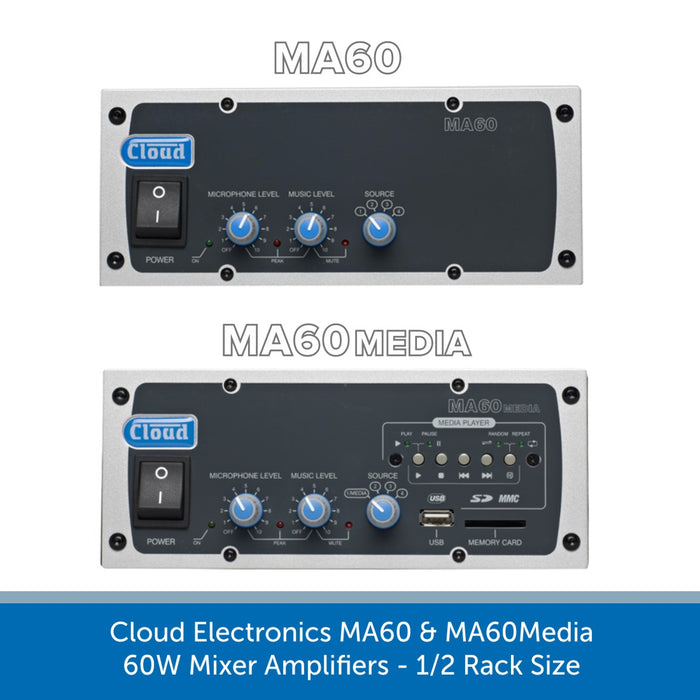

- Front panel control of music source/level and mic level
- Overall HF & LF EQ adjustment
- Paging can be VOX triggered
- Selectable LINE 4 priority over other music inputs
- Music Mute control input (NO or NC) for interface to emergency system
- Compatible with standard Cloud remote control panels – RL1 (music level) and RSL4 (music level and source selection)
- Electronically-balanced pre-amp output
- Transformer-isolated auxiliary output with independent mic and music level control - for use with telephone MOH systems
- Aux output source selection (internal jumper) – fixed source or follow main output
- Remote Standby control input
- 2U half-width (9.5”) rack mounting unit
The Ma60 has a 60W power amplifier, which is suitable for low-impedance loads; a transformer may be readily retrofitted (internally) to allow 100/70/50 V-line systems to be driven. A balanced post level control output is fitted, to feed additional power amplifiers. A transformer-isolated auxiliary output is also available which may be used as an interface to telephone MOH systems, or as a utility output to drive a local rack monitor or an induction loop amplifier. This output may be selected by internal jumper to either follow the main output, or be permanently fed with any one of the music sources.
The MA60 is directly compatible with Cloud PM Series paging microphones. Alternatively, the Mic input may be configured to suit most short-to-ground OEM paging systems with VOX or access-triggered mic-over-music priority. One line input may be set to have priority over any other selected to facilitate connection of a digital sound store or similar device.
Music level only, or music level and source selection may be controlled remotely if wished, using a Cloud RL-1 or RSL-4 remote control plate (respectively). In common with most Cloud audio products, EQ cards to match several popular ranges of installed-sound loudspeakers may be fitted to the amplifier stage. An external Music Mute control input is provided (selectable NC/NO) to allow the unit to be interfaced to a fire alarm system.
View the full range of Cloud Electronics amplifiers & speakers HERE >
SPECS & DOWNLOADS
Cloud MA60 Mixer Amplifier
Line inputs
Frequency Response:
- Low-Z output: +0/-1 dB, 20 Hz to 20 kHz (65 Hz filter out)
- 100/70/50 V-line output (with CXL-50T transformer fitted): +0/-3 dB, 20 Hz to 20 kHz (65 Hz filter out)
Distortion
- Low-Z output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
- High voltage output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
Sensitivity: 195 mV (-12 dBu) to 2.0 V (+8 dBu)
Input Gain Control: 20 dB range
Input Impedance: 47 kohms
Headroom: >20 dB
Noise: -93 dB, 22 Hz to 22 kHz; measured at speaker output, relative to full power
Microphone inputs
Frequency Response:
- Low-Z output: -3 dB @ 100 Hz (3rd. order filter); -1 dB @ 20 kHz
- High voltage output: -3 dB @ 100 Hz (3rd. order filter); -2 dB @ 20 kHz
Distortion: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
Gain: 40 dB range
Input Impedance: >2 kohms (balanced)
Phantom Power: 15 V, switchable per-input by jumpers
Headroom: >20 dB
Noise: -127 dB EIN, 22 Hz to 22 kHz (150 ohms)
Outputs
Output Power
- Low impedance output: 60 W @ 1 kHz & <0.07% THD+N
- 100/70/50 V-line output: 50 W @ 1 kHz & <0.07% THD+N
Equalisation: HF: +/-10 dB @ 5 kHz LF: +/-10 dB @ 100 Hz
Protection: Dynamic level signal limiter max gain reduction of 20 dB, Thermal protection, IV limiting & short circuit protection, Switch on delay
Physical & Dimensions
Power input: 230 V, 115 V, 100 V versions available
Fuse Rating: 230/120 V - T2A H
Fuse Type: 20 mm x 5 mm
Cooling: Convection cooled, vents top and bottom
Dimensions (w x h x d): 213 mm x 88 mm (2U) x 278 mm (plus connectors and knobs)
Shipping Dimensions (w x h x d): 270 mm x 140 mm x 380 mm
Weight: 3.7 kg
Shipping Weight: 4.35 kg
