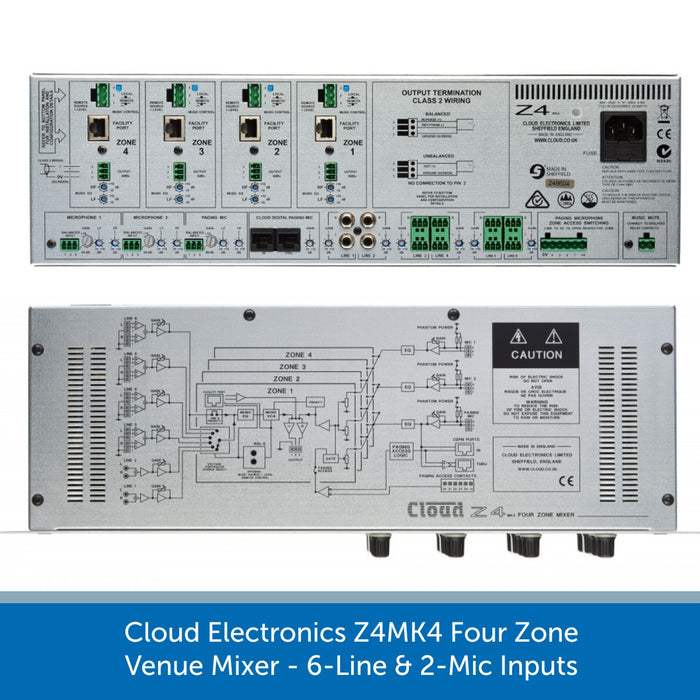

Cloud Electronics Z4MK4 - Four Zone Venue Mixer, 6-Line & 2-Mic Inputs
The latest upgrades include a number of new features which make the Z4MK4 even more flexible and installer friendly.
A new Universal Power Supply (85-254v) allows the Z4MK4 to be installed anywhere in the world, regardless of mains supply. The new up-rated power supply also provides increased output to support the connection of up to 600mA of internal accessories such as EQ cards and external devices such as LM-2 Line/Mic/Remote Mixer Modules and Paging Consoles. The addition of a new RJ45 THRU/IN terminals allows for the simple connection of Cloud Digital Paging Microphones and the addition of four balanced inputs add to the flexibility and increased installer friendliness.
The Z4MK4 is a complete solution for multi-zone, multi-function venues. With the ability to accept up to six input sources directly such as Media player, MP3, Hardisc, CD, Video, Satellite etc., the Z4MK4 has been developed to act as a user-friendly master control for an entire sound system.
Cloud Electronics Z4 MK4 Key Features
- 4 Zone Mono Mixer
- NEW Digital Paging Interface for PM Paging Mics with IN/THRU Connections for Multi Mixer Configuration
- NEW Digital Switch Mode Power Supply (600mA Input Optional Paging & Message Announcer (PM-4SA)
- NEW Lines 1-6 now 2 x Unbalanced on PHONO + 4 x Balanced on Phoenix 3pin 3.5mm connectors
- Line 6 priority, can be selected on a Zone by Zone basis
- Optional Facility input plates on all zones (LM-2/A, B&W)
- Zone Music Level and Source Selection via RSL-6/A (B&W) or RL-1/A (B&W) Wall Remotes
- 2 Mic Inputs with Volume Controls
- Input for Paging Mic with Priority and Zone Selection
- Separate EQ for Mic and Music
- All Mics have Priority over Music
- Fire Alarm “Music Mute” Interface
- Optional custom equalizer modules for various loudspeakers brands can be fitted to any independent zone
If you require any further assistance regarding the Cloud Electronics range please contact us on 02476 369890 and one of our experts will be happy to help. Or use our Request a Call Back page for a FREE no obligation system design & consultation service.
Cloud Electronics Z4 MK4 Specifications
- Frequency Response: 20 Hz - 20 kHz, ±0.5 dB
- Distortion: <0.08%, 20 Hz to 20 kHz
- Sensitivity: 218 mV (-11.0 dBu) to 3.2 V (+12.5 dBu), +/-0.5 dBu
- Input Gain Control range: 20 dB (unbal inputs); 22 dB (bal inputs)
- Input Impedance: 47 kohms
- Headroom: >20 dB
- Equalisation: LF: ±10 dB @ 50 Hz HF: ±10 dB @ 10kHz
- Frequency Response: 100 Hz (-3 dB filter) to 20 kHz, ±0.5 dB
- Gain Range: 10 dB to 50 dB
- Input Impedance: >2 kohms (balanced)
- Phantom power: +12 V (internal DIP switch for selection)
- Headroom: >20 dB
- Noise: -120 dB EIN, 22 Hz to 22 kHz (ZS=150 ohms)
- Equalisation: LF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz
- Input Impedance: 10 kohms (bal.); pin 3: ‘+’, pin 4: ‘-‘
- Sensitivity: 0 dBu (775 mV)
- Noise: Gate Enabled by internal jumper
- Output Level: 0 dBu (775 mV) balanced
- Minimum load impedance: 600 ohms
- Maximum output level: +20 dBu (7.75 V)
Physical & Dimensions
- Power Input: 85 V to 253 V AC, 47 – 63 Hz
- Fuse Rating: 250 V – T1A H (high breaking capacity)
- Fuse Type: 20 mm x 5 mm 250 V
- Dimensions: (w x h x d) 482.6 mm x 132.5 mm (3U) x 160 mm
- Weight: 3.83 kg
Cloud Electronics Z4 MK4 PDF Download
Cloud Electronics is a world leader in sound equipment and Audio Volt are excited to stock Cloud because they pride themselves on making sure they design and build commercial audio products that are truly fit for the challenging applications and demanding environments found in background audio systems.
Since the company's establishment in 1982, Cloud has endeavoured to design, build and test the most reliable of audio products.
Not only are there products designed and hand built in Sheffield United Kindom but 100% of there production is not just electronically tested but most importantly individually sound tested. Guaranteeing the longevity and quality Cloud is respected for throughout the world.
Cloud products carry a comprehensive 5 year commercial warranty as standard for your peace of mind.
The chances of a Cloud system failing at any time is as remote as physically possible. Cloud fully understands the needs of the installer but also the practical issues and user experience expected by the end customer in market sectors such as retail, hospitality and health and fitness.
They take seriously that once their products have been opened by you the customer the outcome is inevitable, its easy to install, simple to operate and delivers the very best sound quality and experience possible for your venue
