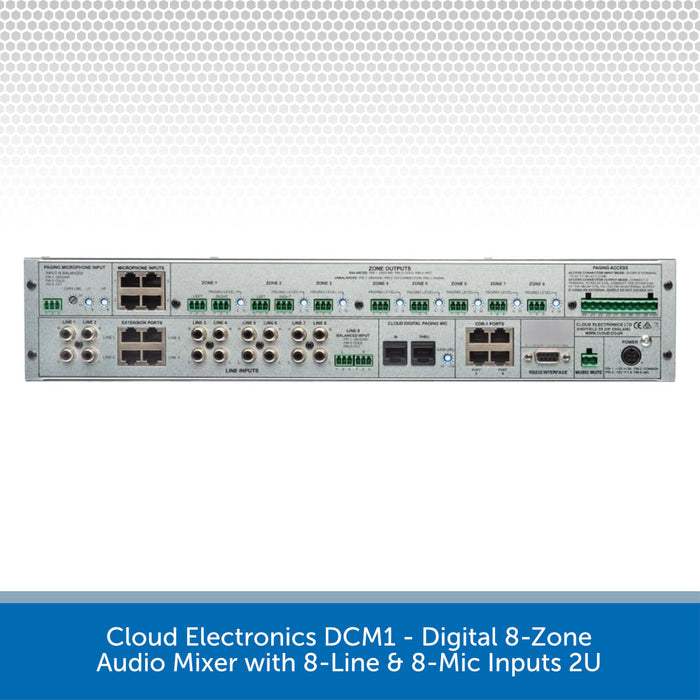

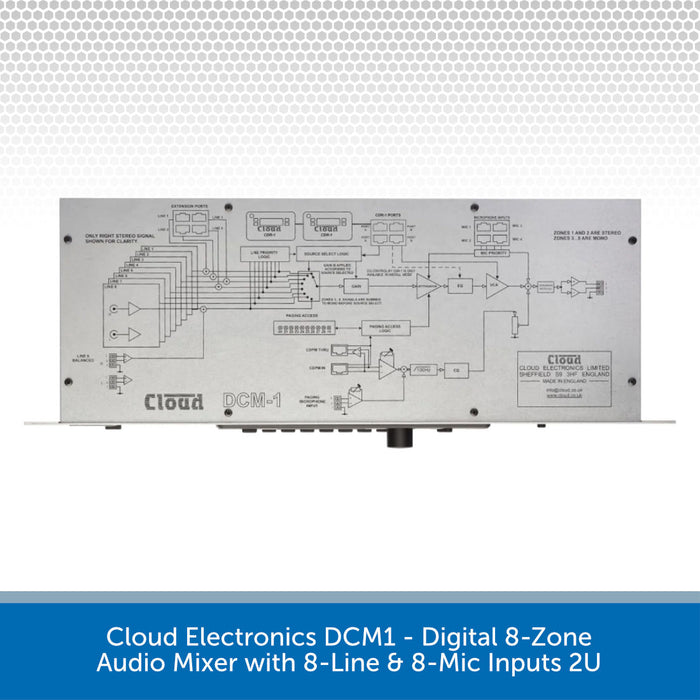

Cloud Electronics DCM1 - Digital 8-Zone Audio Mixer with 8-Line & 8-Mic Inputs 2U
DETAILS
Clouds DCM-1, provides any space-conscious sound installation with a high level of flexibility, but without the need of a PC. It is ideal for contractors/installers who require flexible routing of line & mic signals.
The analogue zoner, with its simple-to-use digital control interface, can be controlled remotely via multiple LCD digital controllers. Optional active input modules extend the flexibility further. The DCM-1 is Cloud's first ever microprocessor controlled multi zoner.
With traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control the DCM-1 has the traditional simplicity of Cloud products, with far greater functionality.
Cloud DCM1 Key Features:
- 8 Stereo Line Inputs (1 Balanced)
- 8 Balanced Line Outputs (2 Stereo + 6 Mono)
- 4 Dedicated Ports for Optional Line Inputs (LE-1)
- 4 Dedicated Ports for Optional Mic Inputs (ME-1)
- Mic Paging to all Zones with Fully Programmable Override Logic
- Seperate Analogue Paging Mic Input with Contact Closure Zone Selection
- Configurable Multiple Remote Controls
- 4 Definable Zone Group Options
- EQ can be set by Remote Controls
- Configurable Line Priority by zone
- Remote Active Line and Mic Modules (LE-1, ME-1 & BE-1)
- RS232 Interface for AMX/Crestron
- Accepts BOSE & Amina EQ Cards per Zone
- No PC Required but Optional Set/Back GUI Utility
View the full range of Cloud Electronics amplifiers & speakers HERE >
SPECS & DOWNLOADS
Cloud Electronics DCM1 Specifications
Line Inputs
- Frequency Response: 20 Hz - 20k Hz ±1 dB
- Distortion: <0.05 %, 20 Hz - 20k Hz
- Sensitivity: 195 mV (-12 dBu) to 3.1 V (+12 dBu)
- Input Gain Control: 24 dB range
- Input Impedance: 47k Ω
- Headroom: >+10 dB
- Noise: -90 dB A weighted (0 dB gain)
- Equalisation
- HF: ±14 dB/10k Hz
- MID: ±14 dB/1200 Hz
- LF: ±14 dB/50 Hz
Paging Microphone Inputs
- Frequency Response: 100 Hz / -3 dB(filter) to 20 kHz ±0.5dB
- Distortion: <0.05% 20 Hz-20k Hz
- Gain Range: 10 dB - 50 dB
- Input Impedance: >2k Ω (balanced)
- Phantom Power: +12 V (PCB jumper for on/off)
- Headroom: >20 dB
- Noise: -120 dB EIN 22 Hz - 22k Hz (150 Ω)
- Equalisation
- HF: ±10 dB/5k Hz
- LF: ±10 dB/100 Hz
Outputs
- Balanced Zone Outputs: 775 mV (0 dBu)
- Minimum load impedance: 600 Ω
- Maximum output level: +10 dBu (2.6 V)
External Power Supply
- External Supply Input: 100 V-240 V AC; 47-63 Hz; 1.35 A
- Power supply: +12 V, 3 A; -12 V 1 A
Physical & Dimensions
- Dimensions (w x h x d): 482.6 mm x 88 mm (2U) x 170 mm
- Dimensions (packed): 570 mm x 270 mm x 220 mm
- Weight net: 3.12 kg
- Weight packed: 4 kg packed
