Cloud Electronics CX263 3-Zone Mixer 1, Stereo & Mono Output
DETAILS
The Cloud CX263 3-Zone rack mixer is the ideal solution for leisure, licensed, commercial and retail environments needing volume & source control of up to 3 areas/zones.
This compact unit has 6 line level inputs and 2 mic inputs with paging microphone access on Mic 1. The CX263 has one stereo and two mono zones. The line inputs and mics can be independently routed to any output zone via the front panel controls, alternatively, the music signals on each zone can be controlled remotely by the RL-1 (level only) or RSL-6 (source and level).

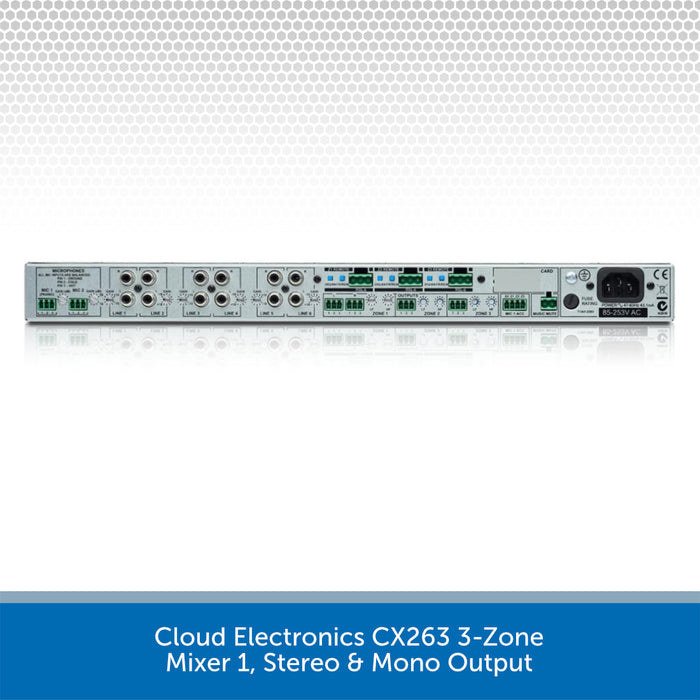

Additional remote control functions can be provided by the optional serial interface card (RS232) CDI-S200 shown fitted on the rear panel which can control the music level and source on each zone, access for Mic 1 on each zone, and access for Mic 2 on each zone. This compact unit is easy to install and operate but has the flexibility to provide a solution for many differing environments.
Cloud Electronics CX263 Key Features
- 1 stereo zone and 2 mono zones
- Easy to use
- Easy to install and configure
- 6 stereo line inputs
- Line 6 priority over other input sources in all zones
- Remote music mute
- Paging microphone access for Mic 1 only
- Microphone over music priority
- Two band microphone EQ behind front panel facia
- 100Hz high pass filter on all microphone inputs
- Two band music EQ per zone on the rear panel
- Front panel gives Mic 1 level, Mic 2 level, music level and music source selection controls
- Optional equaliser modules for Bose loudspeakers can be fitted to any output
- Optional CDI-S200 Serial Interface Card (RS232)
SPECS & DOWNLOADS
Cloud Electronics CX263 Specifications
Line inputs
- Frequency Response: 20 Hz - 20 kHz, +0, -0.3 dB
- Distortion: <0.05% typical, 20 Hz to 20 kHz
- Sensitivity: 100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
- Input Gain Control: 24 dB
- Input Impedance: 48 kohms
- Headroom: >20 dB
- Noise: <-84 dB. 20 Hz to 22 kHz @ 0 dB gain
- Equalisation: LF: +/-10 dB @ 50 Hz, HF: +/-10 dB @ 10kHz
Microphone input
- Frequency Response: -3 dB @ 100 Hz (filter) to 20 kHz, +/-0.5 dB
- Distortion: <0.05%, 20 Hz to 22 kHz
- Gain Range: 10 dB to 50 dB
- Input Impedance: >2 kohms
- Common Mode Rejection: >70 dB @ 1 kHz
- Headroom: >20 dB
- Noise: -128 dB EIN, 20 Hz to 22 kHz @ 0 dB gain
- Equalisation: LF: +/-10 dB @ 150 Hz, HF: +/-10 dB @ 5 kHz
Outputs
- Output level (nominal): 0 dBu
- Maximum output level: +20 dBu
- Minimum load impedance: 1.2 kohms
Physical & Dimensions
- Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm
- Shipping Dimensions (w x h x d): 560 mm x 60 mm x 290 mm
- Weight: 2.15 kg
- Shipping Weight: 3.15 kg
- Power input: 85 V to 253 V AC, 50/60 Hz
- Current consumption: 43.1 mA at 240 V
- Fuse Rating: 1A
- Fuse Type: T1A, 20 x 5 mm
