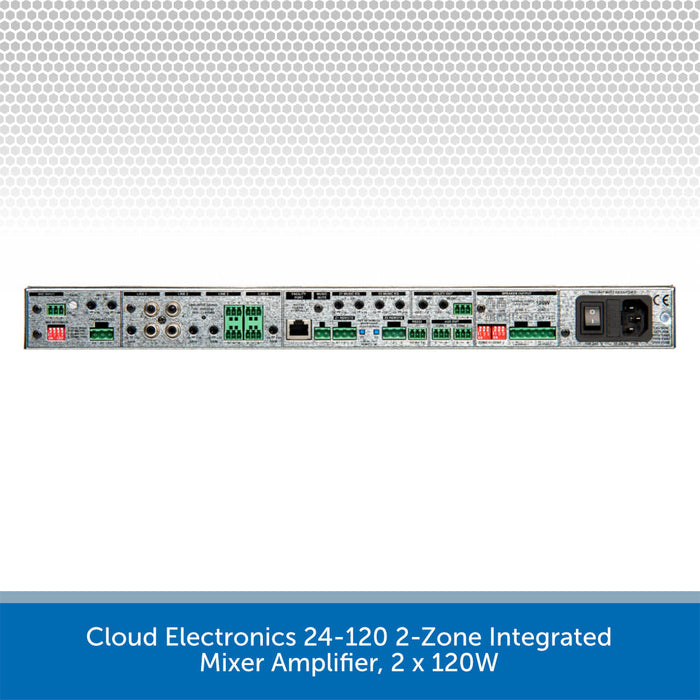

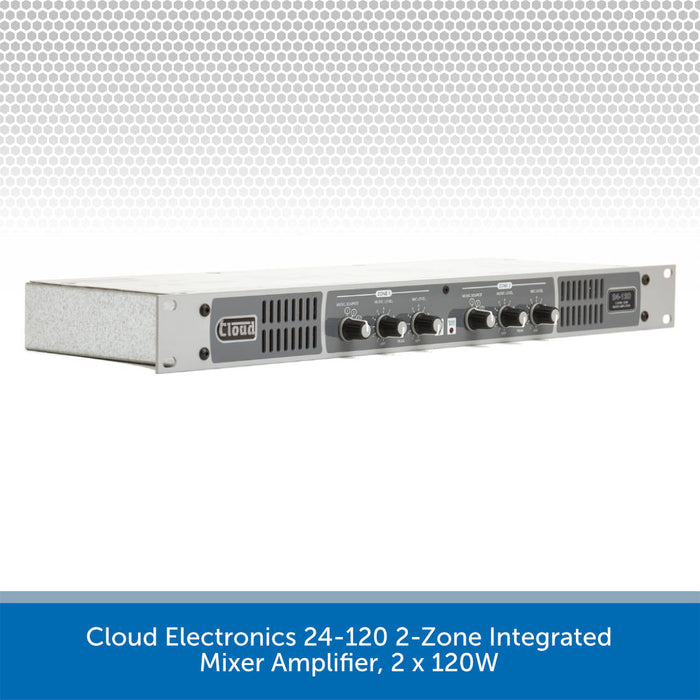

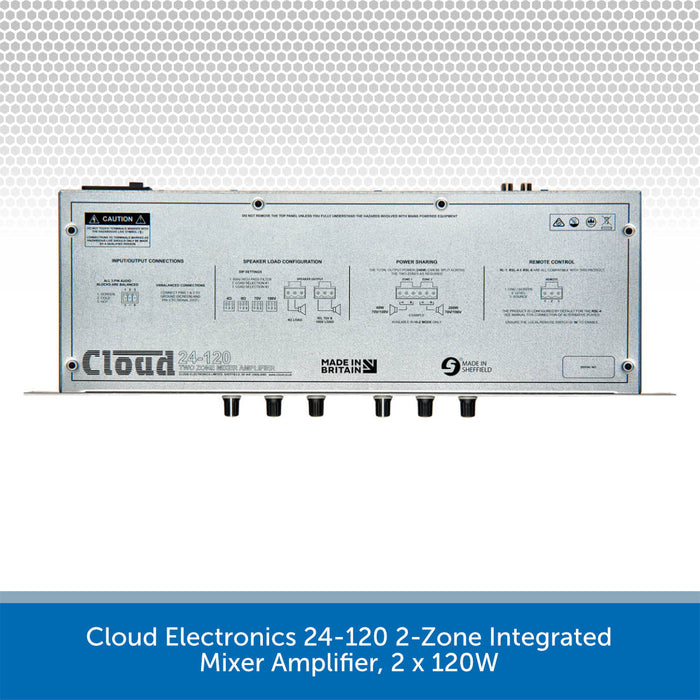

Cloud Electronics 24-120 2-Zone Integrated Mixer Amplifier, 2 x 120W

Original price £872.00 (inc. VAT) - Original price £872.00 (inc. VAT)
Original price £872.00 (inc. VAT)
£872.00 (inc. VAT)
£872.00 (inc. VAT) - £872.00 (inc. VAT)
Current price £872.00 (inc. VAT)
SKU CLO24120
DETAILS

The 24-120 is a brand new approach to 2 Zone Mixer Amplification. Utilising the highest quality amplifier and digital power supply technology. The Cloud 24-120 is a two zone mixer-amplifier intended to provide a complete audio solution for Houses of Worship, retail outlets, hotels, licensed premises and other spaces where music, announcements and/or flexible paging are required.

Catering for up to four music sources, it provides independent source and level control of music in each zone with microphone mixing as required, with full paging facilities. Each zone includes a mono power amplifier and the unit occupies only 1U of rack height.

Cloud Electronics 24-120 Key Features:

  • Two zone mixer/amplifier
  • 2 x transformer-less Class-D 120W amplifiers with limiters on each zone plus Thermal/Short Protection
  • High-Impedance Power sharing (24-120 only)
  • 4 Line inputs, 2x unbalanced/ 2x balanced
  • 1 Mic input with analogue paging options
  • Integrated chime triggered by access control
  • 100Hz dedicated high-pass filter on Microphone input
  • Phantom power selectable by internal jumper
  • Music level and source selection via RSL-4 & RSL-6
  • Facility input (Zone 1 or Both) for active modules LM-2/BT-1
  • RS232 control interface
  • Line 4 priority
  • Mic over Music input priority
  • Separate EQ for music and mic signals
  • 2 x Auxiliary balanced line outputs
  • 1 x Utility / Loop output with independent line & mic controls with music content selection
  • Remote Music Mute configurable for NO or NC operation
  • Selectable speaker output impedance (4Ω/8Ω/70v/100v)
  • Efficient, Universal Power Supply
  • Variable Speed Fan Cooling

    Cloud products have a 5 year commercial warranty as standard



      SPECS & DOWNLOADS

      Cloud Electronics 24-120 Specifications

      Line Inputs

      • Frequency Response:  20 Hz to 20 kHz, ±1 dB
      • Sensitivity:  195 mV (-12 dBu) to 2.0 V (+8 dBu)
      • Input impedance:  >10 kohm (balanced/unbalanced)
      • Headroom:  12 dB
      • Noise:  <-90 dB (22 kHz bandwidth)
      • Equalisation:  HF: ±10 dB @ 10 kHz; LF: ±10 dB @ 50 Hz

      Microphone Input

      • Frequency Response:  -3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB
      • Sensitivity:  2.45 mV (-50 dBu) to 245 mV (-10 dBu)
      • Input Impedance:  3.3 kohms (balanced)
      • Phantom Power:  12 V, selectable by jumper
      • Headroom:  16 dB
      • Noise (EIN):  <-126 dBu
      • Equalisation:  HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz

      Facility Input

      • Frequency Response:  20 Hz to 20 kHz, ±1 dB
      • Sensitivity:  0.775 V (0 dBu)
      • Input impedance:  10 kohms (balanced)
      • Headroom:  18 dB
      • Noise Gate:  -60 dB

      Main Outputs

      • Output Power (1 kHz continuous sine wave)
        • 24-120:  120 watts per zone nominal; 240 W total available in Power Sharing mode
        • 24-240:  240 watts per zone maximum
      • Minimum load
        • Low-Z output:  4 or 8 ohms
        • High-Z output
          • 70 V-line
            • 24-120:  41 ohms
            • 24-240:  20.5 ohms
          • 100 V-line
            • 24-120:  66 ohms
            • 24-240:  33 ohms
      • Frequency response
        • Low-Z output:  20 Hz to 20 kHz, ±1 dB
        • High-Z output:  20 Hz to 20 kHz, ±1 dB (65 Hz filter off)
      • THD + N:  < 0.05% @ 1 kHz
      • Protection:  Fixed level signal limiter: DC, over-current and over-temperature protection

      Utility and Auxiliary Outputs

      • Nominal output level:  0 dBu (0.775 Vrms), balanced
      • Noise:  <-90 dB, 22 kHz bandwidth

      General

      • Power Input:  Universal type, 85 to 265 VAC, 45 to 65 Hz
      • Fuse details
        • 24-120:  5 x 20 mm, time delay, T4A
        • 24-240:  5 x 20 mm, time delay, T5A
      • Normal operating temperature:  0 °C to 35 °C (Note: performance and specifications cannot be guaranteed outside of this range)
      • Cooling:  Forced air cooling (front to side)

            Cloud Electronics 24-120 PDF Downloads

            Download the Product Data Sheet HERE

            Download the User Manual HERE

            ACCESSORIES

            RSL-4 Remote Source/Volume Level Plate

            LM-2 Remote Source/Volume Level Plate with Line/Mic Input
