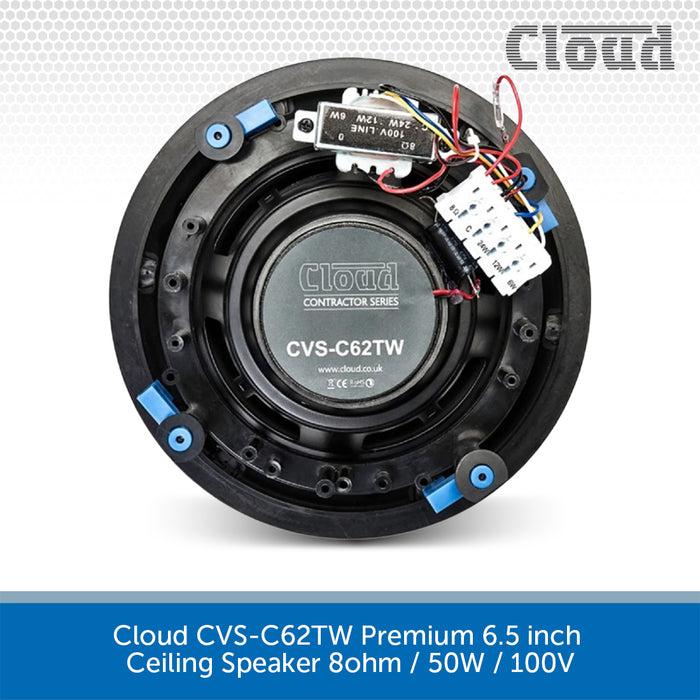

Cloud CVS-C62TW Premium 6.5" Ceiling Speaker 8ohm / 50W / 100V
The Cloud CVS-C62TW is a more premium in-ceiling speaker within the Contractor Series and is more specifically designed for high-quality music reproduction.
Providing both good musical reproduction and a high level of speech intelligibility, the Cloud CVS-C62TW is perfect for audio installations in pubs, bars, hotels, offices and general circulation areas in most types of public buildings.
Operates on 8 Ohms @ 50W RMS and 100V Line with multiple power tappings of 24W, 12W, 6W.
The Cloud Contractor Series Loudspeakers are very easy to install, requiring a single circular cut-out in the ceiling or ceiling tile: a cutting template is provided with each loudspeaker. The loudspeakers are fixed in place by four dog-leg clamps which can be actuated and tightened from below with a screwdriver.
- Snap-on grille – easy to fit and remove
- Cutting template supplied
- Good musical quality and speech intelligibility
- 100 V-line models have integral multi-tap transformer
- Low impedance option on 100 V-line models
- Low profile back can for installation into ceiling voids with limited height
- “Easy Connect” terminal block simplifies installation
SPECS & DOWNLOADS
Cloud Contractor CVS-C62TW Speaker Specification
- Nominal driver diameter: 8”
- Type: 2-way coaxial
- Woofer design: 8” treated paper, with cloth surround
- Frequency Response (-3 dB): 40 Hz – 20 kHz
- Frequency Response (-10 dB): 36 Hz – 20 kHz
- Driver impedance: 8 ohms / 100V
- Transformer taps: 6 W, 3 W, 1.5 W, lo-Z
- Sensitivity (1 W @ 1m): 89 dBA
- Power rating: 25 W
- Max power input: 50 W
- Cutout hole size: 241 mm
- Grille type: Painted steel
- Enclosure: overall dimensions (dia x height): 10.7” x 4” (271.5 mm x 100 mm)
