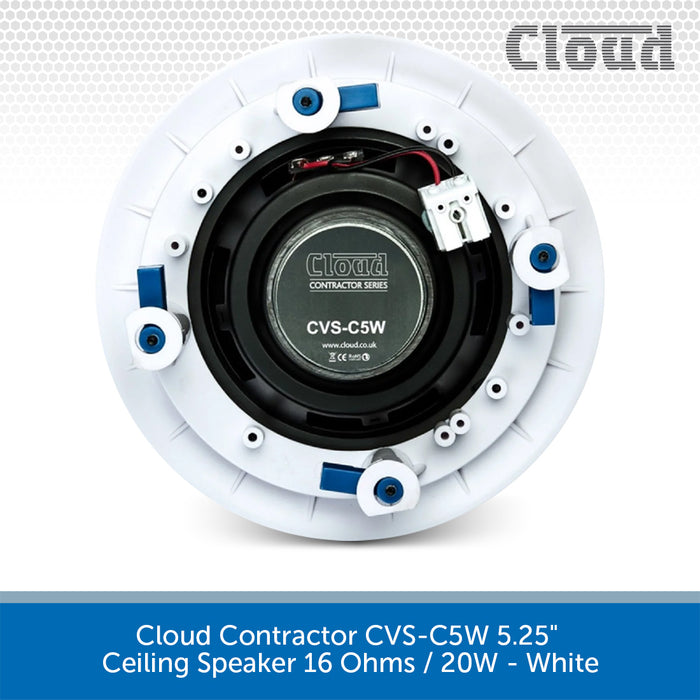

Cloud Contractor CVS-C5W 5.25" Ceiling Speaker 16 Ohms / 20W

£18.00 (inc. VAT)
SKU CVS-C5W

DETAILS

The Cloud CVS-C5W is part of the Contractor Series Loudspeakers and is a low-cost quality loudspeaker designed for flush in-ceiling installations.

Providing both good musical reproduction and a high level of speech intelligibility, the Cloud CVS-C5W is perfect for background music and announcements in pubs, bars, hotels, offices and general circulation areas in most types of public buildings.

The Cloud Contractor Series Loudspeakers are very easy to install, requiring a single circular cut-out in the ceiling or ceiling tile: a cutting template is provided with each loudspeaker. The loudspeakers are fixed in place by four dog-leg clamps which can be actuated and tightened from below with a screwdriver.


Key Features:

  • Snap-on grille – easy to fit and remove
  • Cutting template supplied
  • Good musical quality and speech intelligibility
  • 100 V-line models have integral multi-tap transformer
  • Low impedance option on 100 V-line models
  • Low profile back can for installation into ceiling voids with limited height
  • “Easy Connect” terminal block simplifies installation





Cloud products have a 5 year commercial warranty as standard





SPECS & DOWNLOADS

Cloud Contractor CVS-C5W Speaker Specification

  • Nominal driver diameter: 5¼”
  • Type: Dual cone
  • Woofer design: 5¼” treated paper, with cloth surround
  • Frequency Response (-3 dB): 73 Hz – 20 kHz
  • Frequency Response (-10 dB): 57 Hz – 20 kHz
  • Driver impedance: 16 ohms
  • Sensitivity (1 W @ 1m): 85 dBA
  • Power rating: 10 W
  • Max power input: 20 W
  • Cutout hole size: 169 mm
  • Grille type: Painted steel
  • Enclosure: overall dimensions (dia x height): 8.1” x 3.2” (205 mm x 80 mm)

Cloud Contractor CVS-C5W PDF Download

Download the Product Data Sheet HERE
