Clever Acoustics ZM 8 | 8 Zone Audio Matrix System

£749.00 (inc. VAT)
SKU
DETAILS

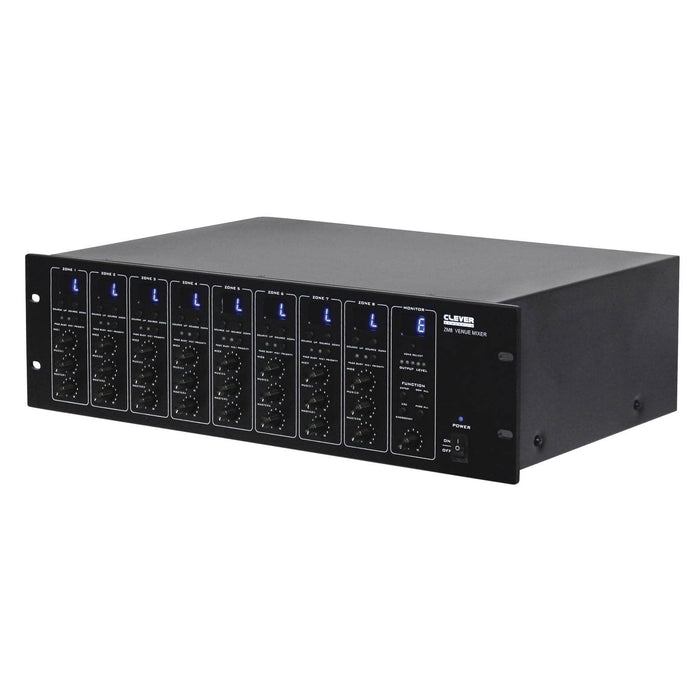

The Clever Acoustics ZM 8 Zone Mixer allows 8 signal sources plus 2 dedicated paging microphones to be routed into 8 separate zones.

The ZM 8 Zone Mixer offers a complete solution for multi-zone, multi-functional venues such as entertainment establishments, hotels, shopping centres and airports.

Each zone can be controlled remotely via a wall plate which offers great flexibility, whilst control is also available centrally via the master front panel. A range of wall plates is available...

  • ZM 8 CW - Volume and Audio Source Control
  • ZM 8 DW - Local Input and Volume Control
  • ZM 8 BW - Local Input, Volume and source control

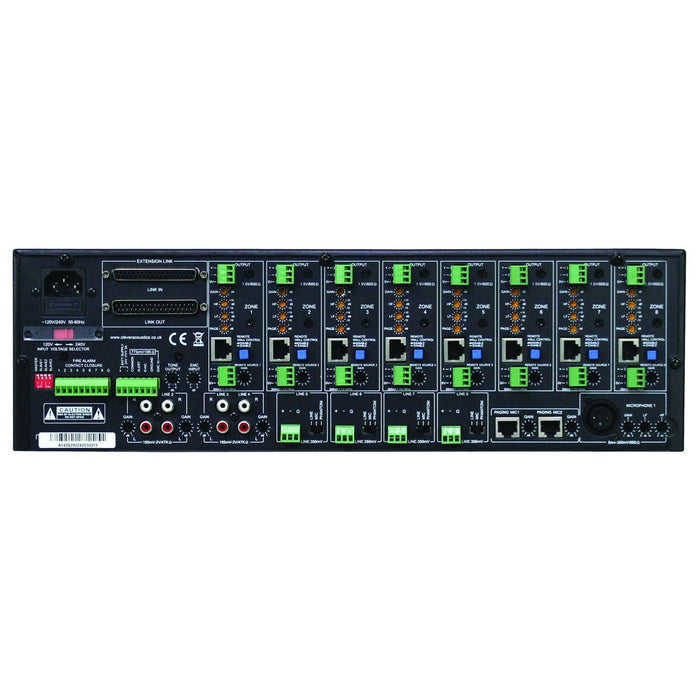

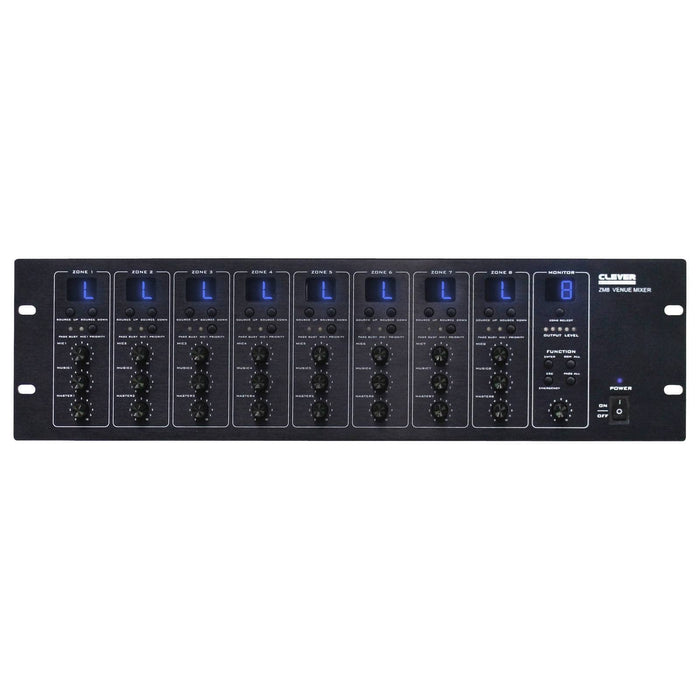

Each zone output features front panel operator controls for source select, priority mic override, paging mic level, music level and master volume level. Engineers controls are located on the rear panel including output gain, HF/LF control, paging level control, wall plate enable/disable and remote source gain.

The Clever Acoustics ZM 8 features multiple RCA Phono inputs for connecting an array of line-level devices such as MP3 players, laptops, smartphones, tablets, and CD players, etc. The ZM 8 also has an XLR mic input for connecting an external microphone, as well as two RJ45 paging mic inputs for use with the PM ZM 8 desktop paging microphone. Each input channel as a dedicated EQ and gain control.

Features full fire alarm relay functions (alert, evacuation and alarm; three pre-recorded chimes are provided with tone control). Priority from high to low: mic 1, fire alarm, remote paging console, remote control panel and background music

Key Features:

  • 3-year warranty
  • Each zone output features front panel operator controls for source select, priority mic override, paging mic level, music level and master volume control
  • Engineers controls include gain, HF/LF control, paging level control, wall plate enable/disable and remote source gain
  • Mic 1 features balanced XLR, gain control and LF and HF tone adjustment
  • Paging mic inputs 1 and 2 located on rear panel feature audio input via RJ45 for use with the PM ZM8 paging microphone and gain control
  • 8 zone voice alarm contact closure to activate built-in tone voice alarm
  • Full fire alarm relay functions (alert, evacuation and alarm; three pre-recorded chimes are provided with tone control)
  • EMC and ground for external voice alarm generator input
  • 4 swift keys for direct all channel BGM and paging access
  • Priority from high to low: mic 1, fire alarm, remote paging console, remote control panel and background music
  • AC 220V-240V and DC 24V operating voltage
  • Monitor output with volume
    SPECS & DOWNLOADS

    Clever Acoustics ZM 8 Specifications

    • Outputs: 0.775V / 600Ω
    • Frequency response (MIC): 80Hz-18KHz (+1/-3dB)
    • Frequency response (Line): 20Hz-20KHz (+1/-3dB)
    • Power supply: 110V/60Hz and 240V/50Hz or DC 24V
    • Power consumption: 20W
    • Dimensions (H x W x D): 132 x 484 x 304mm
    • Weight: 10.3kg
