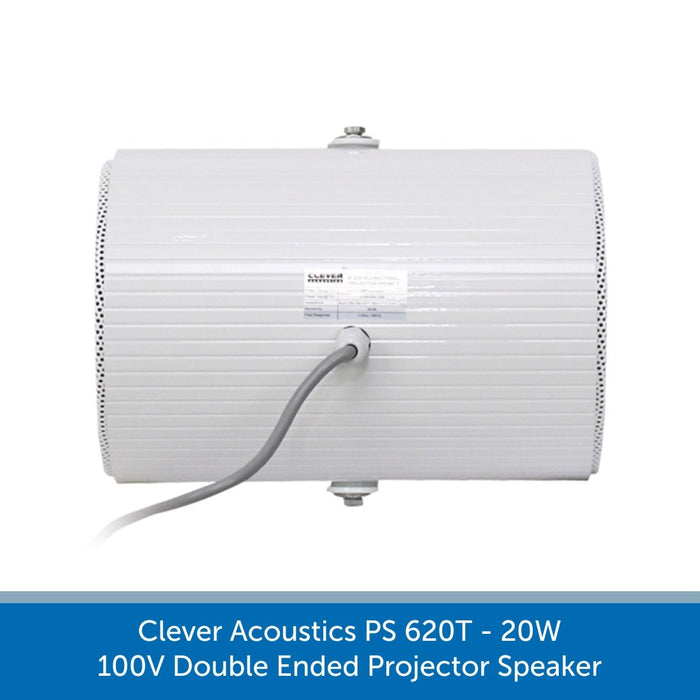

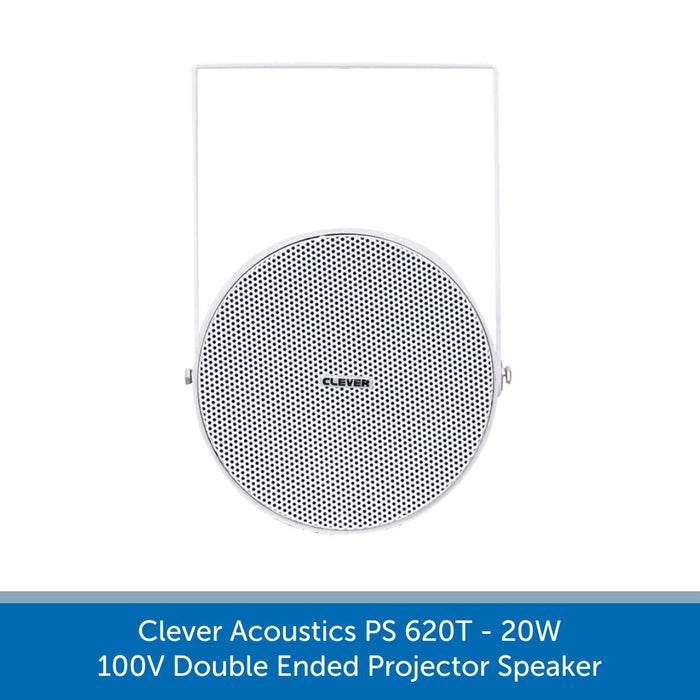

Clever Acoustics PS 620T 20W 100V Double Ended Projector Speaker
The Clever Acoustics PS 620T is a 20W 100V double ended projector horn speaker designed for background music & public address applications that require a bi-directional audio dispersion.
Our professional 100V projector speaker from Clever Acoustics is weather resistant IP44 rated suitable for both indoor and outdoor audio installations. It features a solid rugged construction with a stainless steel mounting bracket perfect for use all-year-round.
The Clever Acoustics PS 620T features 2 x 6" full range drivers that provide a wide bi-directional audio coverage ideal for school corridors, sports venues, market halls, and shopping centres, etc.
The PS 620T operates on 100V Line with multiple power tappings of 5W, 10W & 20W great for balancing it to almost any system.
For peace-of-mind, the Clever Acoustics PS 620T is supplied with a 3-year manufacturers warranty.
Clever Acoustics PS 620T Key Features
- 3-year warranty
- Internal 100V/70V transformer
- Multiple power taps
- 2 x 6" full range drivers
- Bidirectional dispersion, suitable for use in corridors
- Metal grille and aluminum enclosure
- Weather resistant construction suitable for outdoor installation in sheltered locations
- Supplied with adjustable mounting bracket
SPECS & DOWNLOADS
Clever Acoustics PS 620T Specifications
- Frequency response: 160Hz-15kHz
- Drivers: 2 x 6" full range
- Connections: Flying leads
- Dimensions: 248 x 172mmØ
- Weight: 3.3kg
- IP rating: IP44
- Input: 100V, 70V
- Power taps @ 100V: 5W, 10W, 20W
- Power taps @ 70V: 2.5W, 5W, 10W
- Impedance: 1K?, 2K?, 500?
- Sensitivity (1W/1m): 92dB (±3dB)
- Maximum SPL (Rated W/1m): 105dB
