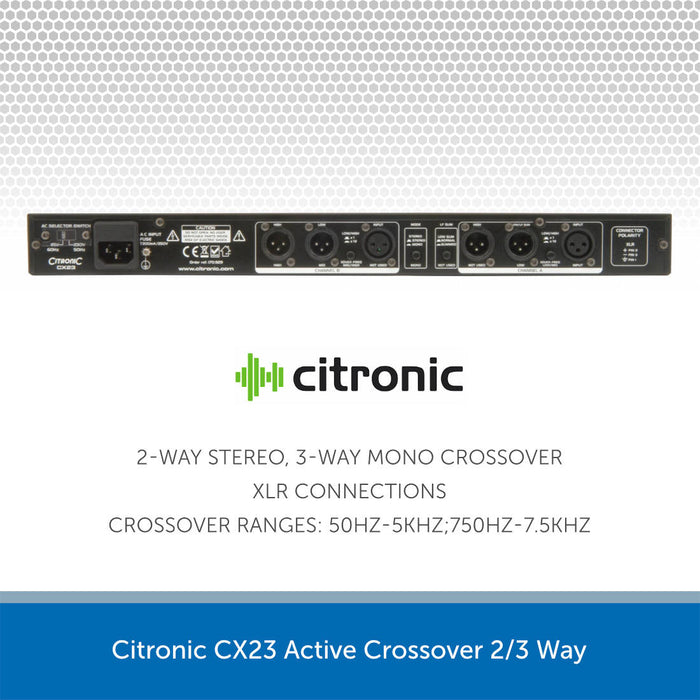

Citronic CX23 Active Crossover 2/3 Way

£69.00 (inc. VAT)
SKU 170.929

DETAILS

The Citronic CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs.

This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

Whilst primarily designed to deliver a more detailed sound, the Citronic CX23 also protects your equipment from overloading and avoids potentially blowing your mid/top speaker cabinets by sending the low frequencies just to the subs.

The Citronic active crossover offers a user-friendly operation easily accessible when installed in a 19" rack cabinet.

Key Features:

  • 2-way stereo, 3-way mono crossover
  • 19" rack-mountable
  • Butterworth filters - 18dB/octave
  • Continuously adjustable cutoff frequencies
  • 40Hz ultra-low frequency cut
  • Phase invert function
  • Inputs and outputs via XLR
SPECS & DOWNLOADS

Citronic CX23 Specifications

  • Power supply: 115/230Vac, 50/60Hz (IEC)
  • Input impedance : balanced: 40k ohms
  • Input impedance : unbalanced: 20k ohms
  • Output impedance: 220 ohms
  • Crossover ranges : stereo: 50Hz-5kHz;750Hz-7.5kHz
  • Crossover ranges : mono: 50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
  • Filter slope: 18dB/octave
  • Frequency response: 20Hz-25kHz +0/-1dB
  • Signal to noise ratio: >90dB
  • THD: 0.006%
  • Dimensions: 482 x 44 x 170mm
  • Weight: 2.5Kg

Citronic CX23 PDF Download

Download the User Manual HERE
