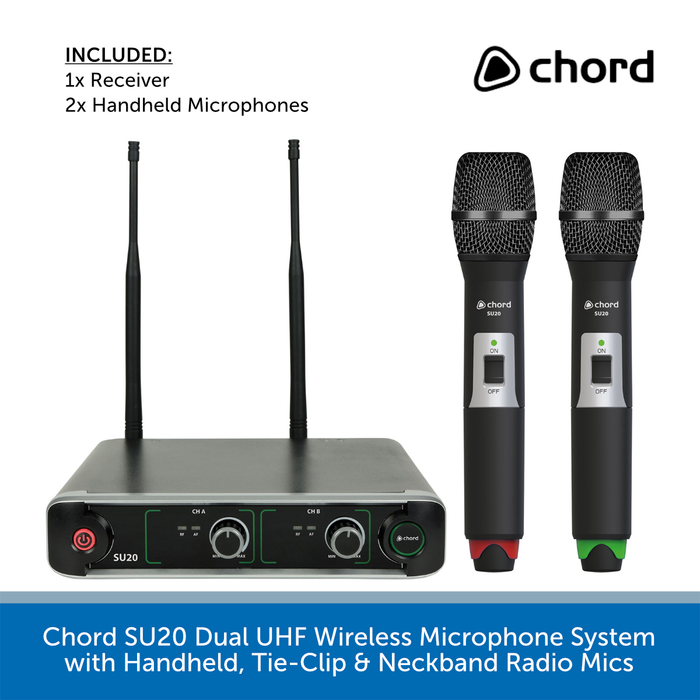

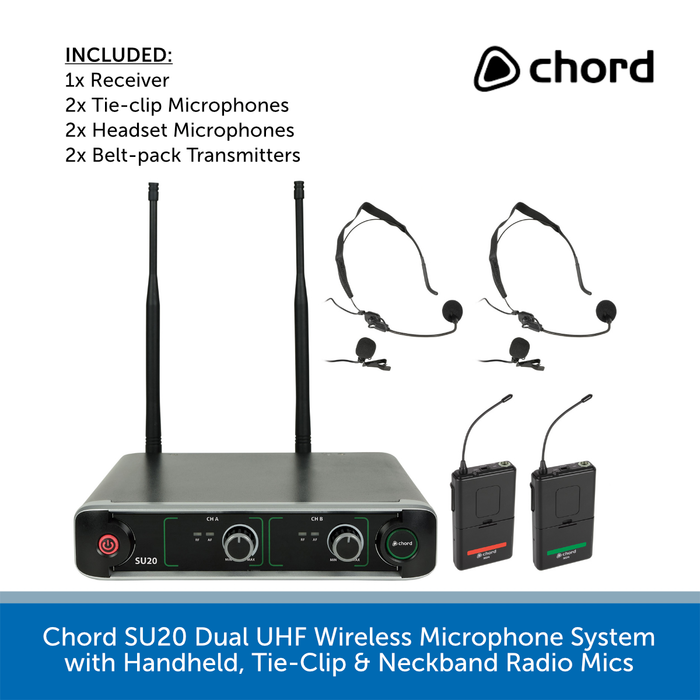

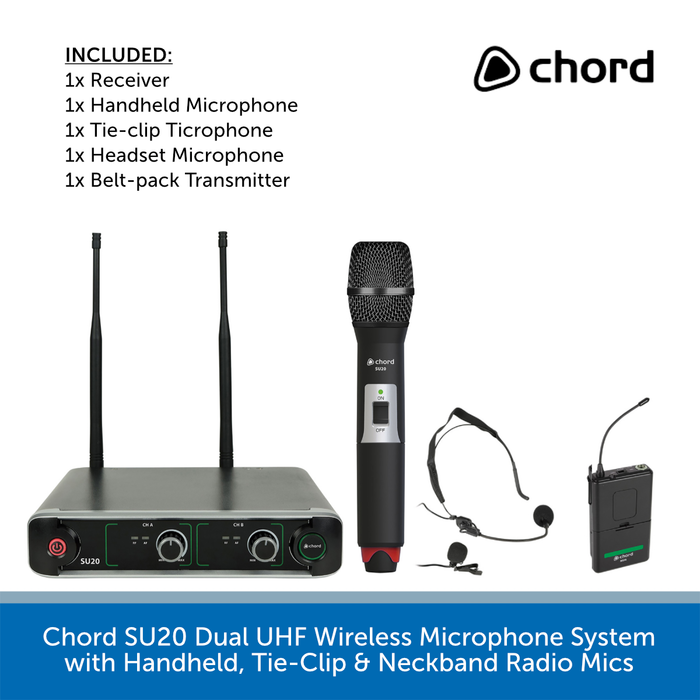

Chord SU20 Dual UHF Wireless Microphone System with Handheld, Tie-Clip & Neckband Radio Mics

£99.00 (inc. VAT)
SKU 171.907
Microphone Type

DETAILS

Chord SU20 compact dual UHF wireless microphone system with a choice of handheld, tie-clip & neckband radio mics.

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space.

BNC cables and detachable antennas are provided for rear or front mounting as required.

Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones.

Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket.

Providing all the functionality of a dual UHF system in a compact half-rack format.

Chord SU20 Key Features:

  • Up to 2 sets (4 microphones) can be used together
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Compact half-rack receiver
  • Front or rear mountable antennas
  • Supplied with power adaptor and 4 x AA batteries



SPECS & DOWNLOADS

Chord SU20 Specifications

  • Power supply: 14Vdc 350mA (adaptor supplied)
  • Antenna connection: BNC
  • Batteries: 4 x AA (2 per transmitter) included
  • Range: 60m
  • Microphone : polar pattern: Cardioid (handheld, neckband or lavalier)
  • Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
  • Output impedance: 2.2k Ohms
  • Output level: 400mV (balanced), 200mV (unbalanced)
  • Frequency response: 50Hz - 18kHz (±3dB)
  • S/N ratio: >80dB
  • THD: <0.5% @ 1kHz
  • Dimensions : receiver: 203 x 187 x 42mm
  • Weight : receiver: 845g

Chord SU20 - PDF Downloads

Download the User Manual HERE
