Chord NU20 UHF Wireless Mic System | Choose x 2 Handheld or Lavalier / Neckband Radio Mics

by Chord
Original price £85.00 (inc. VAT) - Original price £85.00 (inc. VAT)
Original price £85.00 (inc. VAT)
£85.00 (inc. VAT)
£85.00 (inc. VAT) - £85.00 (inc. VAT)
Current price £85.00 (inc. VAT)
SKU 171.924
Choose your Microphone Type: x 2 Handheld Mic's
DETAILS

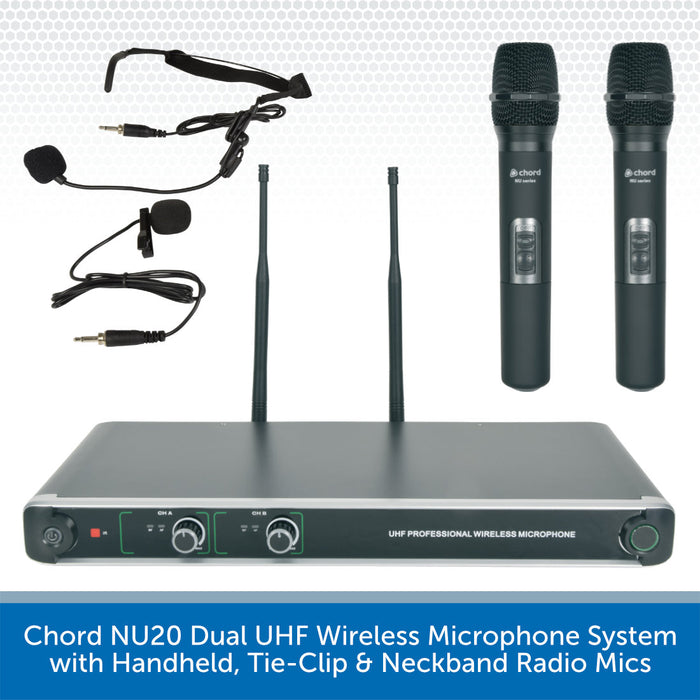

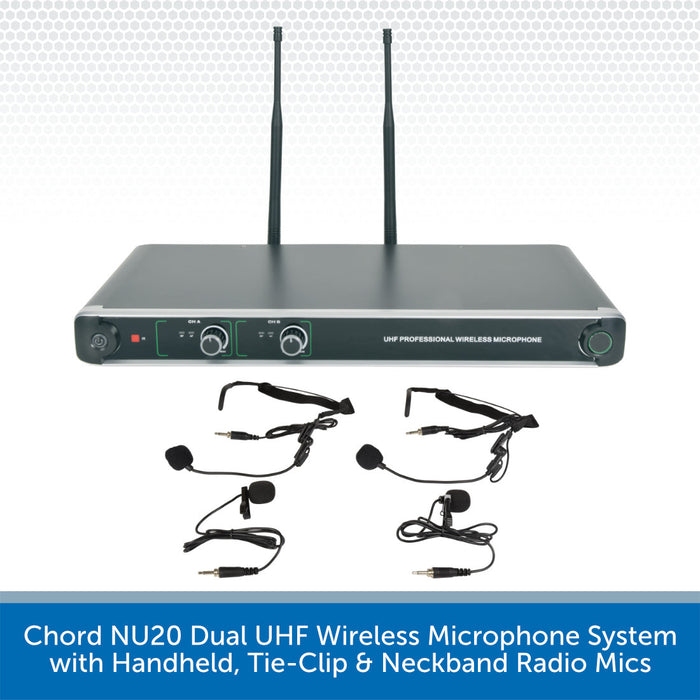

Chord NU20 dual UHF wireless microphone system with a choice of x 2 handheld mic's or x 2 lavalier lapel & neckband radio mic's

Dual UHF wireless microphone system with a 19" rack-mount receiver, supplied with rack ears

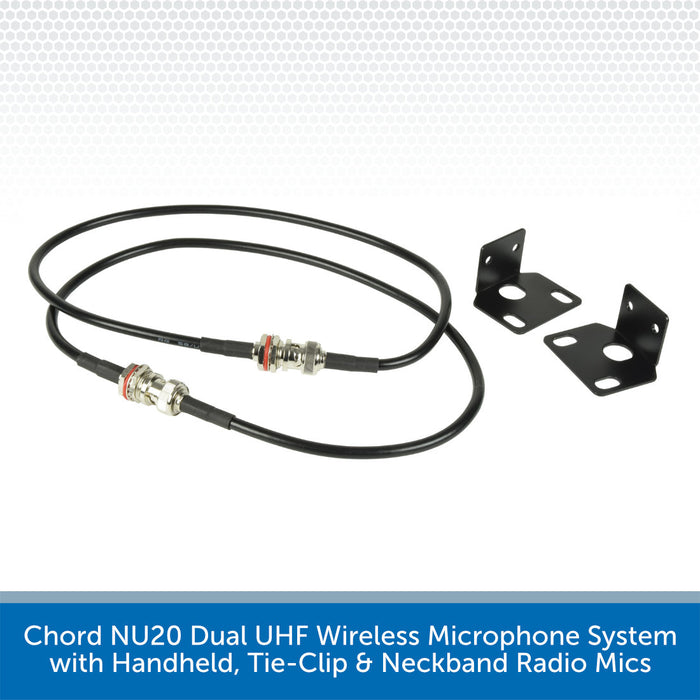

BNC cables and detachable antennas are provided for rear mounting.

Each transmitter is powered by 2 x AA batteries and the belt pack version is supplied with both neckband and lavalier microphones.

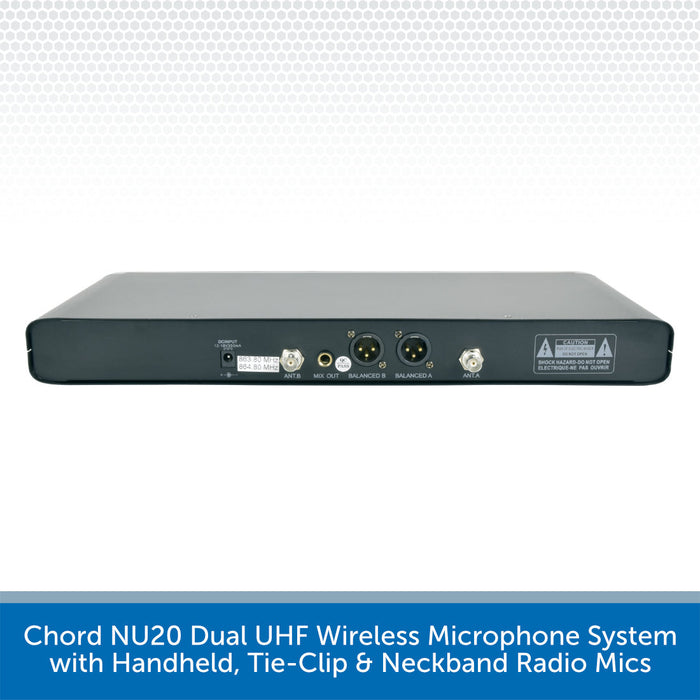

Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket.

Chord NU20 Key Features:

  • 19" Rack Mountable
  • Available in handheld or beltpack versions with 2 carrier frequency options
  • Compact half-rack receiver
  • Front or rear mountable antennas
  • Supplied with power adaptor and 4 x AA batteries
SPECS & DOWNLOADS

Chord NU20 Specifications

  • Power supply: 14Vdc 350mA (adaptor included)
  • Carrier frequencies: 863.8MHz + 864.8MHz
  • Wireless range: Up to 60m
  • Batteries: 4 x AA (2 per transmitter)
  • S/N ratio: >80dB
  • THD: <0.5% @ 1kHz
  • Output impedance: 2.2k Ohms
  • Output level: 400mV (balanced), 200mV (unbalanced)
  • Frequency response: ±3dB 50Hz-18KHz
  • Dimensions (receiver): 409 x 190 x 44mm
  • Weight (receiver): 1.37kg

Chord NU20 - PDF Downloads

Download the User Manual HERE

}
