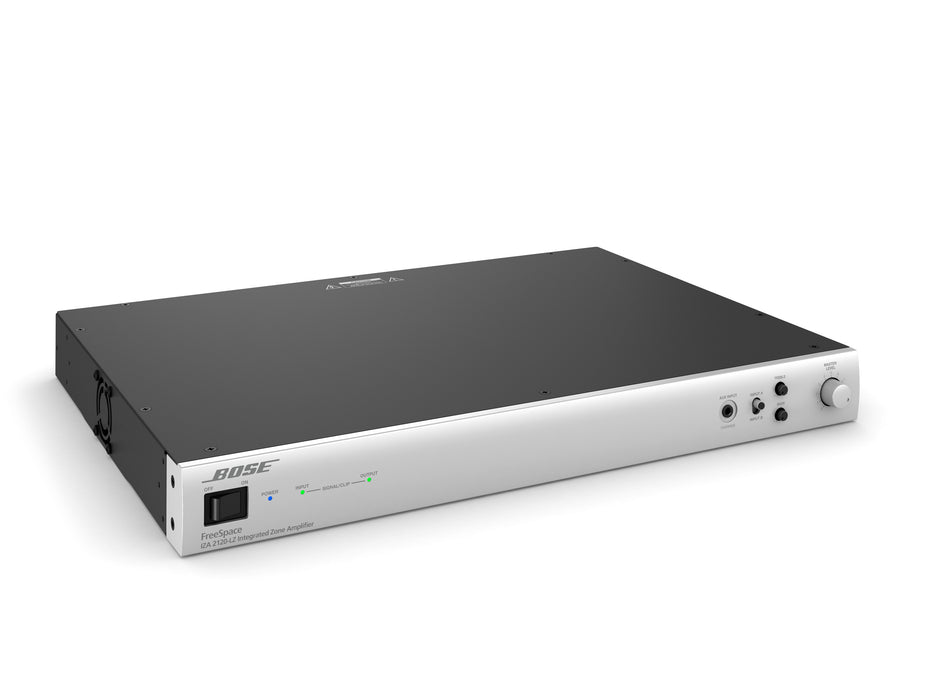

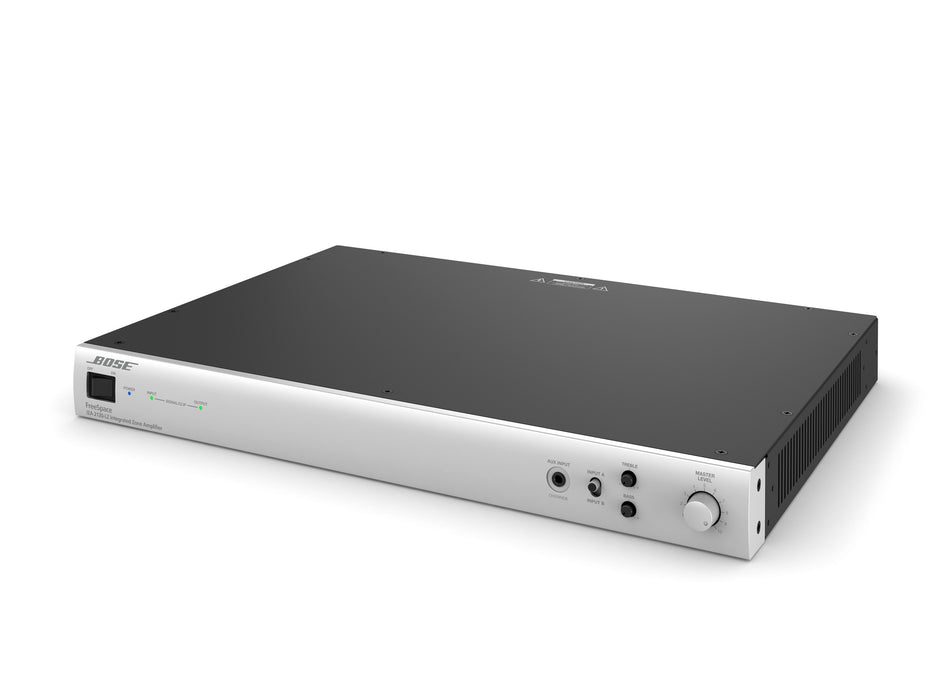

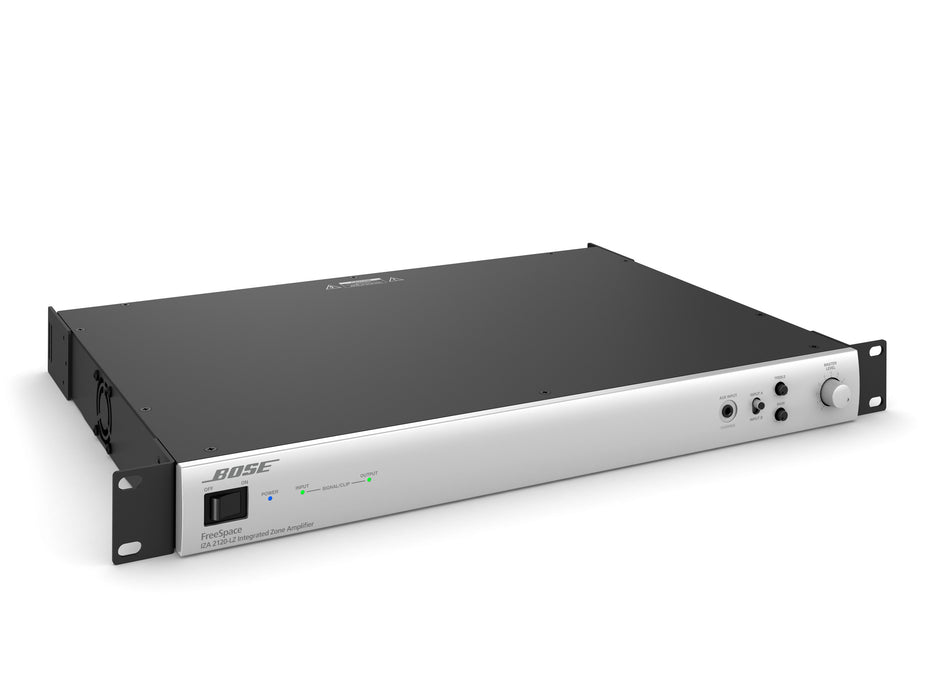

Bose FreeSpace IZA 2120-LZ 2x120W 2-Zone Integrated Amplifier, 4/8 Ohms Operation
BLACK FRIDAY - Use code BF10 at checkout
Save an EXTRA 10% sitewide, including Sale items!
DETAILS
The Bose FreeSpace IZA 2120-LZ is designed to elevate audio performance in commercial environments such as retail stores, restaurants, and conference centres.
Its robust 2x120W Class-D amplifier supports low-impedance 4/8 Ohm operation, providing powerful sound for background and foreground music, as well as paging applications.
This versatile amplifier features selectable Loudspeaker EQ to enhance audio quality, especially when used with Bose FreeSpace or DesignMax loudspeakers. Dynamic EQ ensures well-balanced sound at any volume, while the integrated Opti-Voice® paging system delivers seamless transitions between music and clear voice announcements, making it ideal for venues requiring both.
Setting up the IZA 2120-LZ is quick and intuitive, with no need for additional software. Front panel controls allow for easy tone adjustments, input selection, and volume control, and an optional remote extends these functions to a wall-mounted control panel for added convenience.
Bose FreeSpace IZA 2120-LZ Key Features:
- 120W Class-D Amplifier: Provides two 120W channels at 4Ω or 60W per channel at 8Ω, delivering reliable, high-performance sound.
- Dynamic EQ: Ensures full and balanced music playback at all volume levels.
- Opti-Voice® Paging: Enables smooth transitions between music and paging for clear, intelligible announcements.
- Loudspeaker EQ: Optimizes performance with Bose loudspeakers, including FreeSpace FS2, FS4, and DesignMax models.
- User-Friendly Interface: Simple front-panel controls for source selection, treble, bass, and volume adjustments. Optional wall-mounted control for extended convenience.
- Low-Impedance Operation: Optimized for 4/8 Ohm systems, perfect for commercial environments requiring high-quality sound.
Flexible Audio Solutions for Commercial Spaces
The Bose FreeSpace IZA 2120-LZ offers an all-in-one solution for venues needing a flexible, easy-to-use amplifier for music and paging. Its dependable performance and versatile control options make it ideal for any commercial space.
SPECS & DOWNLOADS
Bose FreeSpace IZA 2120-LZ PDF Spec Sheet > DOWNLOAD HERE
Bose FreeSpace IZA 2120-LZ Specifications
Amplification:
-
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
-
Dynamic Range: 88 dB
-
Frequency Response: 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference
-
Number of Channels: 2
-
Power Class: Class D
-
Rated Power, Symmetrical: 120 W per channel at 4 Ω / 60 W per channel at 8 Ω
-
THD+N: ≤ 0.5% at rated power
Audio Inputs:
-
Adjustment Range: 0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary
-
Channels: 2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
-
Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
-
Input Impedance: 20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
-
Input Range: -8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary
-
Maximum Input Level: 22 dBu, line / 12 dBu, page / -1 dBu, auxiliary
-
Nominal Input Level: 4 dBu, line / -38 dBu, page / -8 dBu, auxiliary
-
Sensitivity: -8 dBu, line / -3 dBu, auxiliary / N/A, page
Audio Outputs:
-
Channels: 2
-
Connectors: (2) 2-pin inverted Euroblock, (1) RCA stereo pair
-
Output Impedance: 4 Ω / 150 Ω (auxiliary)
Electrical:
-
Current Draw, Inrush: 6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz
-
Mains Connector: IEC C14 inlet
-
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
-
Protections: High temperature, output short circuit, excessively low/high AC line voltage
-
Power Consumption: 24 W standby, 300 W maximum
Indicators and Controls:
-

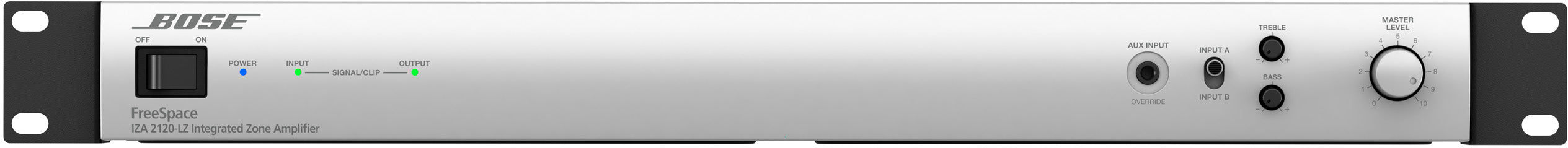

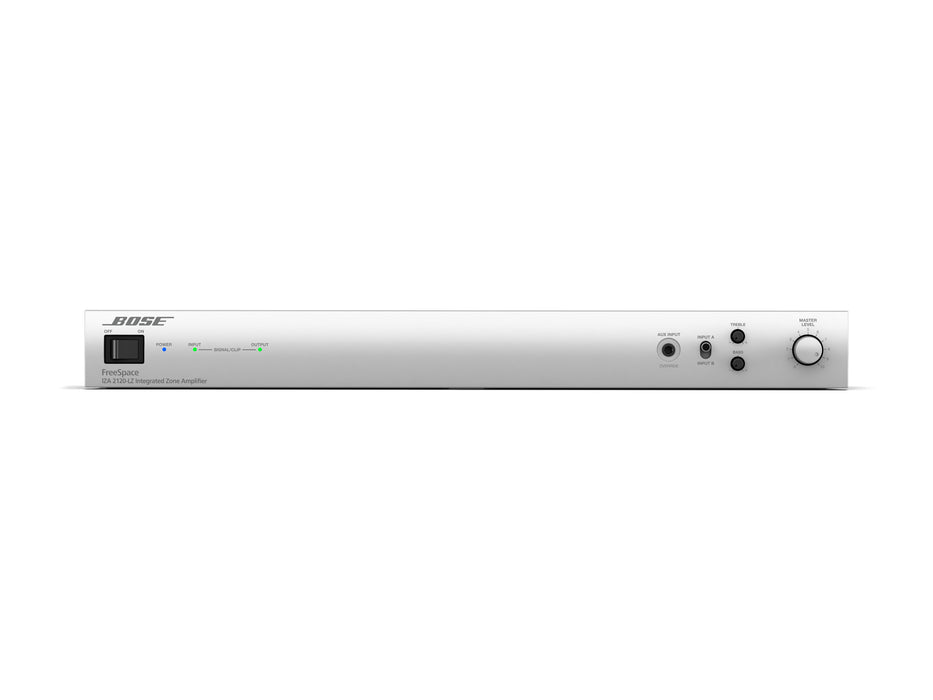

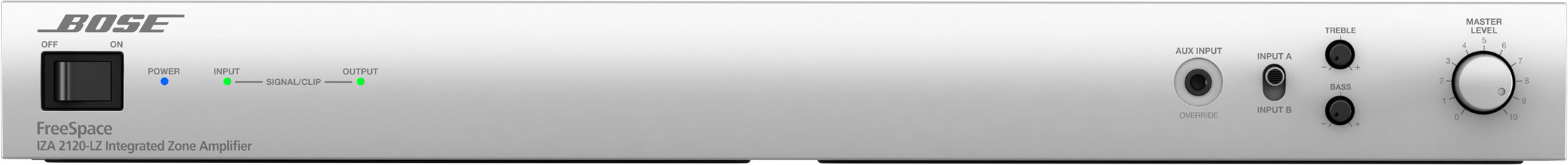

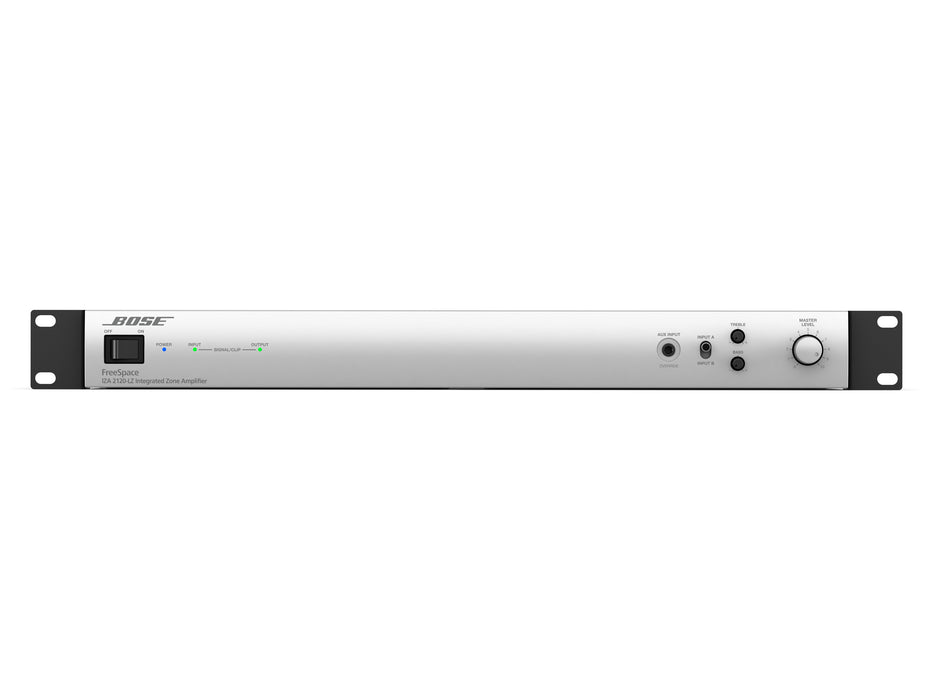

Controls, Front Panel: (1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob
-

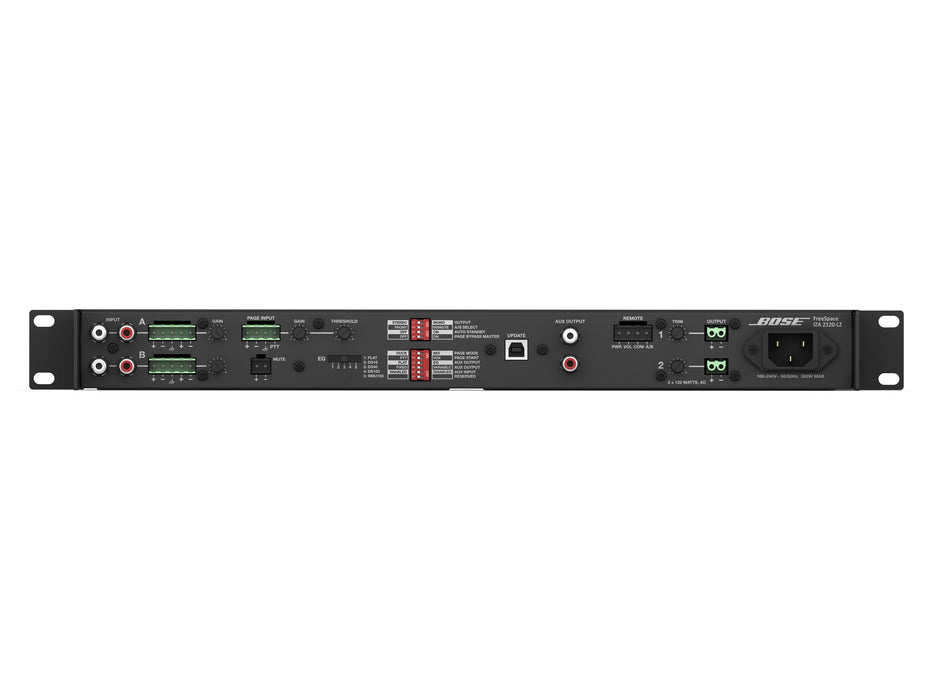

Controls, Rear Panel: Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2)
-
LED Status Indicators: (1) power LED, (1) input signal/clip LED, (1) output signal/clip LED
Integrated DSP:
-
A/D and D/A Conversion: 48 kHz / 24-bit
-
Audio Latency: 10.4 ms (analog input to analog output)
-
Presets: High-pass filter, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE, FreeSpace 3 Acoustimass & DesignMax DM2C-LP/DM2S/DM3C/DM3SE)
-
Processing Functions: Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
Physical:
-
Cooling System: Single fan creates continuous left-to-right air flow
-
Net Weight: 9.0 lb (4.1 kg)
-
Product Dimensions (H×W×D): 1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm)
-
Rack Spaces: 1 RU
