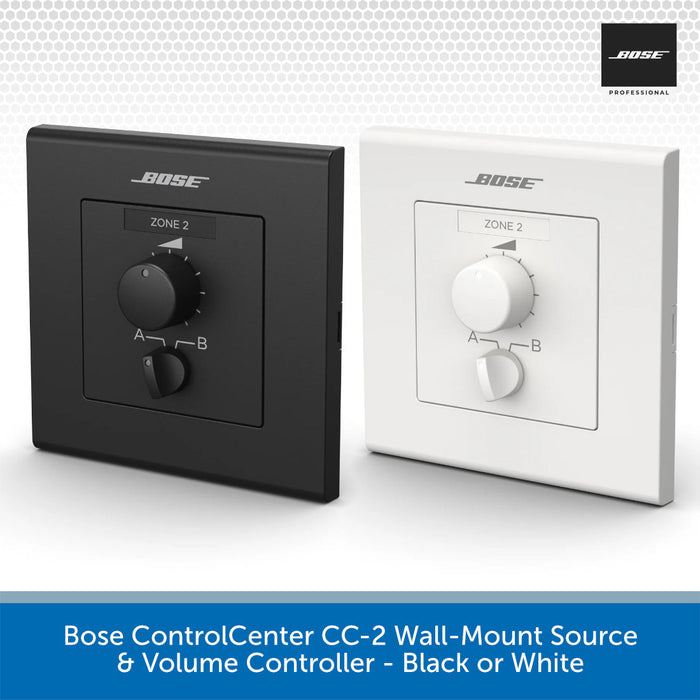

Bose ControlCenter CC-2 Wall-Mount Source & Volume Controller for FreeSpace Amplifiers - Black or White
DETAILS
The Bose Professional ControlCenter CC-2 zone controller is designed to provide both volume control and A/B source selection for FreeSpace and ControlSpace products.
Ideal for various commercial settings like retail stores, restaurants, and hospitality venues, the CC-2 enhances audio management with user-friendly features.
The ControlCenter series includes three models tailored for specific needs: the CC-1 for volume control, the CC-2 for volume plus A/B source selection, and the CC-3 for volume plus A/B/C/D source selection. Available in black or white, the CC-2 fits standard 1-gang electrical boxes across North America, Europe, and Japan.
Each CC-2 controller comes with a sheet of pre-printed labels for easy identification of sources, along with two blank labels for customization. Designed for durability and ease of installation, the CC-2 is perfect for applications requiring straightforward audio control.
Bose ControlCenter CC-2 Key Features:
- Volume And A/B Source Selection: Seamlessly switch between two audio sources while managing volume levels.
- Compatible Design: Fits 1-gang electrical boxes in North America, Europe, and Japan, available in black or white.
- Custom Labels: Includes pre-printed and blank labels for easy identification and personalization.
- Electrical Specifications: Utilizes RJ-45 connectors and is compatible with Cat 5 cables, allowing for maximum cable lengths of up to 2000 ft.
Flexible Audio Control for Any Environment
The Bose ControlCenter CC-2 is a reliable solution for audio management in diverse commercial spaces, offering the functionality needed for effective sound control.
SPECS & DOWNLOADS
Bose ControlCenter CC-2 PDF Spec Sheet > DOWNLOAD HERE
Bose ControlCenter CC-2 Specifications
Electrical:
-

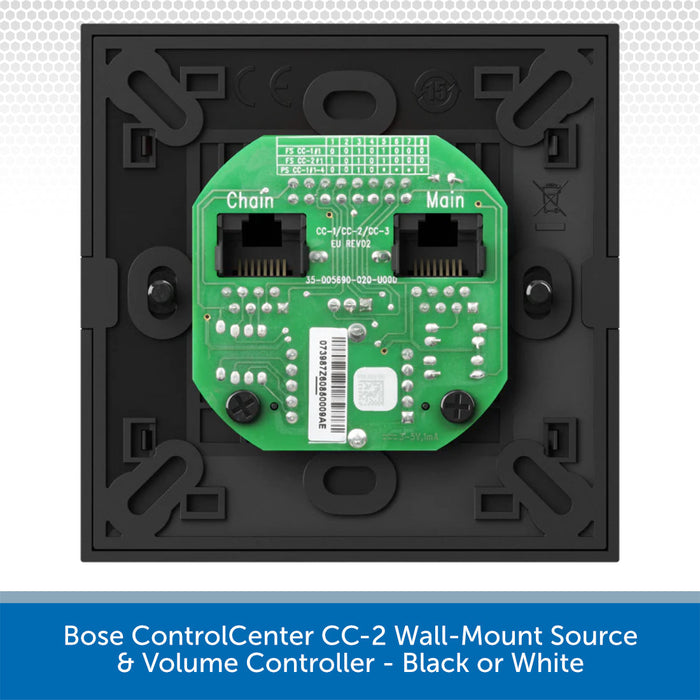

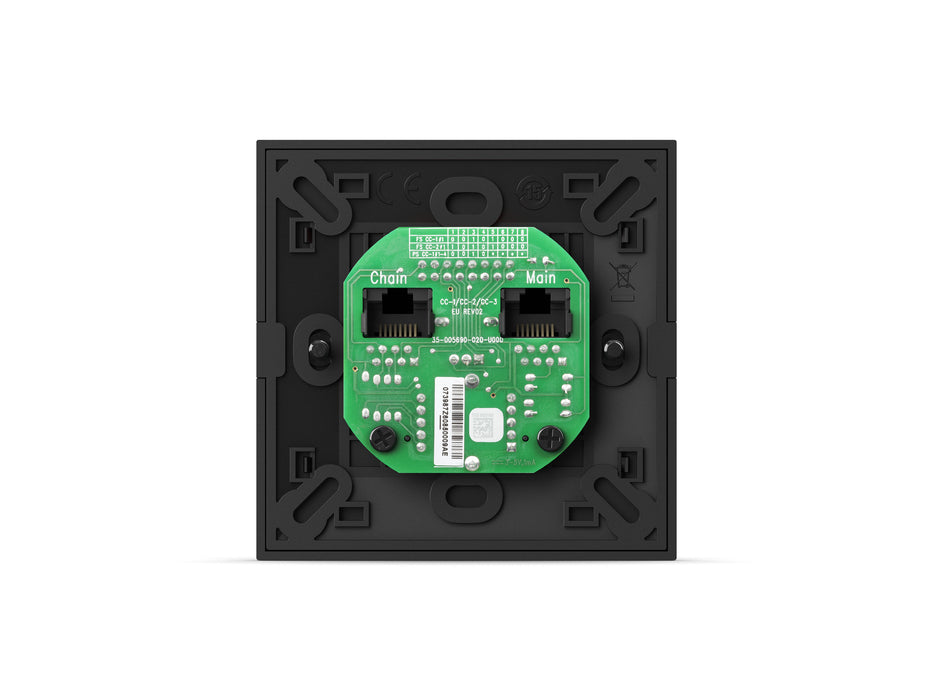

Connectors: (2) RJ-45, TIA/EIA 568B wiring standard
-
Cable Requirements: Cat 5
-
Maximum Cable Length: 2000 ft (609 m) to FreeSpace or PowerShare amplifiers / 500 ft (152 m) shielded, 100 ft (30 m) unshielded to ControlSpace processors
-
Maximum Controller Quantity: 2 per ControlSpace processor
General:
-
Compatible with: ControlSpace ESP-880A, FreeSpace IZA 190-HZ, FreeSpace IZA 250-LZ, FreeSpace IZA 2120-HZ, FreeSpace IZA 2120-LZ
Indicators and Controls:
-

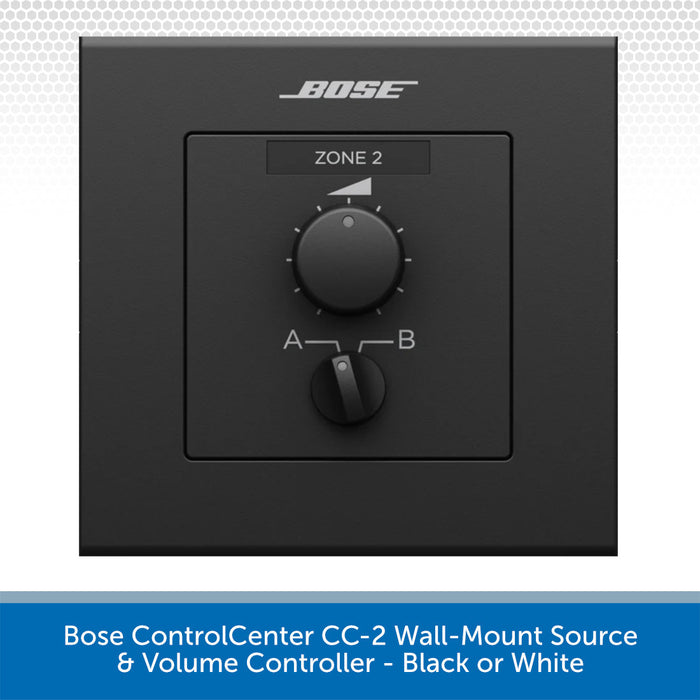

Controls, Front Panel: (1) volume knob, (1) source selection knob
Physical:
-
Colours: Black, white
-
Mounting/Rigging Provisions: 1-gang electrical box (North America, Europe, Japan)
-
Product Dimensions (H×W×D): 4.1 in × 1.5 in × 1.5 in (105 mm × 38 mm × 38 mm), North America / 3.4 in × 3.4 in × 1.5 in (86 mm × 86 mm × 38 mm), Europe / 4.3 in × 1.7 in × 1.5 in (110 mm × 42 mm × 39 mm), Japan
