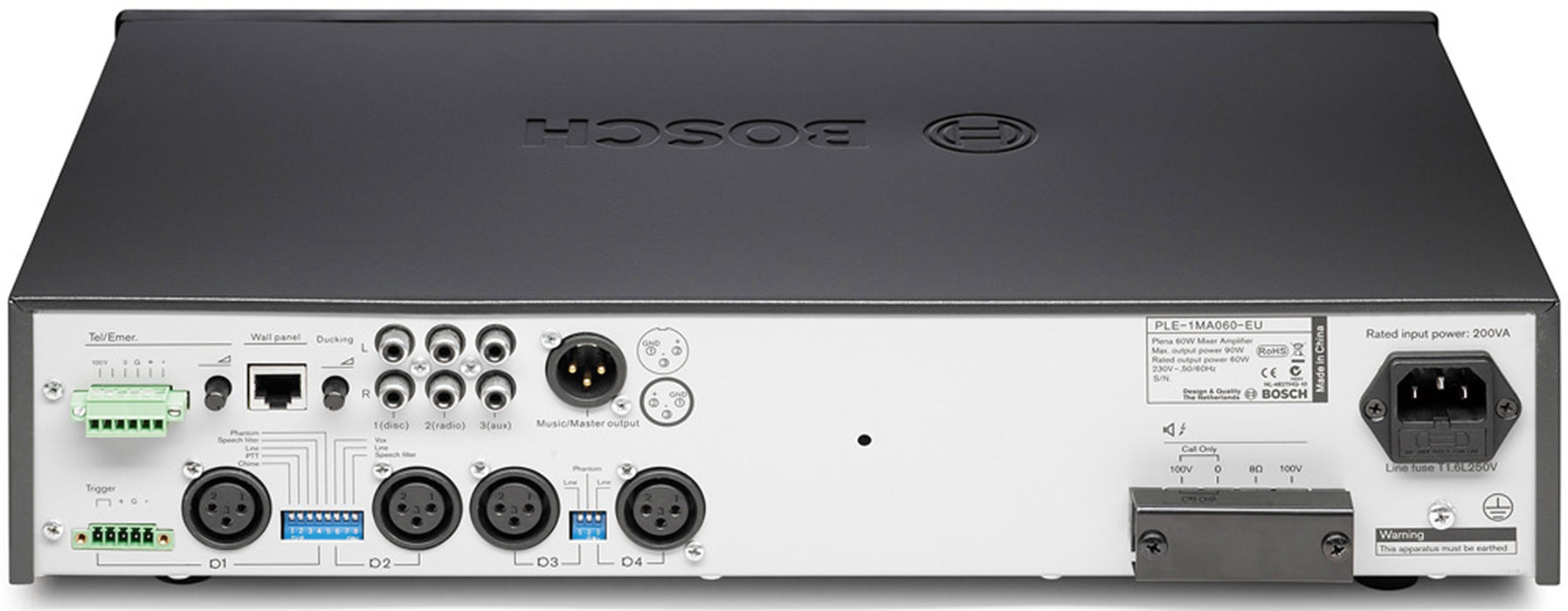

Bosch Plena PLE-1MA060 60W Public Address Mixer Amplifier, 100V / 8 Ohms
DETAILS
The Bosch Plena PLE-1MA060 is a 60-watt public address mixer amplifier, designed for both 100-volt line and 8-ohm sound systems.
Ideal for medium to large commercial environments, this versatile amplifier delivers high-quality sound for paging, background music, and emergency announcements.
With Bosch's reputation for durability and performance, it’s a dependable choice for a wide range of audio installations.
Bosch Plena PLE-1MA060 Key Features:
-
60-Watt Output Power
The Bosch PLE-1MA060 offers 60 watts of power, making it suitable for larger areas that require comprehensive sound coverage. Whether paired with 100V line loudspeakers or 8-ohm systems, this amplifier ensures powerful, clear audio for both background music and spoken announcements. -
Flexible Input Options
Equipped with 4 balanced microphone/line inputs featuring low noise and phantom power, the PLE-1MA060 guarantees superior audio clarity for speech and music. In addition, it includes 3 line inputs for connecting music players and other audio devices, as well as a 100V input and a telephone input, both with priority capabilities. This extensive range of input options makes it suitable for a variety of audio sources and paging systems. -
Priority Paging and Emergency Override
The PLE-1MA060 comes with essential features such as priority paging and voice-activated emergency override, allowing critical messages to cut through background music when needed. These functions are ideal for installations where clear communication is essential in emergencies, ensuring that important announcements are heard across the venue. -
Smart Equalizing and Sound Clarity
Bosch’s smart equalizing system enhances both speech and music playback, ensuring that sound remains crisp and clear. Built-in limiters protect against audio distortion, maintaining clarity even at higher volumes. An LED VU meter allows easy monitoring of audio levels to ensure optimal sound output. -
Ease of Use
Designed for simplicity, the PLE-1MA060 includes features that make installation and operation straightforward. Zone labels and setting indicators are included, allowing installers to mark the volume and tone controls for quick identification of optimal settings. This ensures that non-technical users can operate the system with confidence. The built-in chime adds another layer of functionality, making it easy to attract attention for announcements. -
Flexible Installation and Power Options
The amplifier comes with 19" rack-mount brackets, making it easy to integrate into professional AV racks. It can operate on both AC power and 24V DC, allowing for backup power support in the event of an emergency. This flexibility makes the PLE-1MA060 a reliable choice for a range of commercial and industrial settings. -
Reliable and Built to Last
As with all Bosch products, the PLE-1MA060 is built to high standards and includes a 3-year warranty, ensuring it will provide years of reliable performance. Its robust construction and compliance with international safety and installation standards make it an excellent investment for any commercial audio system.
Bosch Plena PLE-1MA060 Applications:
The Bosch PLE-1MA060 is ideal for environments where clear, powerful sound and ease of use are essential, including:
- Large retail spaces and shopping centres
- Corporate offices and conference rooms
- Schools, universities, and educational institutions
- Healthcare facilities and hospitals
- Transportation hubs such as airports and train stations
- Hotels, restaurants, and hospitality venues
SPECS AND DOWNLOADS
Download the Bosch Plena PLE-1MA060 PDF Spec Sheet HERE >
Bosch Plena PLE-1MA060 Mixer Amplifier Specifications
Mains power supply:
- Voltage: 230 VAC ±10%, 50/60 Hz (reduced power at lower mains or battery voltage)
- Inrush current: 5A
- Power consumption: 200 VA
Performance:
- Frequency response: 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output)
- Distortion: <1% @ rated output power, 1 kHz
- Bass Control: Max -12/+12 dB (frequency is setting dependent)
- Treble Control: Max -12/+12 dB (frequency is setting dependent)
- RJ-45 input: 1 x
- Wall panel input: For PLE‑WP3S2Z
- Mic / Line Input: 4 x
- Music input: 3 x
- Emergency / telephone: 1 x
- Master/music output: 1 x
- Loudspeaker output 100 V: Euro style pluggable screw terminal, floating
- Max / rated PLE-1MA030: 90 W / 60 W
- Loudspeaker output 4 ohm: 300kohm
- Connector: Euro style pluggable screw terminal, floating
- PLE-1MA030-EU: 16 V (60 W)
Physical:
- Dimensions (H x W x D): 100 x 430 x 270 mm (19" wide, 2U high)
- Mounting: Stand-alone, 19" rack
- Colour: Charcoal
- Weight: Approx. 8.5 kg
