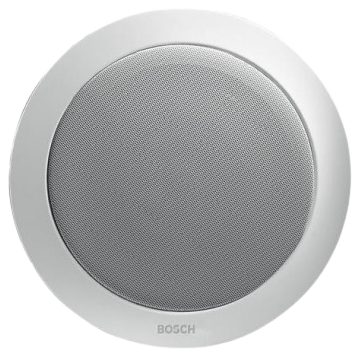

Bosch LBC3086/41 6W 100V Voice EVAC Ceiling Speaker with Fire Dome
DETAILS
The Bosch LBC3086/41 is a high-performance dual-cone ceiling loudspeaker designed for voice alarm systems and emergency paging applications.
Rated at 6 watts and operating on a 100-volt line, this speaker ensures clear audio reproduction in both speech and music, making it an ideal choice for commercial and public settings where reliable communication is essential.
Bosch LBC3086/41 Key Features:
- Voice Alarm Capability: Specifically engineered for use as a voice alarm loudspeaker when paired with the LBC3081/02 firedome, enhancing safety and system integrity.
- Built-in Protection: Features such as ceramic terminal blocks, a thermal fuse, and heat-resistant wiring provide added safety. In the event of a fire, these protective elements ensure that damage to the loudspeaker does not compromise the circuit, allowing other loudspeakers in the system to remain operational.
- Regulatory Compliance: Fully compliant with EN54-24 for emergency paging systems, the LBC3086/41 meets international installation and safety regulations, including BS 5839-8 standards when used with the firedome.
- Easy Installation: Designed for flush mounting within ceiling cavities, the speaker offers a streamlined look while ensuring ease of installation and maintenance.
- Simple Power Setting: The speaker features an intuitive power setting mechanism, allowing for quick adjustments to meet the specific requirements of your installation.
The Bosch LBC3086/41 is suitable for a variety of environments including retail stores, office buildings, educational institutions, airports, train stations, and cultural venues like theaters and concert halls, ensuring effective announcements in any situation. Finished in a neutral white (RAL9010), it seamlessly integrates into any ceiling design, maintaining aesthetic appeal without sacrificing functionality. The product comes with a 3-year warranty, underscoring Bosch's commitment to quality and customer satisfaction.
For reliable voice alarm communication and exceptional audio performance, the Bosch LBC3086/41 6W 100V Voice EVAC Ceiling Speaker with Firedome is an outstanding choice, combining advanced safety features with easy installation.
SPECS AND DOWNLOADS
Download the Bosch LBC3086/41 PDF Spec Sheet HERE >
Bosch LBC3086/41 Ceiling Speaker Specifications
- Maximum Power: 9 W
- Rated Power: 6 W (6-3-1.5-0.75 W)
- Sound Pressure Level at Rated Power / 1W (at 1 kHz, 1 m): 98 dB / 90 dB (SPL)
- Effective Frequency Range (-10 dB): 90 Hz to 20 kHz
- Opening Angle (at 1 kHz / 4 kHz, - 6 dB): 180° / 50°
- Rated Input Voltage: 100 V
- Rated Impedance: 1667 ohm
- Connection: 3-pole push-in terminal block
- Diameter: 216 mm (8.5 in)
- Maximum depth: 70mm (2.8 in)
- Mounting cut-out: 196 mm (7.7 in)
- Weight: 1.3 kg (2.86 lb)
- Colour: Off white (RAL 9010)
- Magnet Weight: 150g (5.3oz)
