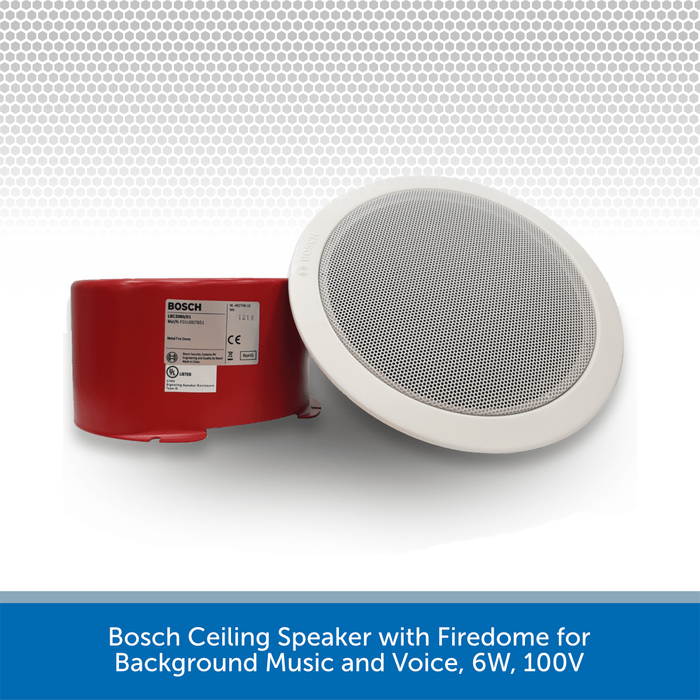

Bosch Ceiling Speaker with Firedome for Background Music and Voice, 6W, 100V

by Bosch
£26.99 (inc. VAT)
SKU BOSCH-SPK-DOME
DETAILS

The Bosch LHM 0606/10 6-Inch Background Music Ceiling Speaker with Firedome is designed for fitting into ceilings where there is more than one floor and building regulations require a fire hood to meet BS fire regulations.

The Bosch LHM0606/10 is a great choice for any venue looking to add background music or announcement capabilities. This 6-inch flush-mounted speaker is incredibly easy to install and is very discrete and unobtrusive, making it especially handy for building with low ceilings or a lot of wall-decorations.

The supplied Bosch Firedome is primarily for fire protection but also offers some acoustic properties and stops a certain amount of sound from travelling upwards.

The high-quality metal Fire Hood is quick and easy to install and is fixed into place by screws.

Complies with international installation and safety regulations EN60065

Bosch LHM0606/10 with Firedome Main Features:

  • Discrete and unobtrusive

  • Multiple 100V Line tappings

  • Optional fire dome available

  • Cost-effective yet great-sounding

  • Quick and easy to install

  • Fully CE Approved

  • Flush-mounting in a ceiling cavity

  • Complies with international installation and safety regulations EN60065

      Bosch brand logo

      See SPECIFICATION tab for technical specs

      SPECS & DOWNLOADS

      BOSCH LHM0606/10 Ceiling Speaker Specifications

      • Transformer Power Tappings:  6W, 3W, 1.5W
      • Frequency Response Min:  80Hz
      • Frequency Response Max:  18kHz
      • External Width:  199mm
      • External Depth:  70.5mm
      • Loudspeaker Diameter:  6 "
      • Behind Panel Depth:  54.5 mm
      • Sound Level SPL:  94 dB
      • Panel Cutout Diameter:  165 mm
      • Operating Temperature Min:  -25 °C
      • Input Voltage:  100 V
      • Power Max:  9 W
      • Colour:  White
      • Power Rating RMS:  6 W
      • Weight:  620 g
      • Operating Temperature Max:  55 °C

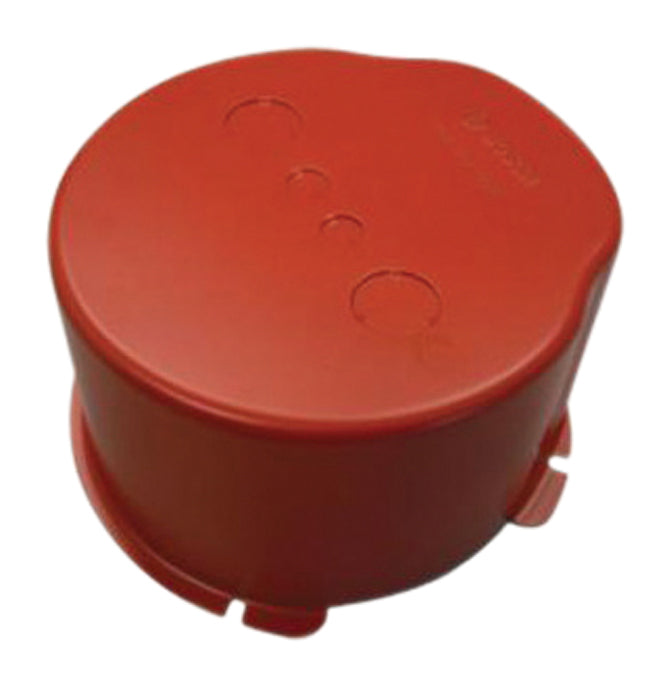

      Bosch LBC3080/01 Fire Hood Specifications

      • Colour: Flame Red
      • External Depth: 87mm
      • External Diameter: 147mm
      • Weight: 360g

      BOSCH LHM0606/10 Ceiling Speaker - PDF File Downloads

      Download the Data Sheet HERE

      Download the Declaration of Conformity HERE

      Bosch LBC3080/01 Fire Hood - PDF File Downloads

      Download the Data Sheet HERE
