FBQ800KIT - Sound Enhancer for Adastra A6 & A8 Amplifiers

£69.00 (inc. VAT)
SKU FBQ800-KIT-1
Multi-Pack

DETAILS



Enhance the sound of your Adastra A6 & A8 Stereo Amplifier, Our compact 9 band EQ enables you to add more bass and have extensive adjustment over the mid-range and treble resulting in a high quality full range sound.

This kit includes all the cables you need to connect the 9 band EQ and your smart device to your Adastra A6 or A8 amplifier.

 What's Included?

  • 1x Behringer FBQ800 EQ Control
  • 1x 3.5mm Jack to RCA AUX Cable, 1.2m (audio device to FBQ800)
  • 1x RCA to RCA Cable, 1.2m (FBQ800 to Amplifier)
  • 1x UK Power Supply

See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

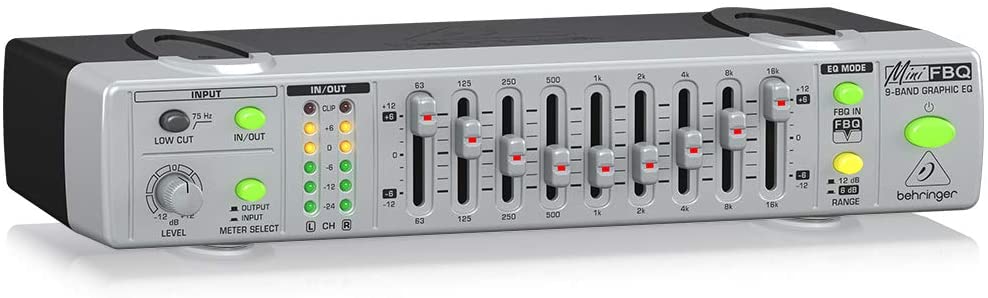

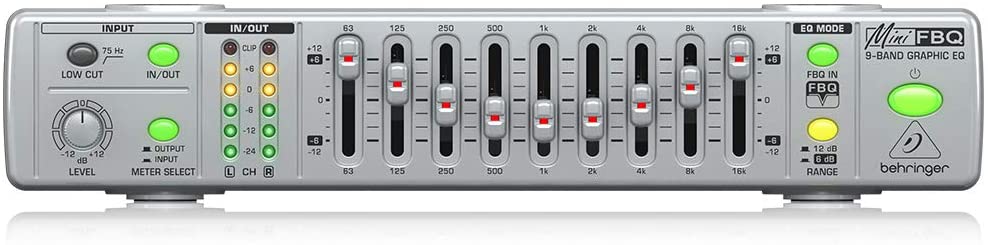

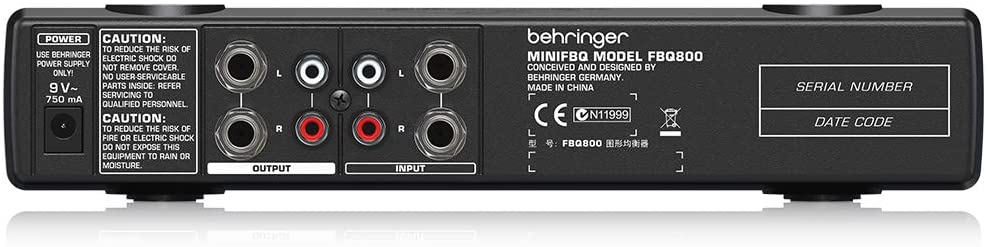

Behringer FBQ800

Inputs:

  • Type: 1/4'' TRS (balanced) or RCA (unbalanced)
  • Impedance: Approx. 20 k Ohms balanced, Approx. 10 k Ohms unbalanced
  • CMRR: 40dB typ. at 1kHz
  • Max. Input Level: +15dBu

Outputs:

  • Type: 1/4'' TS (unbalanced) or RCA (unbalanced)
  • Impedance: Approx. 120 Ohms
  • Max. Output Level: +15dBu

General:

  • Frequency Response: 10Hz to 200kHz, -3dB
  • Dynamic Range: 110dB, 10Hz to 22kHz
  • Distortion: 0.003-percent typ. at 0dBu
  • Crosstalk: Less than 80dBu at 1kHz
  • Signal-to-Noise Ratio: 10Hz to 22kHz, less than 95dB at 0dBu, A-weighted
  • Graphic EQ Type: 9 analog stereo bands
  • Control Range: +/-6dB or +/-12dB, switchable
  • Bandwidth: 1 oct.
  • Low-Cut Filter: 75Hz (12dB/oct.)
  • Input Level Control: -12dB to +12dB
  • Mains Connection: External power supply, 9V / 750mA
  • Mains Voltage: 240V, 50Hz
  • Power Consumption: Approx. 7.0W
  • Dimensions: Approx. 48mm x 243mm x 120mm / Approx. 1-8/9'' x 9-5/9'' x 4-5/7'' (H x W x D)
  • Weight: Approx. 0.39kg / Approx. 0.86lbs
  • Product Code: FBQ800

Behringer FBQ800 - PDF Downloads

Download the User Manual Here
