AUDAC CAP412 - 4 x 120W Quad Class-D Power Amplifier, 100V or 4 Ohm

by AUDAC
Original price £1,354.00 (inc. VAT) - Original price £1,354.00 (inc. VAT)
Original price £1,354.00 (inc. VAT)
£1,354.00 (inc. VAT)
£1,354.00 (inc. VAT) - £1,354.00 (inc. VAT)
Current price £1,354.00 (inc. VAT)
SKU CAP412

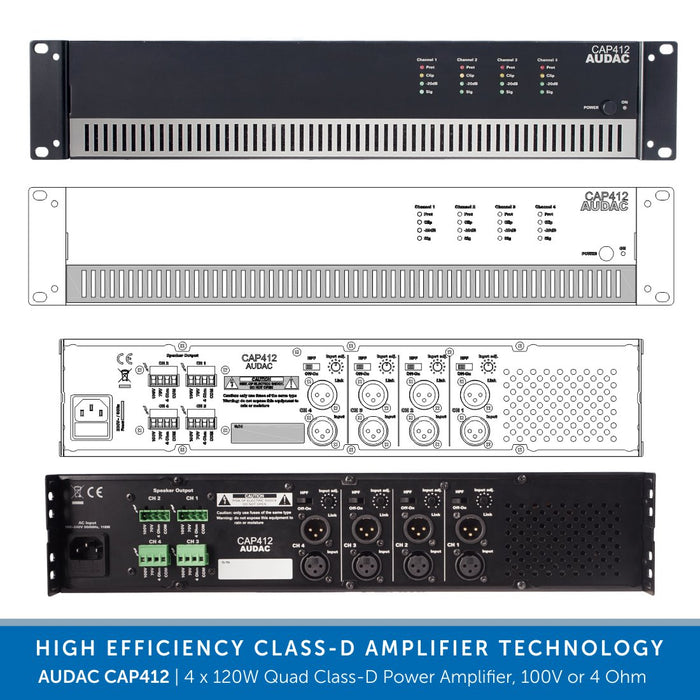

AUDAC CAP412 - 4 x 120W Quad Class-D Power Amplifier, 100V or 4 Ohm
DETAILS

The CAP412 is a professional four-channel 100V power amplifier which is capable of providing 120 Watt to each of the four separate output channels.

This creates great flexibility and new possibilities for installed multi-zone audio distribution systems. It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation.

Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications and the input signal connections are performed using balanced XLR connectors, allowing link through to other amplifiers.

Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter switch (400Hz) on the back of the unit.

A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is built into a double rack space, steel 19” housing.

AUDAC CAP412 Key Features:

  • Lightweight class-D amplifier
  • Advanced protection circuit
  • XLR input & linkthrough connections with gain control & HPF switch
  • Terminal block output connections
  • High-pass filter switch
SPECS & DOWNLOADS

Download the Product Data Sheet HERE >

AUDAC CAP412 Specifications

  • RMS/AES power handling: 4 x 120 W
  • Frequency Response (± 3 dB): 50 Hz - 22 kHz
  • Signal / Noise: > 100 dB
  • THD+N (@ 1 kHz): < 0.3% (1/2 Rated Power)
  • Crosstalk (@ 1 kHz): < 80 dB
  • Technology: Class-D
  • Outputs Voltage / Impedance: 100V, 70V, 4 Ω
  • Dimensions: 482 x 88 x 420 mm (W x H x D)
  • Weight: 14.800 kg
  • Mounting: 19”
  • Unit Height: 2 HE
}
