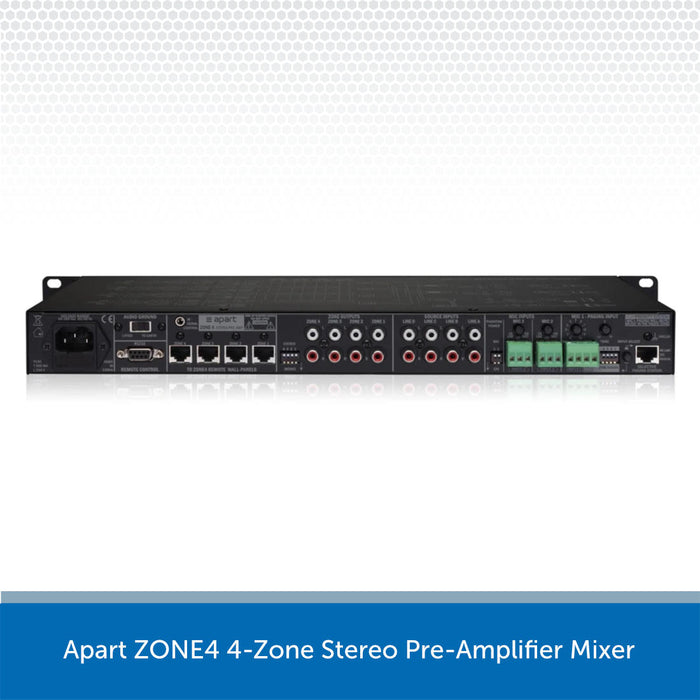

Apart ZONE4 4-Zone Stereo Pre-Amplifier Mixer

by Apart
Original price £779.00 (inc. VAT) - Original price £779.00 (inc. VAT)
Original price £779.00 (inc. VAT)
£779.00 (inc. VAT)
£779.00 (inc. VAT) - £779.00 (inc. VAT)
Current price £779.00 (inc. VAT)
SKU ZONE4
DETAILS

The Apart ZONE4 is a 4-Zone Stereo Pre-Amplifier Mixer with 4 digitally controlled outputs perfect for multi-zone audio systems.

The sophisticated pre-amplifier ZONE4 allows you to control four stereo zones with just one affordable unit. In any of the 4 zones you can play music that comes from one of the 4 music sources you can connect. There is also the possibility to assign 3 microphones to each zone where MIC1 can be a dynamic priority mic (via contact closure) or a 4-zone selective paging microphone (MICPAT-4). Each signal is assignable to any of the four output zones through dipswitches on the front and the back of the unit. Phantom power supply on MIC 1 & 2 can be activated via a dip switch.

The ZONE4 can be controlled from the front panel (with digital display), via the RS232-connector or via the IR serial. On top of that you can control the unit via the ZONE4R remote control panels. Thes control panels have a clear LED status display and buttons for music level, MIC/MIX level, source select and mute controls. Because the remote is wired with a normal CAT5 cable, it is very easy to install.

On the output side, there is a line input selector and music level control per zone. A clear digital display makes it easier to monitor the functioning of the unit. Further, there are independent MIC-MIX level control and bass-treble control per zone.

The unit is 19” format and comes standard with removable brackets. The removable metal cover (included) protects your MIC-settings.

Apart ZONE4 Key Features:

  • Pre-amplifier allows control of four stereo zones with one unit
  • Play any one of four sources in any of the four available zones
  • MIC-MIX level control and bass-treble control per zone
  • Assign up to 3 microphones to each zone via dipswitches
  • Phantom power supply on MIC 1 & 2
  • The remote is wired with a normal CAT5 cable

    Read our blog all about the Apart Audio MASK  speakers
      Read our blog about IP Rating

        View the Apart range of products HERE

        See SPECIFICATION tab for technical specs

        SPECS & DOWNLOADS

        Apart ZONE4 Specifications

        General

        • 19" (483 mm wide) rack mounting: yes
        • Power supply: 115 - 230 VAC
        • Power consumption (max): 25 watts
        • Zone outputs: 4 stereo
        • Output level balanced (dB): 0
        • Output level unbalanced (dB): 0
        • S/PDIF output: no
        • Signal to noise level SNR (dB): >90
        • Total harmonic distortion TBH (%): <0.02
        • Crosstalk (dB): >75
        • Music level control: yes
        • MIC level control: yes
        • VCA level control: no
        • Source selection per zone: yes
        • MIC inputs balanced: 3
        • MIC inputs unbalanced: 0
        • Inputs with Phantom power: 2
        • Phantom power voltage: 18 volts
        • Noise gate on MIC: no
        • Selectable input dynamics: no
        • Selectable output dynamics: no
        • Line input balanced: 0
        • Line input unbalanced: 4 stereo
        • S/PDIF input: no
        • Tone control: yes
        • RS232 (serial communication port): yes
        • Wall panel controls: yes
        • Priority input contact: yes
        • Maximum qty paging Mics: 4
        • Chime: no
        • Emergency input: yes
        • Priority output contact: no
        • Priority levels: 2
        • Frequency response (in Hz): 20 - 30 k
        • Applicable in 100V: yes
        • Applicable low impedance: yes

        Physical & Dimensions

        • Weight: 2.75kg
        • Height- rack units: 1U
        • Depth (build in): 196mm
        • Depth (incl front): 205mm

        Apart ZONE4 PDF Downloads

        Download the User Manual Here
