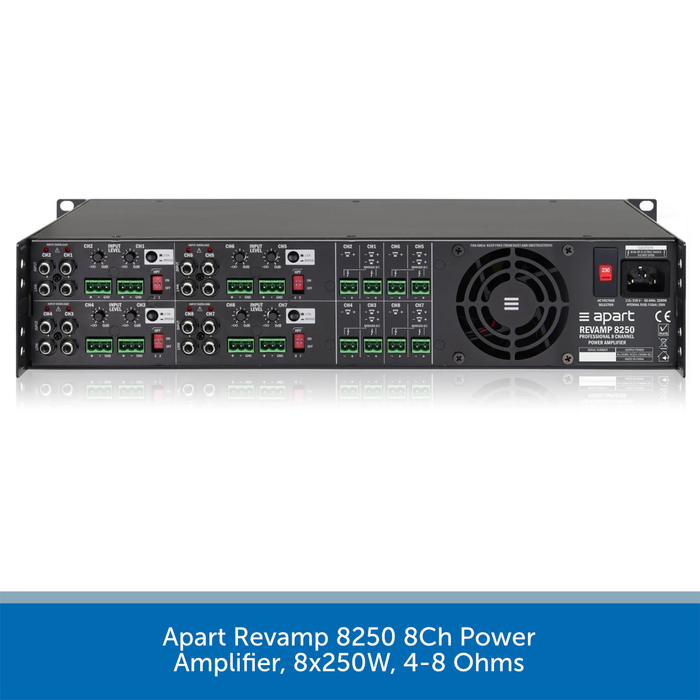

Apart Revamp 8250 8Ch Power Amplifier 8x250W or 4x500W, 4-8 Ohms

by Apart
£999.00 (inc. VAT)
SKU Revamp8250
DETAILS

The Apart Revamp 8250 is a professional 8Ch Class D power amplifier perfect for a range of high-end audio installations.

Class-D amplification - extremely efficient amplifier, silent operation, built-in cooling fan keeps the unit cool at all times.

Perfect for multi-zone audio systems providing 8 or 4 zone output, or can be used to power an array of speakers in single zoned applications.

Each channel features a LINK through so a single audio source can be outputted across all channels.

Gain control for each channel located on the rear of the amplifier can be pre-set before installing to avoid volumes being exceeded.

Power Output:

  • 8 x 450W @ 4 Ohms
  • 8 x 125W @ 8 Ohms
  • 4 x 500W @ 8 Ohms Bridged

Key Features:

  • Apart Revamp 8250
  • 8-channel bridgeable power amplifier
  • Intelligent variable speed cooling fan
  • Input overload LED indicator on the rear of unit
  • Fast and hassle-free installation
  • Black finish

See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

Apart Revamp 8250 Power Amplifier

  • Dynamic output power 4 ohms: 8 x 350 watts
  • RMS output power 4 ohms: 8 x 250 watts
  • Dynamic output power 8 ohms: 8 x 175 watts
  • RMS output power 8 ohms: 8 x 125 watts
  • Dynamic output power bridged 8 ohms: 4 x 650 watts
  • Output power RMS bridged 8 ohms: 4 x 500 watts
  • Minimum impedance load per channel: 4 ohms
  • Minimum impedance load bridged per channel: 8 ohms
  • Power consumption (max): 2200 watts
  • Power supply: 115 - 230 VAC
  • Power supply technology: switching mode power supply
  • Output channels: 8
  • Line input balanced: 8
  • Line input unbalanced: 8
  • Channel separation: > 60 dB @ 1 kHz
  • Power amp topology: class-D
  • Applicable in 100V: no
  • Applicable low impedance: yes
  • Height: 88mm
  • Width: 483mm
  • Depth: 330mm
  • Weight: 21.7kg

Apart Revamp 8250 - PDF Download

Download the User Manual Here
