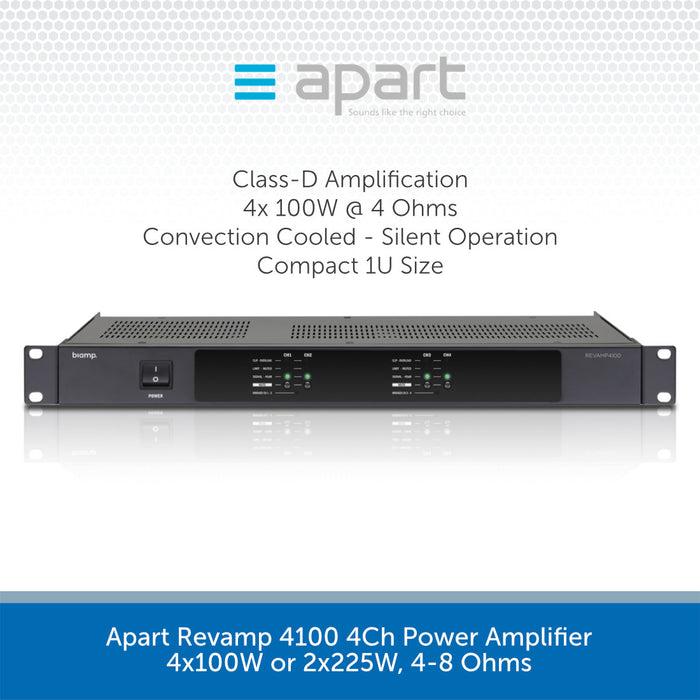

Apart Revamp 4100 4Ch Power Amplifier 4x100W or 2x225W, 4-8 Ohms

by Apart
£549.00 (inc. VAT)
SKU Revamp4100
DETAILS

The Apart Revamp 4100 is a professional 4Ch Class D power amplifier perfect for a range of high-end audio installations.

Class-D amplification - extremely efficient amplifier, silent operation, built-in cooling fan keeps the unit cool at all times.

Perfect for multi-zone audio systems providing 4 or 2 zone output, or can be used to power an array of speakers in single zoned applications.

Each channel features a LINK through so a single audio source can be outputted across all channels.

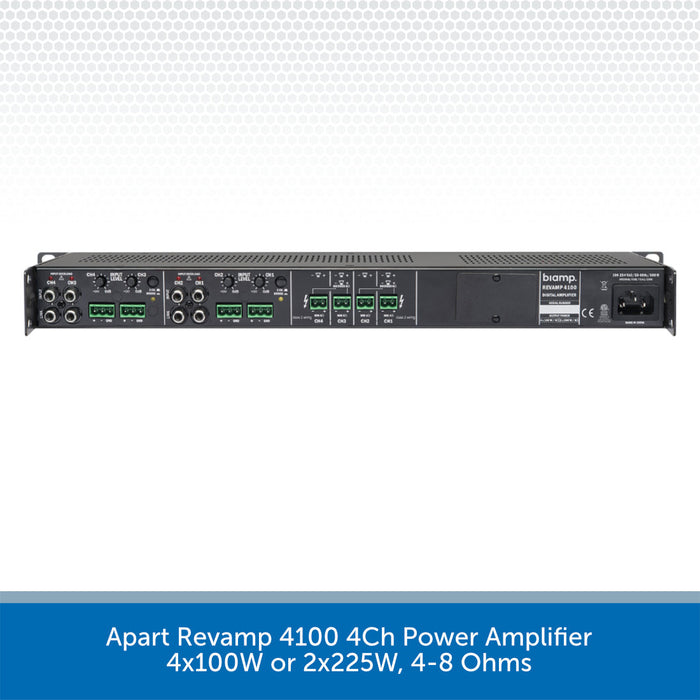

Gain control for each channel located on the rear of the amplifier can be pre-set before installing to avoid volumes being exceeded.

Power Output:

  • 4 x 100W @ 4 Ohms
  • 4 x 50W @ 8 Ohms
  • 2 x 225W @ 8 Ohms Bridged

Key Features:

  • Digital 4-channel amplifier
  • Extended speaker & amp protection circuits
  • REVAMP4100 can also be briged into 2 stereo channels
  • Fast and hassle-free installation
  • Black finish



See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

Apart Revamp 4100 Power Amplifier

  • Dynamic output power 4 ohms: 4 x 110 watts
  • Dynamic output power 8 ohms: 4 x 55 watts
  • Dynamic output power bridged 8 ohms: 2 x 200 watts
  • Minimum impedance load per channel: 4 ohms
  • Power consumption (max): 500 watts
  • Height- rack units (1U=44 mm): 1 U
  • Power supply: 100 - 254 VAC
  • Output channels: 4
  • Line input unbalanced: 4
  • Power amp topology: class-D
  • Cooling system: convection
  • Applicable low impedance: Yes
  • RMS output power 4 ohms: 4 x 100 watts
  • RMS output power 8 ohms: 4 x 50 watts
  • Output power RMS bridged 8 ohms: 2 x 225 watts
  • Minimum impedance load bridged per channel: 8 ohms
  • Power supply technology: switching mode power supply
  • Line input balanced: 4
  • Channel separation: > 65 dB @ 1 kHz
  • Frequency response (in Hz): 20 - 22 k
  • Applicable in 100V: No
  • Height: 44 mm
  • Depth (build in): 230mm
  • Depth (incl front): 239mm
  • Net weight: 3.5kg

Apart Revamp 4100 - PDF Download

Download the User Manual Here
