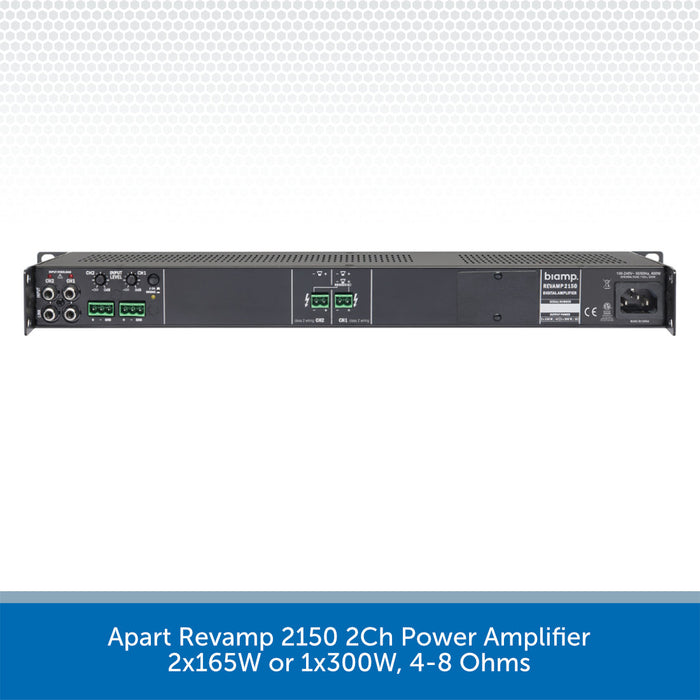

Apart Revamp 2150 2Ch Power Amplifier 2x165W or 1x300W, 4-8 Ohms

by Apart
£449.00 (inc. VAT)
SKU Revamp2150
DETAILS

The Apart Revamp 2150 is a professional 2Ch Class D power amplifier perfect for a range of high-end audio installations.

Class-D amplification - extremely efficient amplifier, silent operation, built-in cooling fan keeps the unit cool at all times.

2 Channel operation ideal for multi-zone applications or the channels can be bridged for single zone installations.

Each channel features a LINK through so a single audio source can be outputted across all channels.

Gain control for each channel located on the rear of the amplifier can be pre-set before installing to avoid volumes being exceeded.

Power Output:

  • 2 x 150W @ 4 Ohms
  • 2 x 80W @ 8 Ohms
  • 1 x 300W @ 8 Ohms Bridged

Key Features:

  • Multiple speaker and amp protection circuits built inside for DC protect
  • Housed in a 1U slim and lightweight design
  • Rear clip LED indicator allows for fast and easy installation
  • Convection cooled stereo digital amplifier
  • Versatile connectivity due to balanced and unbalanced inputs



    SPECS & DOWNLOADS

    Apart Revamp 2150 Power Amplifier

    • Dynamic output power 4 ohms: 2 x 165 watts
    • RMS output power 4 ohms: 2 x 150 watts
    • Dynamic output power 8 ohms: 2 x 95 watts
    • RMS output power 8 ohms: 2 x 80 watts
    • Dynamic output power bridged 8 ohms: 330 watts
    • Output power RMS bridged 8 ohms: 300 watts
    • Minimum impedance load per channel: 4 ohms
    • Minimum impedance load bridged per channel: 8 ohms
    • Power consumption (max): 400 watts
    • 19" (483 mm wide) rack mounting: Yes
    • Height- rack units (1U=44 mm): 1 U
    • Power supply: 115 - 230 VAC
    • Power supply technology: switching mode power supply
    • Output channels: 2
    • Line input balanced: 2
    • Line input unbalanced: 2
    • Channel separation: > 70 dB @ 1 kHz
    • Frequency response (in Hz): 20 - 22 k
    • Power amp topology: class-D
    • Cooling system: convection
    • Applicable in 100V: No
    • Applicable low impedance: Yes
    • Height: 44mm
    • Depth (build in): 230mm
    • Depth (incl front): 239mm
    • Weight: 5.1kg

    Apart Revamp 2150 - PDF Download

    Download the User Manual Here
