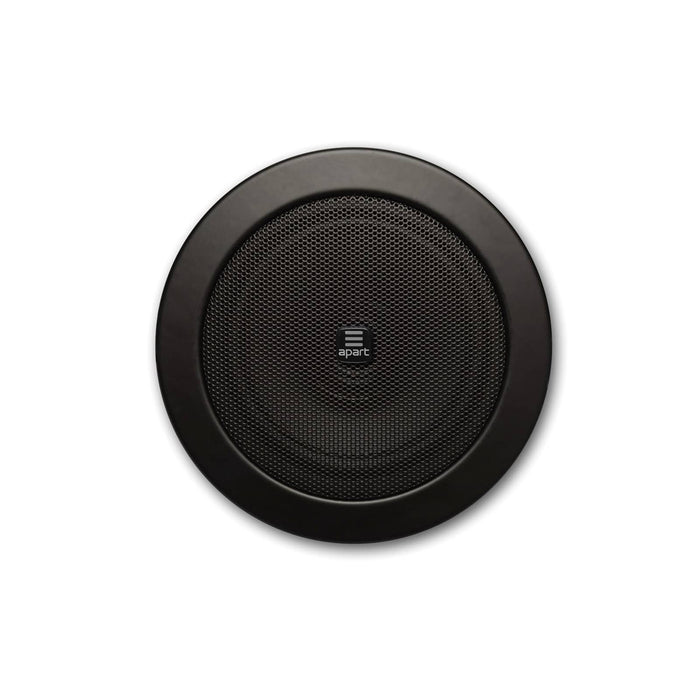

Apart Audio CM4T & CM4T-BL 4" Discreet Ceiling Speaker 6W, 100V/16 Ohm - White or Black

by Apart
£27.00 (inc. VAT)
SKU CM4T
Colour
DETAILS

The Apart Audio CM4T is a compact 4-inch ceiling perfect for low-profile background music installations into pubs, restaurants, hotels and retail outlets etc.

The Apart CM4T 4" ceiling speaker range is the perfect fit for environments that require a small, elegant and discreet speaker for background music and speech such as bars, cafes and shops etc.

The low profile speaker is just one size bigger than a halogen-spotlight, yet still packs the professional sound that you would only expect to find in bigger sizes.
For 100V volt systems, different power taps are present on the high-quality built-in line transformer: for background music with low background noise, you can use the lower power taps. For maximum sound pressure level, use the highest power tap. The CM4T also supports 16-ohm operation at 30W.

Apart CM4T Key Features:

  • One size bigger than a halogen-spot model (CM3T)

  • Low power taps for areas with low background noise

  • High power taps for maximum sound pressure

  • Ideal for speech and background music without large speakers

  • Full metal frame and a coated dual paper cone

  • Low distortion and increased resistance against moisture



See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

Apart CM4T Ceiling Speaker

  • Loudspeaker System: Dual cone
  • Woofer Cone Material: Coated paper
  • 100V Transformer Power Taps: 6-3-1.5Watts
  • Impedance: 16Ohms
  • Low Impedance RMS power: 15Watts
  • Max SPL 1m: 103 dB
  • Main Construction Material: Steel
  • IP Rating: 50
  • Applicable in 100V: yes
  • Closest RAL Colour (subject to deviations): RAL9010 (W) / RAL9011 (BL)
  • Installation Grip Range: 1-15 mm
  • Woofer Size: 4inch
  • Mounting System: 2 Springs
  • 70V Transformer Power Taps: 6 - 3 - 1.5 - 0.75 watts
  • Low Impedance Dynamic Power: 30Watts
  • SPL 1W/1m: 88dB
  • Frequency Response: 90-19K Hz
  • Grille Main Material: Aluminium
  • Applicable Low Impedance: Yes
  • Vertical Dispersion Angle 1000 Hz: 180°
  • Outside Diameter: 135mm
  • Cutout: 108mm
  • Depth: 74mm
  • Weight: 0.69kg

Apart CM4T & CM4T-BL PDF File Download

Download the user manual here

Download the technical data sheet HERE
