DETAILS
Apart 2 Zone Store Bundle | 2-Zone mixer amp with 6x HiFi ceiling speakers in black or white.
The Apart 2 Zone Store Bundle is a complete speaker and amplifier package perfect for multi-room background music applications in shops and retail spaces.
Consisting of the Apart Concept 1T 2-Zone Mixer Amplifier, 6 Apart CMX20T 2-Way HiFi Ceiling Speakers in Black and 50m of high-quality speaker cable.
Our Apart 2 Zone Store Bundle is ideal for environments that need a compact and discreet audio system whilst still maintaining a high-quality sound output.
The Apart Concept 1T Mixer Amp is an affordable yet rock-solid amplifier unit, designed for 24/7 operation.
Installers will be pleased to know that setup is quick and easy and all of the speakers can be wired in parallel (daisy-chained) from one to another on 100V.
Apart Concept 1T 2-Zone Mixer Amp Key Features
- Affordable yet professional unit, designed for 24/7 operation
- RMS Program Power, both channels driven: 2 x 60 W / 100 V
- Stand-alone, RS-232 or IR-controlled
- Removable rack-ears included
- IR remote control and IR extender optionally available
- Three operating modes
Apart CMX20T 2-Way HiFi Ceiling Speakers
- Two-way built-in loudspeaker with an 8" woofer and 1" tweeter
- Housing - ABS; woofer - polypropylene; grille - aluminium
- Woofer features a rubber edge making moisture-proof
- Suitable for use in bathrooms and kitchens
- Connect 4 loudspeakers in parallel on a 4 ohms amplifier
- Optimised installation with new Quick Fix connector

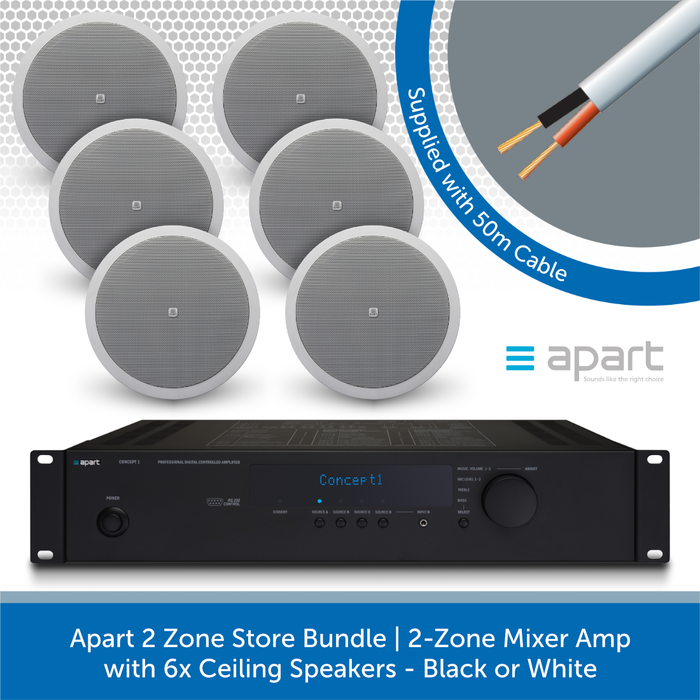

Items included
- 1x Apart Concept 1T 2-Zone Mixer Amp
- 6x Apart CMX20T 2-Way HiFi Speakers (Black or White)
- 1x 50m High-Quality Speaker Cable (807.095/090)
View the Apart range of products HERE
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS

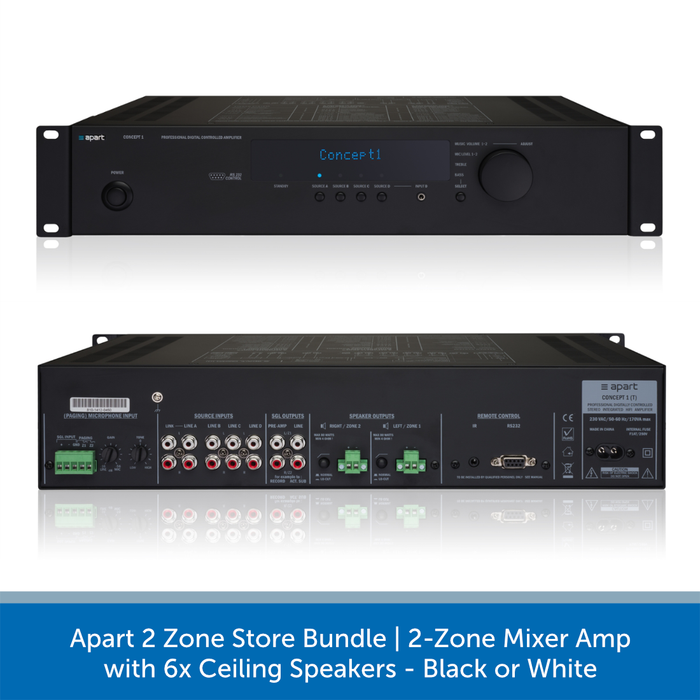

Apart Concept 1T Mixer Amp
- Dynamic output power 8 ohms: 2 x 75 watts
- Minimum impedance load per channel: 167 ohms
- Power consumption (max):
- Power supply: 230 VAC
- Line input unbalanced: 4
- cooling system: convection
- Applicable in 100V: yes
- 19" (483 mm wide) rack mounting: yes
- Depth (incl front): 314 mm
- Net weight product: 8.20KG
Apart CMX20T 2-Way HiFi Ceiling Speaker
- Loudspeaker system: 2-way
- Woofer size: 8 inch
- Woofer cone material: polypropylene
- Tweeter size: 1 inch
- Mounting system: 3 screws
- 100V transformer power taps: 20 - 10 - 5 watts
- 70V transformer power taps: 20 - 10 - 5 - 2.5 watts
- Impedance: 16 ohms
- Low impedance dynamic power: 100 watts
- SPL 1W/1m: 88 dB
- Max SPL 1m: 108 dB
- Frequency response: 50 - 20K Hz
- Main construction material: ABS plastic
- Grille main material: aluminium
- IP rating: 54
- Applicable low impedance: yes
- Applicable in 100V: yes
- Vertical dispersion angle 1000 Hz: 180°
- Outside diameter: 244mm
- Depth: 87mm
- Cutout: 223mm
- Weight: 1.4kg
2-Core High-Quality Speaker Cable - 50m (807.095/090)
- CSA: 2 x 0.75mm²
- Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
- Dimensions: 7mmØ
- Current: 6A max.
- Length: 50m
Apart Concept 1T Mixer Amp - PDF Downloads
Download the Technical Spec Sheet HERE
