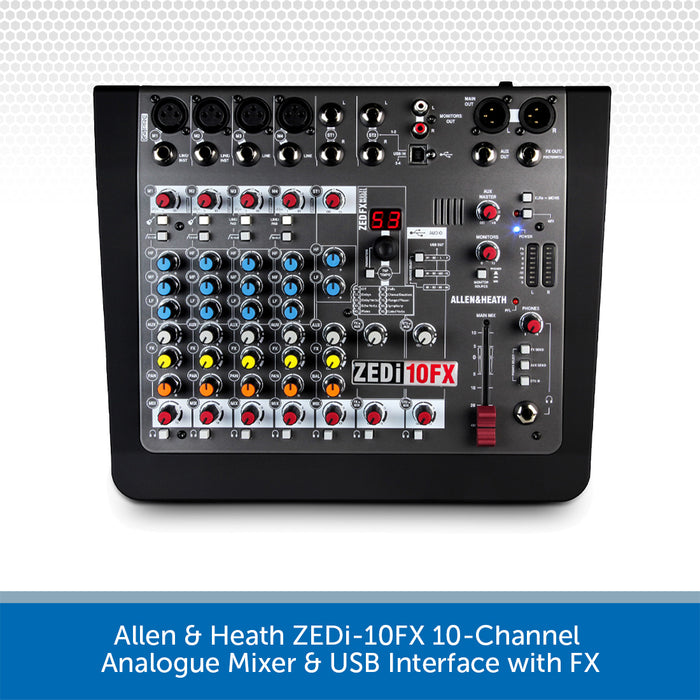

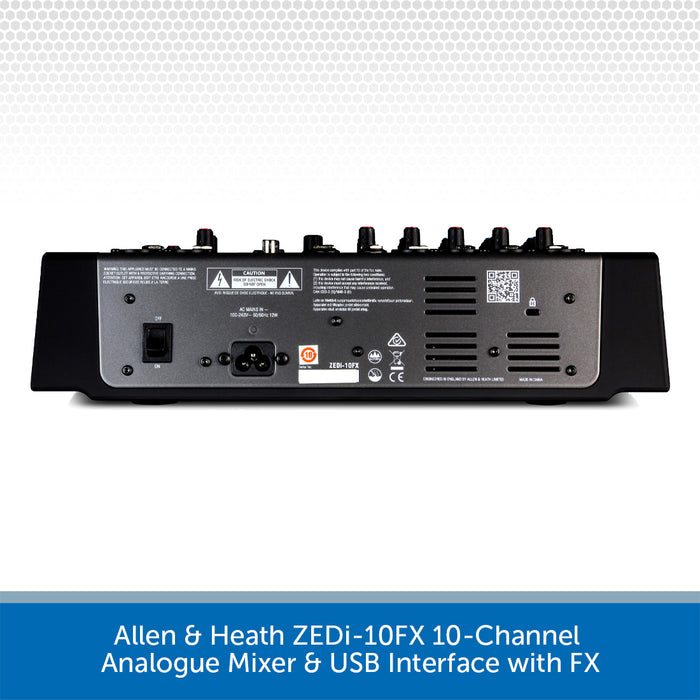

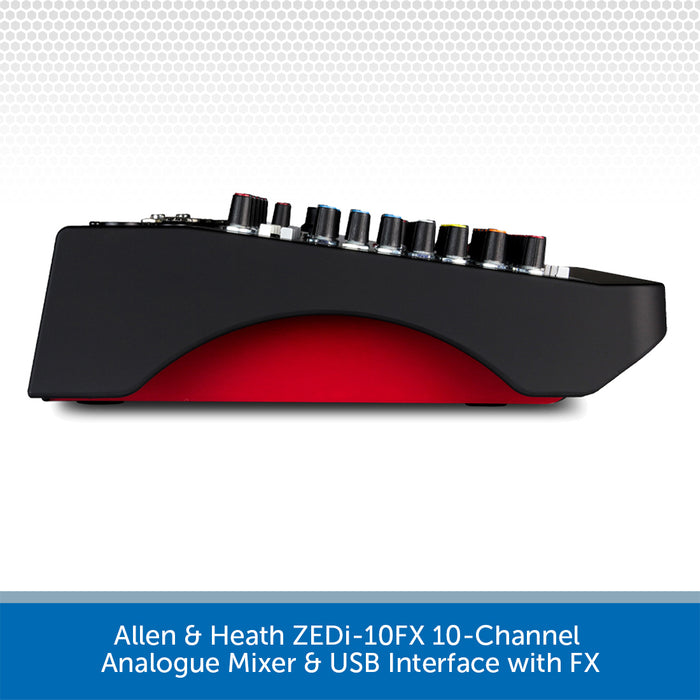

Allen & Heath ZEDi-10FX 10-Channel Analogue Mixer & USB Interface with FX
DETAILS
The Allen & Heath ZEDi-10FX is an 10-channel mixer & audio interface, making this a great choice for live and studio use. Built-in FX provides reverb, delays and more.
The Allen & Heath ZEDi-10FX provides musicians, recording artists, and venues with the robustness and tactile control of an analogue mixer, combined with the adaptability and ease of a 4×4 USB interface.
Featuring the newly developed GSPre boutique preamp design, inspired by the acclaimed GS-R24 studio recording console, the ZED offers remarkably low noise levels and ample headroom, delivering that cherished analogue warmth and depth. Guitarists will find it particularly appealing that the ZEDi-10FX includes a pair of high-impedance Guitar DI inputs, eliminating the need for separate DI boxes when plugging in guitars directly to the mixer.
MIXER + USB INTERFACE
ZEDi-10FX offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow. ZEDi-10FX is class-compliant with Mac and iOS.
ZEDFX MULTI MODEL
ZEDi-10FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.
CUBASE LE MUSIC PRODUCTION SOFTWARE INCLUDED
ZEDi-10FX comes with the acclaimed Cubase LE software. Cubase LE offers powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its vast range of proven editing and sequencing tools can be used for a large range of music styles and areas of application.
Key Features:
- 4 in, 4 out USB Audio Interface (24-bit/96kHz)
- Cubase LE Software included
- Cubasis LE App included
- 4 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
- Lo-cut filter for cleaning up unwanted low frequency noise
- 3 band EQ for easy creative and corrective tonal shaping
- FX out for connecting external effects units
- Aux out for connecting a monitor speaker or in-ear / headphone monitoring
- 60mm smooth travel fader on main mix
- XLR main outputs
- Flexible signal monitoring
- 8 LED signal metering
- 48V Phantom Power for condenser mics
- Robust internal power supply
SPECS & DOWNLOADS
Allen & Heath ZEDi-10FX Specifications
General
- Input
- Mono channel 1-2 (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu maximum)
- Mono channel 3-4 (XLR) Input (For Nominal 0dBu) Pad IN +15dBu to –40dBu (+23dBu maximum)
- Mono channel 1-2 Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
- Mono channel 3-4 Line Input (Jack socket) +15dBu to -40dBu (+23dBu maximum)
- Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)
- Output
- L/R Outputs (XLR) 0dBu (+18dBu maximum)
- Aux & FX Output (Jack sockets) 0dBu (+18dBu maximum)
- Monitor Output L/R (RCA Phono Sockets) 0dBu (+18dBu maximum)
- Frequency Response
- Mic in to Mix L/R Out, 30dB gain 10Hz to 30kHz +0.5/-1dB
- Instrument/Line in to Mix L/R out 0dB gain 10Hz to 30kHz +0.5/-1dB
- Stereo in to Mix L/R out 10Hz to 30kHz +0.5/-1dB
- THD+n
- Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter) 0.002%
- Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.005%
- Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
- Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%
- Headroom
- Analogue Headroom from nominal (0Vu) 18dB
- USB in & out headroom from nominal (0Vu) 18dB
- Noise
- Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
- Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -93dBu
- Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -90dBu
- USB Audio
- USB Audio In/Out USB 2.0 compliant
- Bit Depth 24 bit
- Sample Rate 44.1, 48, 88.2, 96kHz
Physical & Dimensions
- Height: 96.5mm
- Width: 332.9mm
- Depth: 274.6mm
- Weight: 2.2kg
