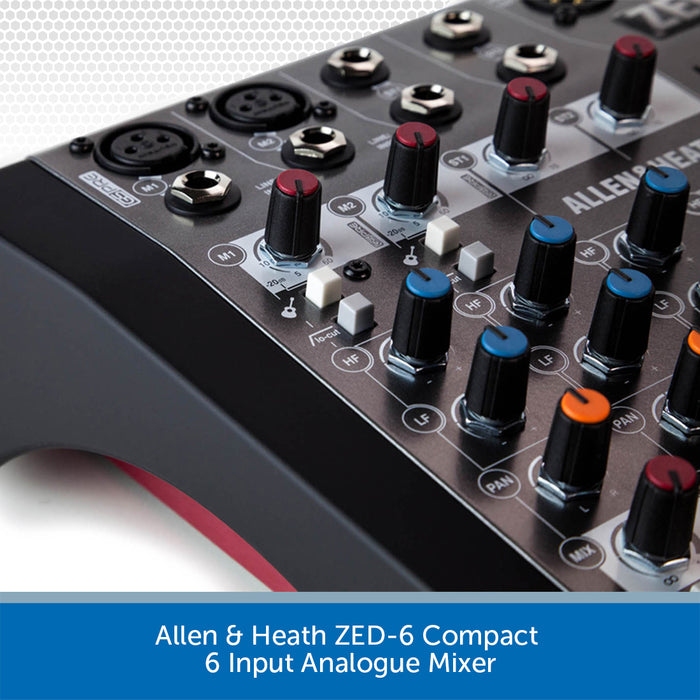

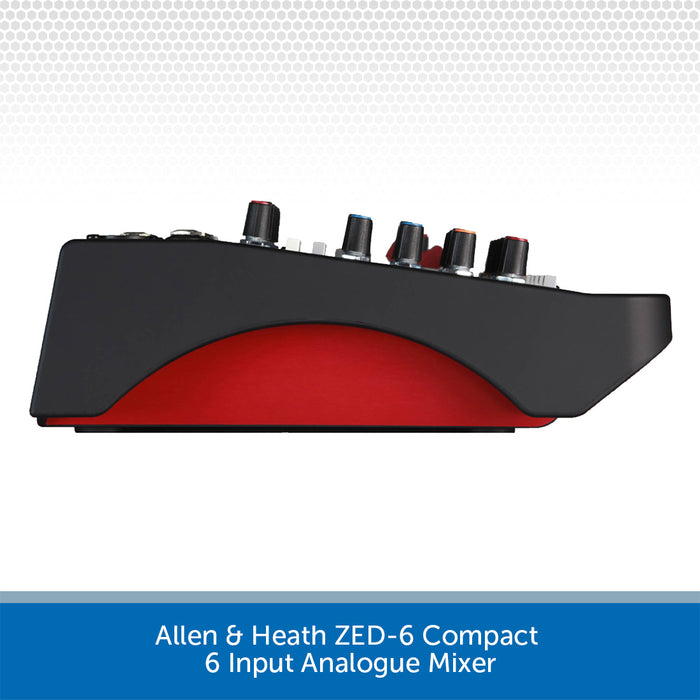

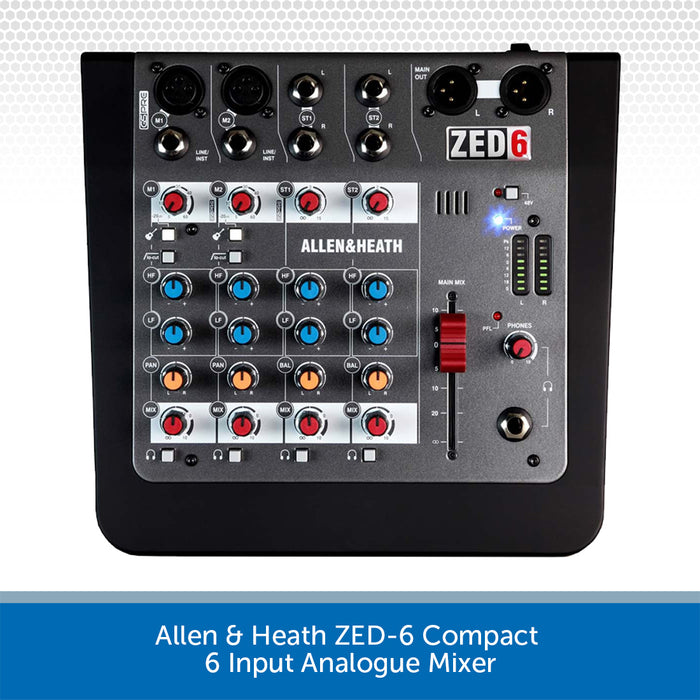

Allen & Heath ZED-6 Compact 6 Input Analogue Mixer

Original price £119.00 (inc. VAT) - Original price £119.00 (inc. VAT)
Original price £119.00 (inc. VAT)
£119.00 (inc. VAT)
£119.00 (inc. VAT) - £119.00 (inc. VAT)
Current price £119.00 (inc. VAT)
SKU ALLZ6X
DETAILS

The Allen & Heath ZED-6 is a compact, portable audio mixer designed for musicians, singer-songwriters, and venues seeking Allen & Heath's renowned audio quality.

ZED-6 caters to musicians, singer-songwriters, and venues who are in search of Allen & Heath's renowned craftsmanship and audio excellence, all packed into a compact, easily portable form. Whether you're brainstorming musical ideas at home, delivering electrifying live performances, or capturing tracks for sharing on platforms like YouTube and SoundCloud, ZED-6 proves to be an adaptable companion throughout your creative journey.

ZED-6 features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

Key Features:

  • 2 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 2 band EQ for easy creative and corrective tonal shaping
  • 60mm smooth travel fader on main mix
  • XLR main outputs
  • Flexible signal monitoring
  • 8 LED signal metering
  • 48V Phantom Power for condenser mics
  • Robust internal power supply
SPECS & DOWNLOADS

Allen & Heath ZED-6 Specifications

Operating Levels

  • Input
    • Mono channel (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu in max)
    • Mono channel Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
    • Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)
  • Output
    • L/R Outputs (XLR) 0dBu (+18dBu maximum.
    • Frequency Response
    • Mic in to Mix L/R Out, 30dB gain 10Hz to 20kHz +0.5/-1dB
    • Instrument/Line in to Mix L/R out 0dB gain 10Hz to 20kHz +0.5/-1dB
    • Stereo in to Mix L/R out 10Hz to 20kHz +0.5/-1dB
  • THD+n
    • Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter) 0.0025%
    • Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.006%
    • Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
    • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%
  • Headroom
    • Analogue Headroom from nominal (0Vu) 18dB
  • Noise
    • Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
    • Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -95dBu
    • Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -92dBu

Physical & Dimensions

  • Height: 88.9mm
  • Width: 249mm
  • Depth: 236.4mm
  • Weight: 1.3kg

    }
