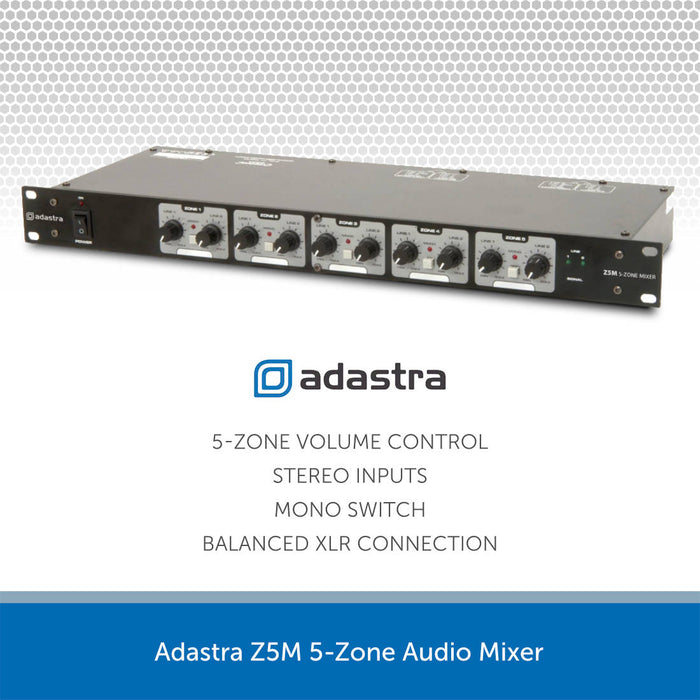

Adastra Z5M 5-Zone Audio Mixer

by Adastra
£84.00 (inc. VAT)
SKU 953.019

DETAILS

2 Input, 5 zone mixer with individual volume controls for each zone.

The Adastra Z5M is designed for multi-zone audio installations that require a separate volume control for each zone.

2 line inputs allow for the connection of multiple audio sources each of which can be mixed in any of the zones, allowing users to play different music in multiple areas.

5 balanced XLR outputs ensure a reliable audio signal is distributed to the connected power amplifiers / active loudspeakers.

The rack-mount unit offers a simple user-friendly operation & each output can be labelled with a marker pen to the corresponding zones.

SPECS & DOWNLOADS

Adastra Z5M Specifications

Power supply: 115/230Vac 50/60Hz (IEC)
Inputs: Line 1 L+R, Line 2 L+R, balanced XLRF

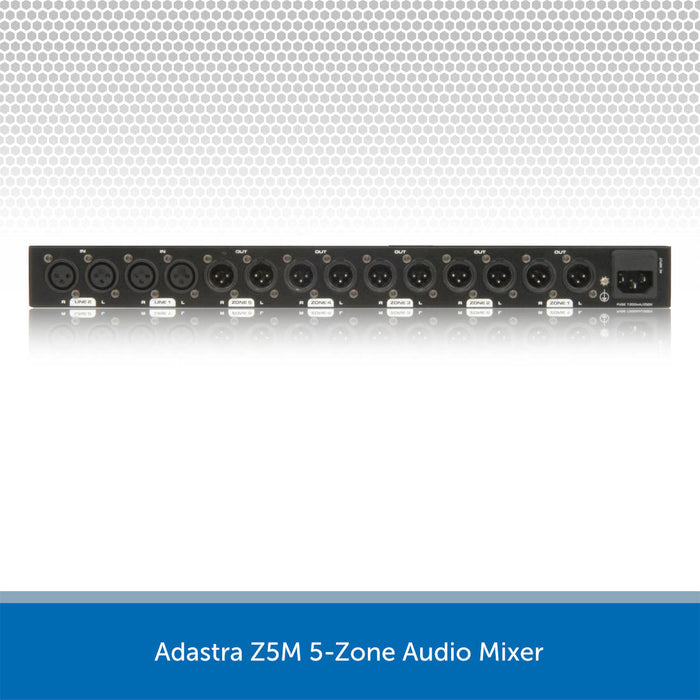

Outputs: Zone 1 to 5 L+R, balanced XLRM
Input impedance: 40k Ohms
Output impedance: 220 Ohms
Frequency response: 20Hz - 25kHz, +0/-1dB
Signal to noise ratio: >100dB
THD: <0.005%
Dimensions: 483 x 175 x 44mm
Weight: 2.2kg

Adastra ZM5 PDF Download

Download the User Manual HERE
