Adastra UA30 Compact 30W 100V Mixer Amplifier

by Adastra
Original price £105.00 (inc. VAT) - Original price £105.00 (inc. VAT)
Original price £105.00 (inc. VAT)
£105.00 (inc. VAT)
£105.00 (inc. VAT) - £105.00 (inc. VAT)
Current price £105.00 (inc. VAT)
SKU 953.183


The Adastra UA30 is an ultra-compact & easy-to-use 30W 100V Line mixer-amplifier designed to offer high-quality, dependable service for mobile and installed public address systems.

The Adastra UA30 is a simple and easy-to-use amplifier designed for small to medium-sized venues. It features 5 hard-wired inputs to which you can connect a phone, PC, radio, CD player and other sources. There is no Bluetooth on this unit which makes it a great option for public-facing areas, as it removes the possibility of the system being tampered with remotely.

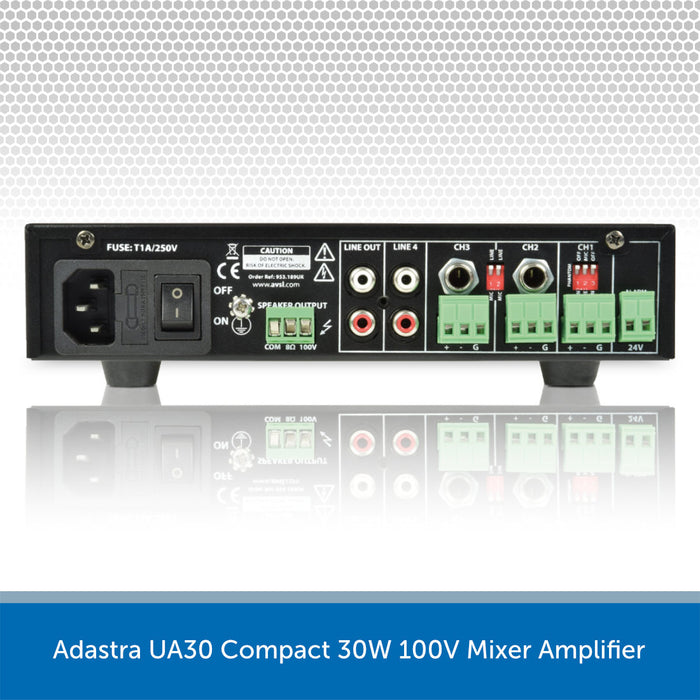

Located on the front of the Adastra UA30 mixer-amp is a dedicated microphone input (1/4" Jack / XLR) with gain control, and a 3.5mm Jack input. On the rear of the amplifier, there are 3x inputs (2x 1/4" Jack / Phoenix & 1x Phono), and 1x Phono line-output. There is also a 24V fire alarm contact.

The UA30 comes included with mounting brackets that allow it to be fixed to the underside of a desk/counter or up against the wall.


Key Features:

  • Suitable for fixed and mobile PA applications
  • Efficient Class-D amplifier design
  • Ultra-compact form factor
  • Microphone input
  • 24 Fire Alarm Input
  • 100V line or 8 Ohms operation
See SPECIFICATION tab for technical specs


Adastra UA30 Mixer-Amp Specifications

  • Power supply: 170-264Vac, 50Hz (IEC)
  • Amplifier : construction: Class D + transformer output
  • Inputs: 1x Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
  • Line output: 1 x RCA (mono)
  • Speaker outputs: Euroblock terminals: 100V / 8 Ohms / Com
  • Mute: 24V relay contacts
  • THD: <0.4% @ 1kHz
  • Input impedance: 1k Ohms (mic/line)
  • Input sensitivity: -10dB (line), -45dB (mic)
  • SNR: 80dB (line), 75dB (mic)
  • Frequency response: 100Hz - 18kHz
  • Output power : rms: 30W
  • Dimensions: 249 x 210 x 44mm
  • Weight: 2.35kg

Adastra UA30 Mixer-Amp PDF File Download

Download the User Manual HERE
