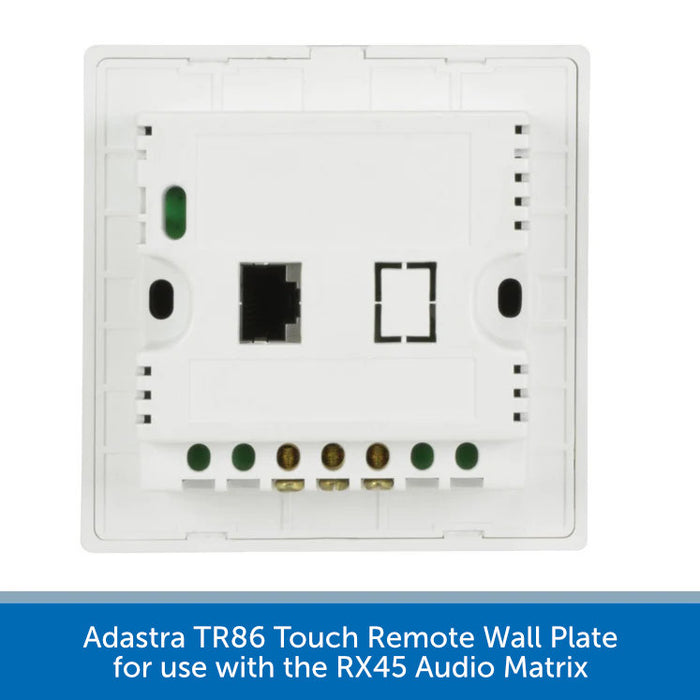

Adastra TR86 Touch Remote Wall Plate for use with the RX45 Audio Matrix

by Adastra
Original price £43.95 (inc. VAT) - Original price £43.95 (inc. VAT)
Original price £43.95 (inc. VAT)
£43.95 (inc. VAT)
£43.95 (inc. VAT) - £43.95 (inc. VAT)
Current price £43.95 (inc. VAT)
SKU 953.050
DETAILS

The Adastra TR86 is a touch-operated remote wall plate designed specifically for the RX45 Audio Matrix System.

Perfect for multi-zone audio setups, the TR86 allows for convenient control of audio sources and volume levels directly from the room you’re in, eliminating the need to return to the main matrix or amplifier.

This remote wall plate connects to the RX45 Audio Matrix via a standard network cable with RJ45 connections. It supports cable runs of up to 100 meters from the unit, and can extend up to 1 kilometer with the addition of a separate 24V DC power input, ensuring flexibility in large installations.

The TR86 is housed in a compact single-gang 86 x 86mm wall plate, designed for easy installation and a sleek appearance. You can connect up to 5 TR86 panels to a single RX45 unit, each providing control over one of the matrix’s 5 independent zones.

Adastra RX45 Key Features:

  • Touch Operated Control: User-friendly touch interface for managing audio settings.
  • Ideal for Multi-Zone Systems: Control audio sources and volume levels from multiple locations.
  • Easy Installation: Connects via RJ45 cable; up to 100 meters directly or up to 1 kilometer with 24V DC power.
  • Compact Design: Fits a single-gang 86 x 86mm wall box for a clean installation.
  • Supports Multiple Panels: Up to 5 TR86 panels can be used with a single RX45 unit, each controlling a separate zone.
SPECS & DOWNLOADS

Adastra TR86 Remote Wall Plate Specifications

  • Power supply: 24Vdc (from RX45 or externally)
  • Connection: 8P8C (RJ45)
  • Terminals: Local +24V, Ground, Local line input
  • Controls Sources: 1-4 (USB), Local, Mute, Level +/-
  • Mounting depth: 38mm
  • Dimensions: 86 x 86 x 38mm
  • Weight: 128g

Adastra TR86 Remote Wall Plate - PDF File Download

Download the User Manual HERE

}
