Adastra Compact 100V Ceiling Speaker Package with Bluetooth & USB Mixer Amplifier

by Adastra
Original price £199.99 (inc. VAT) - Original price £199.99 (inc. VAT)
Original price £199.99 (inc. VAT)
£199.99 (inc. VAT)
£199.99 (inc. VAT) - £199.99 (inc. VAT)
Current price £199.99 (inc. VAT)
SKU UM30-CRSP10-4
Amount of Speakers: 4
Amount of Speaker Cable: No Extra Cable (50m included)
DETAILS

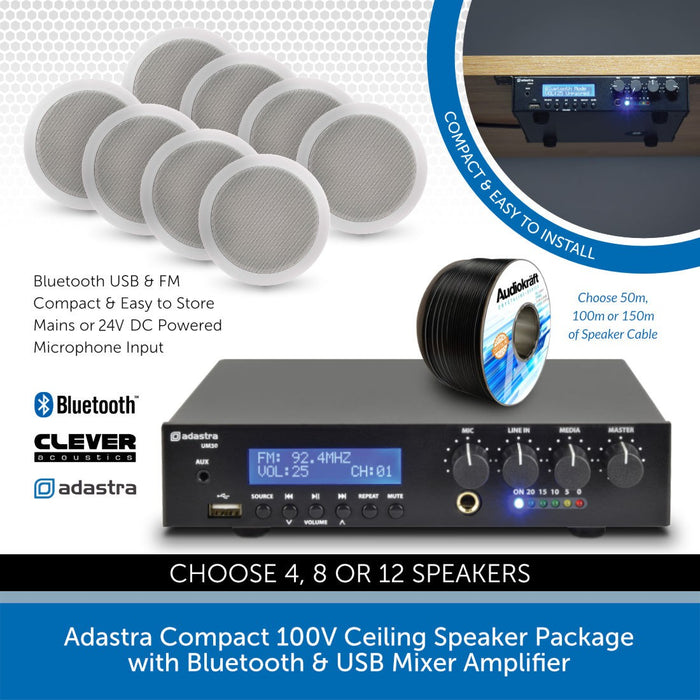

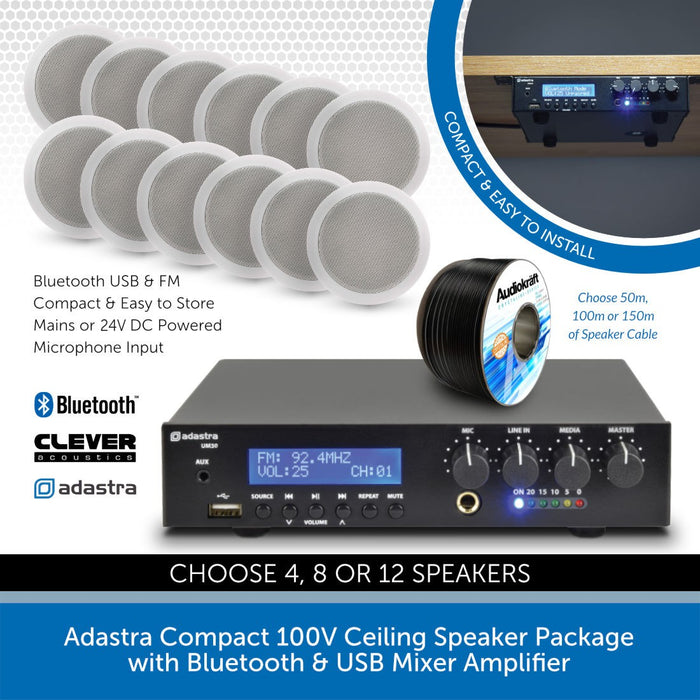

Our ultra-compact 100V Line Adastra UM-Series Mixer Amplifier with Bluetooth & USB is perfectly paired with up to 12 Clever Acoustics 6W Ceiling Speakers.

This kit is an Ideal choice for providing a high-quality sound solution where space is at a premium, or where a larger amplifier is not desired or practical. It brings together the Adastra UM-Series amplifier - with its small footprint, array of source inputs and ability to be used as either a low-impedance or 100V Line unit - and high-class, easy-ti-install Clever Acoustics CS 69 LC 6" ceiling speakers.

Choose from 4, 8 or 12 speakers, with the option to supplement the included 50m speaker cable with an extra 50m or 100m depending on the size of your installation.

Included in package

  • Adastra UM-Series 100V/8ohm Mixer Amplifier (953.173/176/179)

    • 4, 8 or12 Clever Acoustics CS 69 LC 6" Ceiling Speakers (CRAM10)

    • 50m AudioKraft Premium 2-Core Speaker Cable (AK-OUT-BK)

    Adastra UM-Series 100V Mixer Amplifier with Bluetooth

    Adastra UM30 Banner

    The Adastra UM-Series amplifiers offer high-quality sound for both music and public announcements. They can be used as either 100V Line or standard low-impedance power amplifiers and can be powered via mains lead or 12V battery.

    The UM-Series feature a built-in USB audio player, FM radio tuner and Bluetooth wireless receiver as well as RCA phono input and front-facing AUX input allowing connection of an external media player such as a laptop, TV or CD player.

    The UM-series amplifiers can easily be rack-mounted in pairs or fixed to a wall or beneath a counter or worktop.

    Main Features

    • Suitable for fixed and mobile PA applications
    • Efficient Class-D amplifier design
    • Ultra-compact form factor
    • Internal USB/FM/BT audio player
    • Microphone input
    • 240V or 12V power operation
    • 100V line or 8 Ohms operation

    Clever Acoustics CS 69 LC 6" Ceiling Speakers

    Clever Acoustics CS69LC Speaker

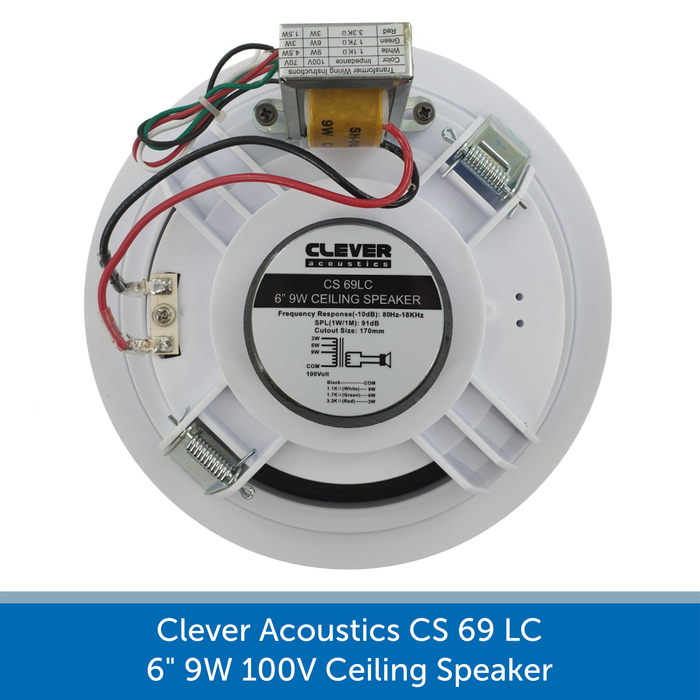

    The Clever Acoustics CS 69 LC are quality 6-inch 100V Line ceiling speakers that boast a discreet and slimline design, dual-cone driver for extended upper-frequency response and multiple power tappings (6W, 3W & 1.5W).

    Installing the CS 69 LC speakers is effortless thanks to spring clips and an included cut-out template. They are a complete solution for offices, shops, cafes and other commercial properties with suspended false ceilings for easy access.

    Main Features

    • 3-year warranty
    • Dual cone driver for extended upper-frequency response
    • Multiple power taps
    • Low profile design blends into environments
    • ABS baffle with metal grille
    • Spring clip mounting for easy installation
    • Supplied with template to aid installation






      See SPECIFICATION tab for technical specs
      SPECS & DOWNLOADS

      Adastra UM30 (for 4 speaker kits)

      • Power supply: 170-264Vac, 50Hz (IEC)
      • Amplifier: construction: Class D + transformer output
      • Audio source: Internal USB/FM/BT player
      • Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
      • Line output: 2 x RCA (mono)
      • Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
      • DC power: 24Vdc screw terminals
      • Mute: 24V relay contacts
      • THD: <0.4% @ 1kHz
      • Input impedance: 1k Ohms (mic/line)
      • Input sensitivity: -10dB (line), -45dB (mic)
      • SNR: 80dB (line), 75dB (mic)
      • Frequency response: 100Hz - 18kHz
      • Output power: rms: 30W
      • Alarm output: N/A
      • Dimensions: 249 x 210 x 44mm
      • Weight: 2.35kg



      Adastra UM60 (for 8 speaker kits)

      • Power supply: 170-264Vac, 50Hz (IEC)
      • Amplifier: construction: Class D + transformer output
      • Audio source: Internal USB/FM/BT player
      • Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
      • Line output: 2 x RCA (mono)
      • Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
      • DC power: 24Vdc screw terminals
      • Mute: 24V relay contacts
      • THD: <0.4% @ 1kHz
      • Input impedance: 1k Ohms (mic/line)
      • Input sensitivity: -10dB (line), -45dB (mic)
      • SNR: 80dB (line), 75dB (mic)
      • Frequency response: 100Hz - 18kHz
      • Output power: rms: 60W
      • Alarm output: Fog, Siren & Alert Generator
      • Dimensions: 249 x 210 x 44mm
      • Weight: 2.47kg



      Adastra UM90 (for 12 speaker kits)

      • Power supply: 170-264Vac, 50Hz (IEC)
      • Amplifier: construction: Class D + transformer output
      • Audio source: Internal USB/FM/BT player
      • Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
      • Line output: 2 x RCA (mono)
      • Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
      • DC power: 24Vdc screw terminals
      • Mute: 24V relay contacts
      • THD: <0.4% @ 1kHz
      • Input impedance: 1k Ohms (mic/line)
      • Input sensitivity: -10dB (line), -45dB (mic)
      • SNR: 80dB (line), 75dB (mic)
      • Frequency response: 100Hz - 18kHz
      • Output power: rms: 90W
      • Alarm output: Fog, Siren & Alert Generator
      • Dimensions: 300 x 210 x 44mm
      • Weight: 3.02kg



        Clever Acoustics CS 69 LC Ceiling Speakers

        • Input: 70V, 100V
        • Power taps @ 100V: 3W, 6W, 9W
        • Power taps @ 70V: 1.5W, 3W, 4.5W
        • Impedance: 1.1 K?, 1.7K?, 3.3K?
        • Sensitivity (1W/1m): 91dB (±3dB)
        • Maximum SPL (Rated W/1m): 101dB
        • Frequency response: 80Hz-18kHz
        • Drivers: 6" full range dual cone
        • Connections: Flying leads
        • Cutout: 170mmØ
        • Dimensions: 80 x 200mmØ
        • Weight: 0.9kg

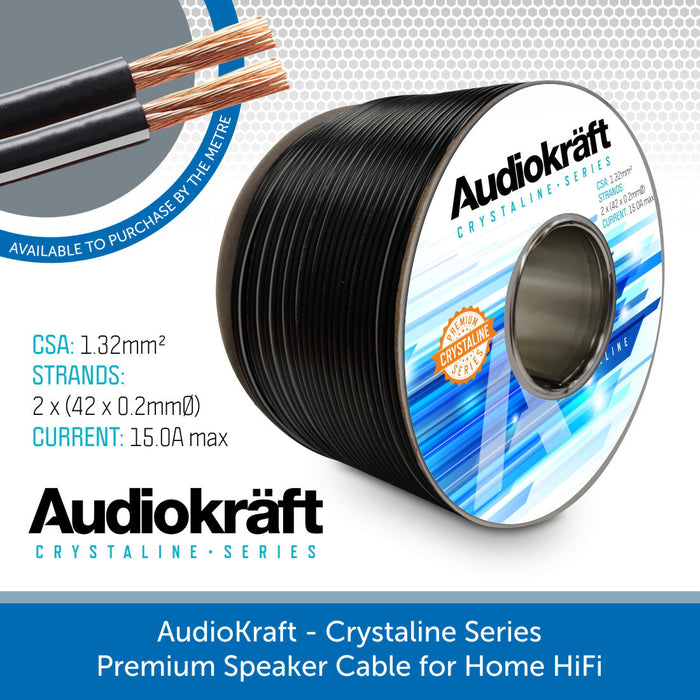

          Double Insulated Speaker Cable - 50m

          • CSA: 1.32mm²
          • Strands: 2 x (42 x 0.2mmØ)
          • Current: 15A max.
          • Sheath: Black
          • Length: 50m
          • Polarity: White

          }
