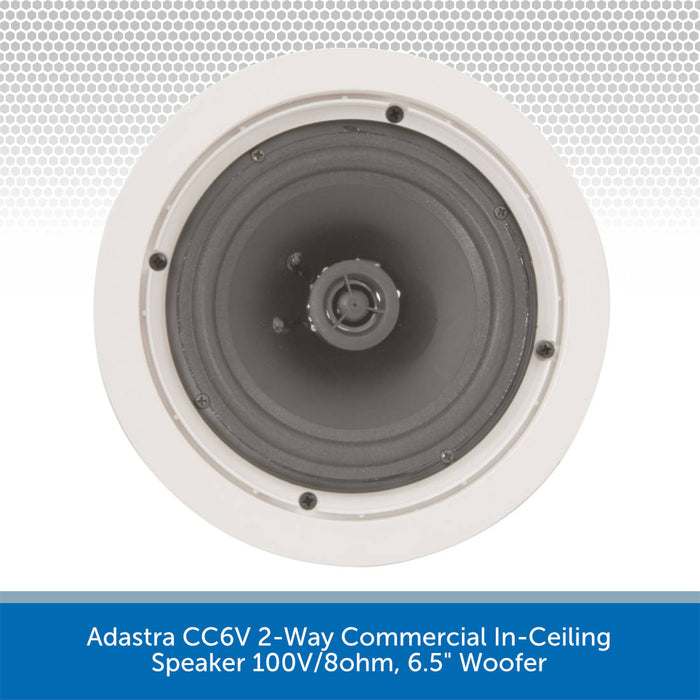

Adastra CC6V 2-Way Commercial In-Ceiling Speaker 100V/8ohm, 6.5" Woofer
Our Adastra CC6V 6.5" background ceiling speaker is a perfect installation for pubs, bars, restaurants and similar environments.
Featuring a rotary switch on the back, the speaker can be tapped to 2.5, 5, 10, 15 & 20W via 100v Line as well as an 8-ohm option. This is perfect as it can be altered to almost any environment depending on how many speakers you have and the load of your amplifier.
- 160° Dispersion angle
- Rotary selector switch for 100V line tappings or 8 ohms

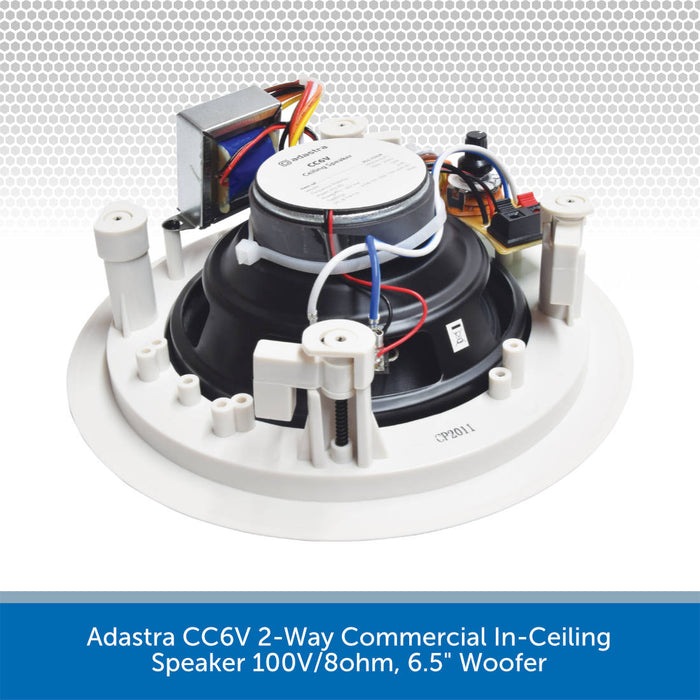

- Spring-loaded terminals for easy connection
- Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
For easy and quick installation the speaker has spring-loaded terminals that simply click into place once your cable is inserted. A 160° dispersion angle enables you to strategically position your speaker in an area that provides equal sound throughout, instead of one area being louder than another.
SPECS & DOWNLOADS
Adastra CC6V 6.5 inch Ceiling Speaker
- Woofer: 165mmØ (6.5")
- Tweeter: 38mmØ (1.5")
- Frequency response: 70Hz - 20kHz
- Power max.: 8 Ohms100W
- Power rms: 8 Ohms50W
- Power rms: 100V line20W

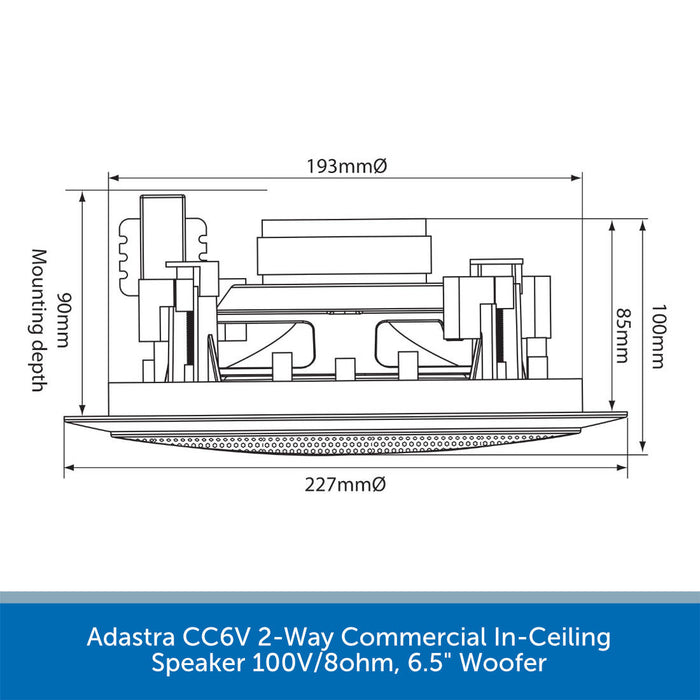

- Cutout: 193mmØ
- Mounting depth: 90mm
- SPL @ 1W/1m: 87dB (±2dB)
- Tappings: 2.5, 5, 10, 15, 20W & 8 Ohms
- Dimensions: 100 x 227mmØ
- Weight: 1.25kg
