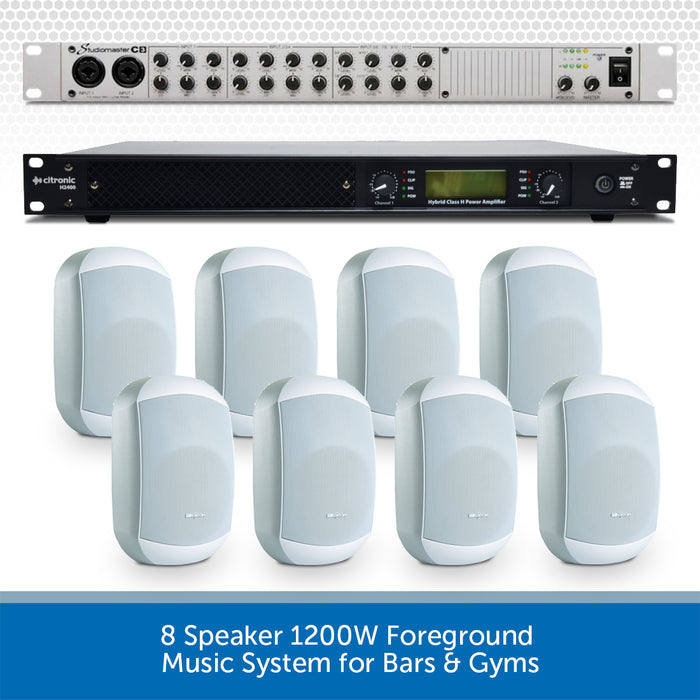

8 Speaker 1200W Foreground Music System for Bars & Gyms

£1,709.00 (inc. VAT)
SKU 8MASK6CT-BUN-BL
Colour
DETAILS

This foreground amplifier & speaker package is perfect for gyms, bars & pubs. 1200W of power offer substantial volume, clarity and depth, and the IP64 rated speakers also mean this system can be used outdoors.

This premium foreground music system is an ideal solution into any bar, gym, wedding venue, or any environment looking to play high-volume upbeat music.

This system includes:

  • 1x IMG Stageline STA-1500A 1400W amplifier
  • 1x MMX-602 6-channel mixer
  • 8x Apart MASK6CT speakers
  • 100m 100V Line Cable
  • 2x Neutrik Speakon adapters
  • 2x 0.5m XLR Cables (190.089)

The IMG Stageline STA-1500A amplifier is the driving force of the system offering 2x 700W of power, more than enough to power 8x Apart MASK6CT speakers at their full potential. There is also a dedicated subwoofer setting which will filter the audio at a user-defined frequency to avoid frequency crossover, resulting in a clear & deeper sound.

The Apart MASK6CT speakers offer 150W (RMS) of true power output, meaning they can reach high volume while retaining crystal-clear sound quality and depth in the low end - perfect for dance music. While they can be used in this manner, when turned down to a more reasonable volume the MASK6CTs act as great high-quality background speakers.

The Apart MASK6CTs are IP64 rated, meaning these can be installed outdoors and can withstand light rain making them a great choice for a beer garden or outdoor smoking area.



The IMG Stageline MMX-602 mixer allows for a number of inputs with varying connections. These include 1/4" (6.35mm) Jack, XLR and Phono/RCA, enabling any device such as a phone, laptop, media player & microphone to be connected.



IMG Stageline STA-1500A Key Features

  • 3 operating modes can be selected (stereo, parallel or bridged)

  • Limiter function can be activated as required

  • Temperature-controlled fan

  • 2 level controls

  • Ground lift function

  • Speaker switch-on delay

  • Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs

  • Each channel with LEDs for indicating operating voltage, signal and limiter

  • NEUTRIK SPEAKON connections



Apart MASK6CT-W & MASK6CT-BL Key Features

  • Perfect for background music up to dance music

  • High-quality and long-lasting performance

  • IP64 Rated for indoor and outdoor use

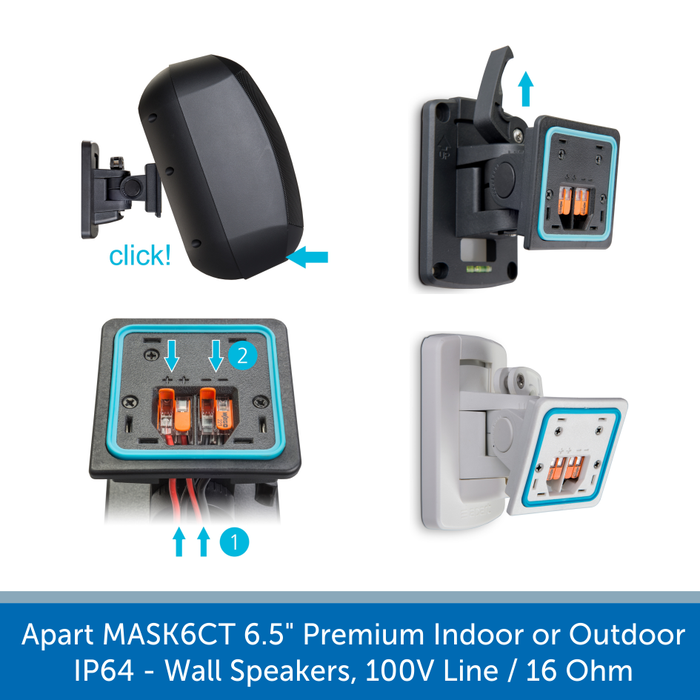

  • Supplied with ClickMount bracket for a quick and easy install

  • 100V Line tappings 60, 30, 15, and 6W / 16 Ohms

  • 3-Step overload protection

  • Black or white available



SPECS & DOWNLOADS

IMG Stageline STA-1500A Specifications

  • Peak output power: 2,100 W
  • Power rating at 4 Ω: 2 x 700 W
  • Power rating at 8 Ω: 2 x 550 W
  • Power rating with 8 Ω bridged operation: 1 x 1,500 W
  • Channels: 2
  • Inputs: 1 V/10 kΩ
  • Frequency range: 20-20,000 Hz
  • Integrated limiter: yes
  • S/N ratio: 77 dB
  • Crosstalk attenuation: > 60 dB
  • THD: < 0.1%
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 2,725 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482 mm
  • Height: 88 mm
  • Depth: 430 mm
  • Rack spaces, RS: 2
  • Weight: 15.5 kg
  • Connections: 1 x 3-pole XLR L/R, bal. 1 x NEUTRIK SPEAKON, L/R, 1 x NEUTRIK SPEAKON (bridged)



Apart MASK6CT-BL & MASK6CT-W Specifications

  • Loudspeaker system: 2-way
  • Woofer size: 6.5inch
  • Woofer cone material: Coated paper
  • Tweeter size: 1inch
  • Mounting system: Clickmount
  • 100V Transformer Tappings: 60, 30, 15 and 6 watts
  • Impedance (ohms): 16
  • Low impedance dynamic power: 200 watts
  • SPL 1W/1m: 90dB
  • Max SPL 1m: 110dB
  • Frequency response: 65-20k/Hz
  • Main construction material: ABS plastic
  • Grille main material: Aluminium
  • IP rating: 64
  • Horizontal dispersion angle 1000Hz: 180°
  • Vertical dispersion angle 1000Hz: 180°
  • Height: 328mm
  • Width: 198mm
  • Depth: 190mm
  • Weight: 3.35g



IMG Stageline MMX-602/SW Specifications

  • No. of channels: 6
  • No. of inputs: 12
  • Mic input: 1 mV/6.6 k?, 6 x 3-pole XLR, bal.
  • Line input: 100 mV/10 k?, 6 x RCA L/R
  • Master output: 1 V/600 ?, 1 x RCA L/R, 1 x 3-pole XLR L/R, bal.
  • Record output: 310 mV/600 ?, 1 x RCA L/R
  • Headphones: > 8 ?, 1 x 6.3 mm jack
  • Frequency range: 20-20,000 Hz
  • THD: 0.1%
  • S/N ratio: 62 dB, unweighted
  • Equalizer bass: ±12 dB/50 Hz
  • Equalizer midrange: ±12 dB/1 kHz
  • Equalizer treble: ±12 dB/10 kHz
  • Talkover: -12 dB, manual
  • Power supply: ~ 230 V/50 Hz/12 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 12 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482 mm
  • Height: 47 mm
  • Depth: 208 mm
  • Rack spaces, RS: 1
  • Weight: 2.8 kg
