DETAILS

A 3-zone background music system with volume control for each zone. Bluetooth, DAB radio, with a choice of 4, 6 or 8 wall mount speakers. Perfect for adding background music to small cafes, bars, and coffee shops, etc.

This 3-zone music system is perfect for small shop, cafes, offices and more, who need separate volume control across two areas, such as the main restaurant and toilets.

Two external volume controls allow you to adjust the volume of a set of speakers individually and can be placed anywhere to suit, such as under a counter for easy access. This is ideal if you have two areas such as a main room and toilets, where one may want to be louder than the other.

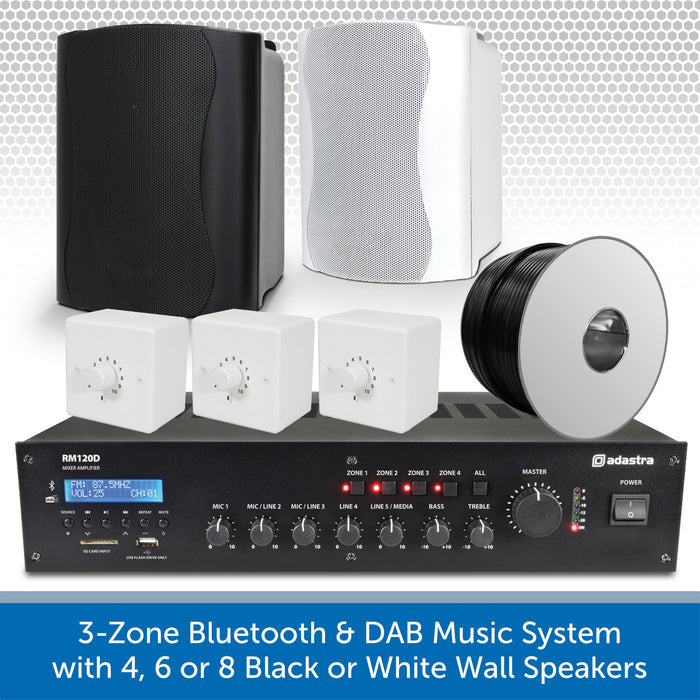

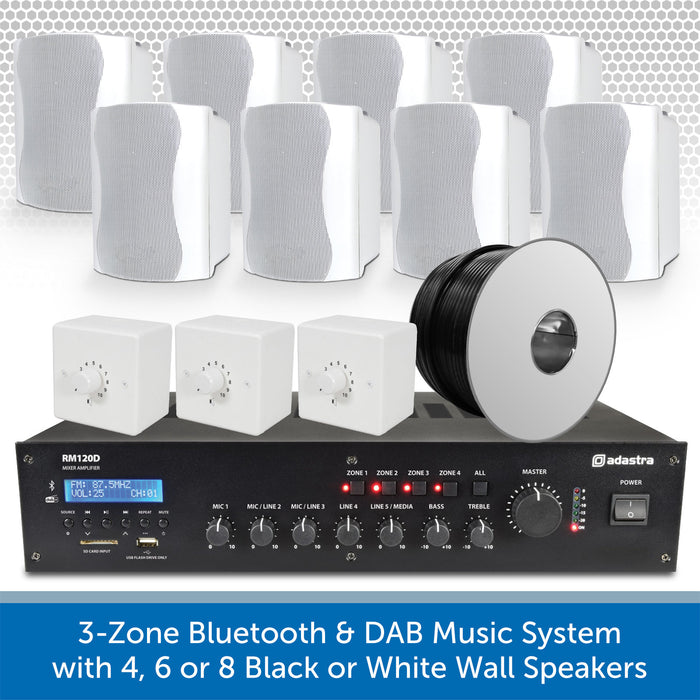

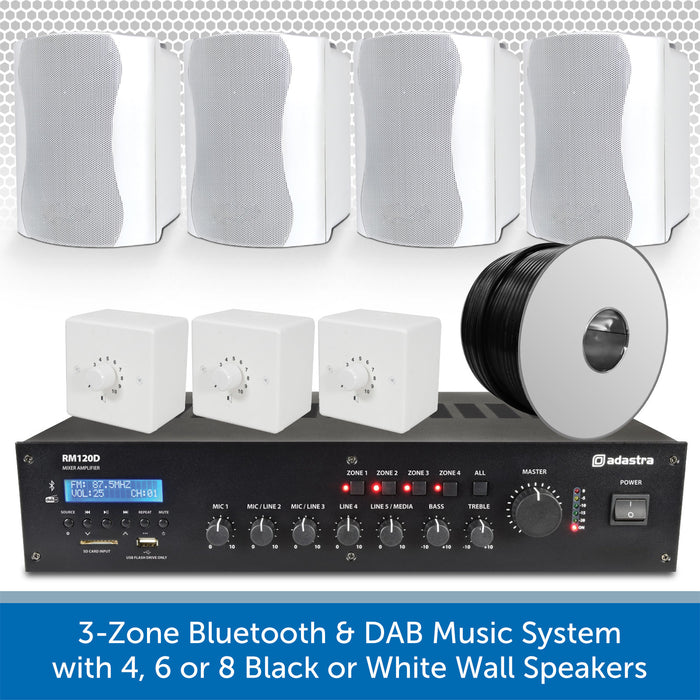

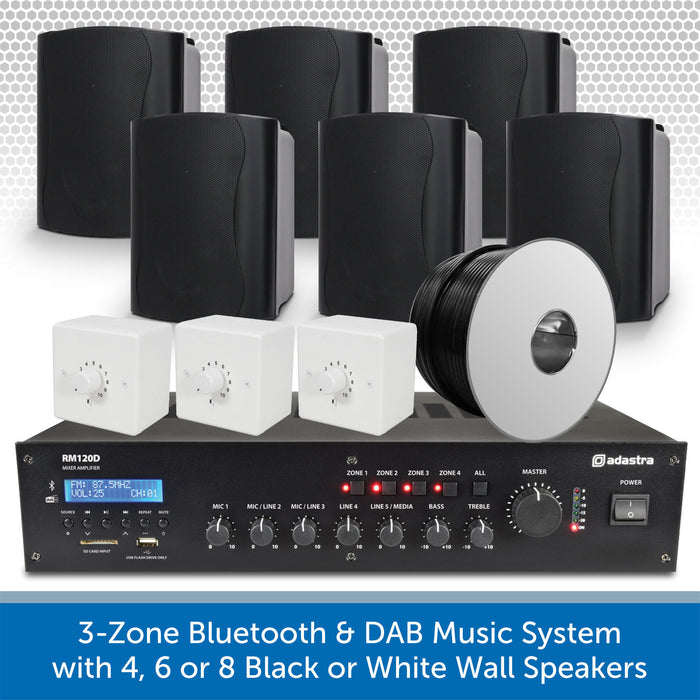

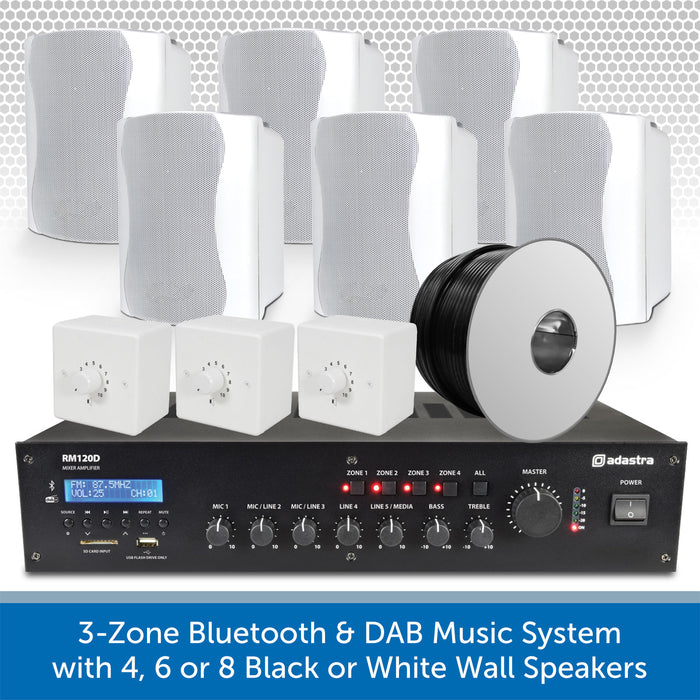

Included is:

• Adastra RM120D Mixer Amp with BT & DAB
• 4,6 or 8 Wall-mounted Speakers (Brackets and Fixings Included)

• 100m Drum Double Insulated Speaker Cable
• 3x 60W Wall-Mounted Volume Controls

The music system is ideal for adding a nice background ambience to your venue, creating a comfortable atmosphere that guests will enjoy.

For peace of mind, this background music system comes with a 3-year warranty.

Setup Instructions

For the best performance, set the speakers to 8W MAX. Lower wattages are available on the speaker too. If set to a lower wattage more speakers can be added to the system if required.

The volume controls are wired in-line with the speakers. This means you need to run the speaker cable from the amplifier, to the volume control, and the from the volume control to the speakers.

Every speaker connected after the volume control will be affected.

Adastra RM120D Mixer Amplifier Overview

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load.

Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback.

A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered.

Outputs on screw terminals are via 4 switchable zones with a separate "always on" output for priority alert speakers.

Wall-mounted Speakers Overview

These compact wall-mount speakers offer excellent sound quality for music playback & speech in any commercial environment. They are also very compact, ideal for low-profile audio installations where space is at a premium.

The professional 100V speakers are supplied with wall mounting brackets for a horizontal or vertical installation, and include all fixings to get the on the wall.

Each speaker is provided with a dial to adjust the 4 power tappings of 16, 8, 4 & 2W. This enables you to balance each speaker to suit the area it's installed into. For example, you may want to reduce the power of the speakers located towards the entrance to create a more welcoming environment.

60W Volume Control Attenuator Overview

A perfect solution for any install needing to control the volume of one or multiple 100V Line loudspeakers.

The attenuator can control the volume for 1 or multiple speakers that's total output is 60W or less.

When an attenuator is installed into a system, the master volume on your amplifier will NOT control anything wired after the switch.

This bundle includes the back box for fixing the control into a wall.

Double Insulated Speaker Cable Overview

The music system is included with 100m of double-insulated 2-core speaker cable, tried and tested for 100V Line operation such as this.

View our full range of Cafe Music Systems HERE

SPECS & DOWNLOADS

120W 100V Mixer Amplifier Specifications

• Mains power: 110/240Vac, 50/60Hz (IEC)

• DC power: 24Vdc (screw terminals)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic 1 (balanced): -53dBV
• Input impedance : mic: 1 5k Ohms
• Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
• Input impedance : inputs: 2-5 1k Ohms
• Line output: RCA
• Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
• Equalizer : bass: 100Hz ±10dB
• Equalizer : treble: 10kHz ±10dB
• Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
• Phantom power: +20V (mic 1 input)
• Audio source: USB/SD player, DAB tuner and Bluetooth receiver
• Emergency control: 24V contacts - mute all except Mic.1 when triggered
• Bluetooth version: 5.0
• THD: <1.0%
• Power : output: 120Wrms
• Speaker : outputs: 100V / 4-16 Ohms / COM terminals
• Weight: 6.36kg
• Dimensions: 433 x 320 x 89mm

100V Wall Mount Speakers Specifications

• Input: 100V, 8Ω
• Power taps @ 100V: 2W, 4W, 8W, 16W
• Impedance: 5KΩ, 2.5KΩ, 1.25KΩ, 625Ω
• Power (RMS): 25W @ 8Ω
• Sensitivity (1W/1m): 88dB
• Maximum SPL (Rated W/1m): 95dB
• Frequency response: 70Hz-18kHz
• Drivers: 4" LF, 1"HF
• Connections: 2 x binding terminals
• Dimensions: 210 x 160 x 130mm
• Weight: 2.1kg (each)

60W Volume Contol Attenuator

• Rated power: 60W
• Line input: 70V / 100V
• Attenuation per step: 3dB
• Total attenuation: 33dB
• Attenuation positions: 10 + off
• DC 24V relay: No
• Dimensions (H x W x D): 80 x 80 x 48mm

Double Insulated Speaker Cable Specifications

• CSA: 2 x 0.75mm²
• Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
• Dimensions: 7mmØ
• Current: 6A max.
• Sheath: Black PVC
• Length: 100m
