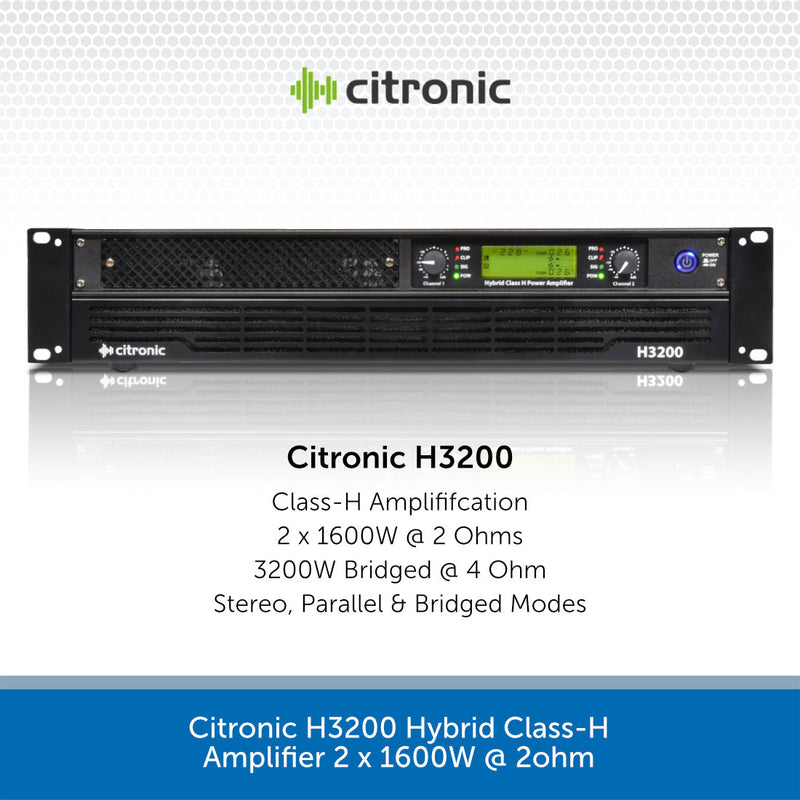

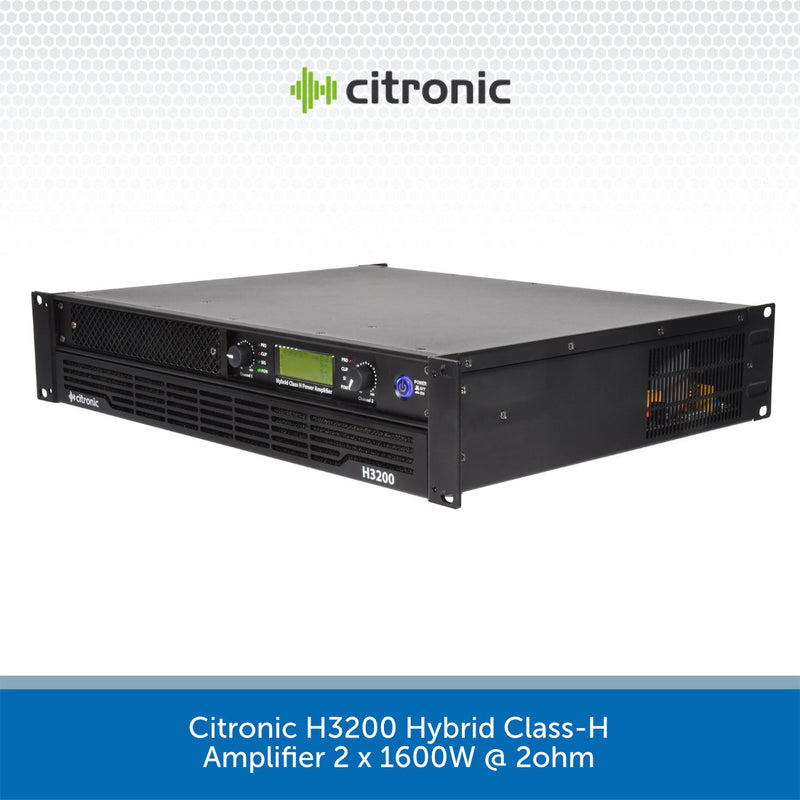

Citronic H3200 Hybrid Class-H Amplifier 2 x 1600W @ 2ohm

Original price £499.00 (inc. VAT) - Original price £499.00 (inc. VAT)
Original price £499.00 (inc. VAT)
£499.00 (inc. VAT)
£499.00 (inc. VAT) - £499.00 (inc. VAT)
Current price £499.00 (inc. VAT)
SKU 172.132


DETAILS

The H3200 is a Class-H 2 x 1200W amplifier stable down to 2 Ohms, perfect for large PA systems in gyms, bars and live events.

The Citronic H3200 power amplifier is engineered using a hybrid Class-H architecture, enabling them to deliver high power output without sacrificing portability. The H-series amplifiers are the ideal solution for sound contractors and PA installers who demand reliable, high-quality sound.

With the H3200, users have the flexibility to run the amplifier in parallel, stereo, or bridged mode. The amplifier is stable down to 2 Ohms, ensuring a seamless performance.

Moreover, the internal protection system is comprehensive, continuously monitoring thermal or overload conditions, automatically muting at power on/off, and providing active inrush limiting.

The H3200 comes with a digital display that shows the supply voltage, internal temperature, and output level. Additionally, the fully balanced signal path has three switchable input sensitivity levels to match various audio sources.

A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space.

Citronic H-Series Power Amplifiers Key Features:

  • Hybrid class-H circuit design
  • Digitally controlled and monitored power section
  • Switchable 120Hz low-pass crossover
  • Backlit LCD status display
  • Full internal thermal and overload protection
  • Stable down to 2 Ohms (4 Ohms bridged)

SPECS & DOWNLOADS

Citronic Class-H Power Amplifiers Specifications

Common

  • Power supply: 200-240Vac, 50Hz (IEC)
  • Amplifier : construction: Hybrid Class-H
  • Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting.
  • Frequency response: 20Hz-20KHz ±0.5dB
  • THD +N: 0.2%
  • S/N ratio: -95dB
  • Damping factor: >700
  • Input sensitivity: 1.0V - 1.4V - 2.0V switchable
  • Input impedance: 20K? (balanced),10K? (unbalanced)
  • Dimensions: 483 x 361 x 88mm (1U)
  • Power rms @ 8 Ohms: 2 x 800W
  • Power rms @ 4 Ohms: 2 x 1200W
  • Power rms @ 2 Ohms: 2 x 1600W (40ms burst 1kHz sine)
  • Power rms bridge @ 4 Ohms: 3200W (40ms burst 1kHz sine)
  • Power rms bridge @ 8 Ohms: 2400W
  • Weight: 8.9kg


    Citronic Class-H Power Amplifiers - PDF Downloads

    Download the User Manual HERE



    }
