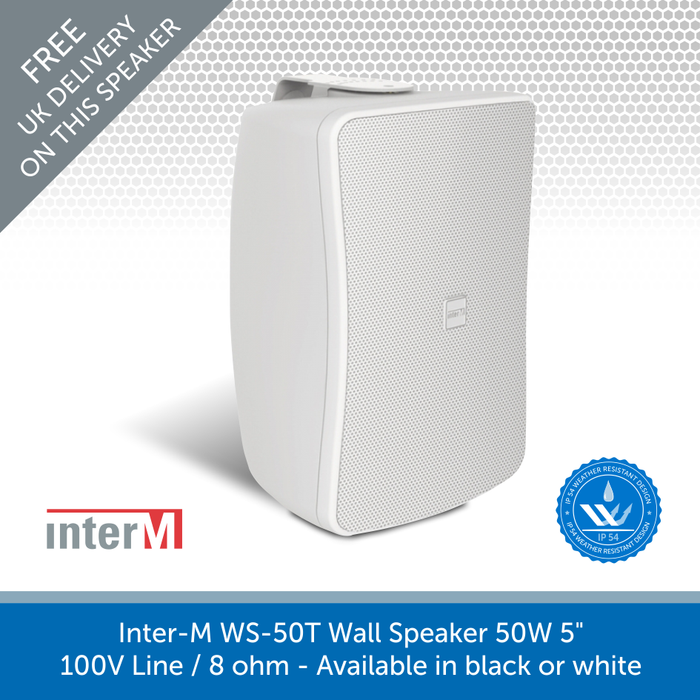

Inter-M WS Series Compact Wall Mount Speakers for Background & Foreground Music, IP54 Rated

by Inter-M
Original price £79.00 (inc. VAT) - Original price £79.00 (inc. VAT)
Original price £79.00 (inc. VAT)
£79.00 (inc. VAT)
£79.00 (inc. VAT) - £79.00 (inc. VAT)
Current price £79.00 (inc. VAT)
SKU WS50T-WH
Model (Size): WS50T (5")
Colour: White

BLACK FRIDAY - Use code BF10 at checkout

Save an EXTRA 10% sitewide, including Sale items!

DETAILS

The Inter-M WS Series Loudspeakers are designed to deliver professional quality audio for both background and foreground music/voice applications.

These installation speakers are weather resistant (IP54 Rated) so can be used in indoor and outdoor environments. They feature a compact and elegant design that is perfect for stylish environments where space is at a premium.

The speakers can be used in various applications from small-sized venues to mid/large-sized venues. They particularly fit in facilities that require high-quality background/foreground music such as cafes, bars and restaurants, hotel lobbies and retail stores etc.

The Inter-M WS Series is composed of 4 models of different sizes and output ranges to suit various purposes. Sizes range from 2.5", 4", 5" and 6.5" with outputs of 15W, 30W, 50W & 80W. All of the WS Series speakers are available in Black or White.

  • WS15T - Compact 2.5", 15W Full Range Loudspeaker

  • WS30T - 4", 30W Two-Way Loudspeaker

  • WS50T - 5", 50W Two-Way Loudspeaker

  • WS80T - 6.5", 80W Two-Way Loudspeaker

The Series has been applied with a newly developed Full-Range unit, HF driver and LF driver unit to provide high-power clear sound without distortion.

Inter-M WS Speaker Dispersion and Distance. 2-way asymmetric horn technology for an optimised sound system.

Inter-M WS-15T Speaker Dispersion and Distance

The Inter-M WS Series Loudspeakers are IP54 Rated

The Inter-M WS Series Loudspeakers are IP54 Rated so can be installed both indoors and outdoors.

 IP 54 weather resistant design

View the Inter-M range of products HERE

See SPECIFICATION tab for technical specs

IP ratings explained for outdoor background audio speakers

SPECS & DOWNLOADS

Inter-M WS15T Loudspeaker Specifications

  • Type: 1 way passive
  • Frequency Range: (-10 dB) 110Hz ~ 20kHz
  • Component: 4"
  • Power Rating Continuous (AES Std): 15W, Program: 30W, Peak: 60W
  • Sensitivity: (1 m/1 W) 84dB
  • Maximum SPL: (Peak) 102dB
  • Nominal Coverage (1kHz): 90°
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 2/4/8/15
  • Low-Frequency Transducer: Paper Cone with impregnation
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: KBKT15
  • Colour: Black / White
  • Dimensions: 120(H) x 92(W) x 114(D) mm
  • Weight (Gross): 1.17kg

Inter-M WS30T Loudspeaker Specifications

  • Type: 2 way passive
  • Frequency Range: (-10 dB) 100Hz ~ 20kHz
  • Component LF: 4 inch / HF: VC 13mm
  • Power Rating Continuous (AES Std): 30W, Program: 60W, Peak: 120W
  • Sensitivity: (1 m/1 W) 85dB
  • Maximum SPL: (Peak) 106dB
  • Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage: Far Field 60°, Near Field 120°, Vertical Coverage: upward +20°, downward -40° (On Axis)
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 1.9/3.8/7.5/15/30W
  • Low-Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
  • High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: UBKT30 / KBKT30
  • Colour: Black / White
  • Dimensions: 210(H) x 139(W) x 129(D) mm
  • Weight (Gross): 2.24kg

Inter-M WS50T Loudspeaker Specifications

  • Type: 2 way passive
  • Frequency Range: (-10 dB) 100Hz ~ 20kHz
  • Component LF: 5 inch / HF: VC 13mm
  • Power Rating Continuous (AES Std): 50W, Program: 100W, Peak: 200W
  • Sensitivity: (1 m/1 W) 87dB
  • Maximum SPL: (Peak) 110dB
  • Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage : Far Field 60°, Near Field 120°, Vertical Coverage : upward +20°, downward -40° (On Axis)
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 3.3/6.5/13/25/3.3W
  • Low Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
  • High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: UBKT30 / KBKT30
  • Colour: Black / White
  • Dimensions: 250(H) x 173(W) x 150(D) mm
  • Weight (Gross): 3.08kg

Inter-M WS80T Loudspeaker Specifications

  • Type: 2 way passive
  • Frequency Range: (-10 dB) 100Hz ~ 20kHz
  • Component LF: 6.5 inch / HF: VC 13mm
  • Power Rating Continuous (AES Std): 80W, Program: 160W, Peak: 320W
  • Sensitivity: (1 m/1 W) 90dB
  • Maximum SPL: (Peak) 115dB
  • Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage : Far Field 60°, Near Field 120°, Vertical Coverage : upward +20°, downward -40° (On Axis)
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 5/10/20/40W
  • Low Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
  • High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: UBKT80 / KBKT30
  • Colour: Black / White
  • Dimensions: 311(H) x 210(W) x 169(D) mm
  • Weight (Gross): 4.65kg

Inter-M WS Series Loudspeakers - PDF Download File

Download the WS Series Spec Sheet Here

}
