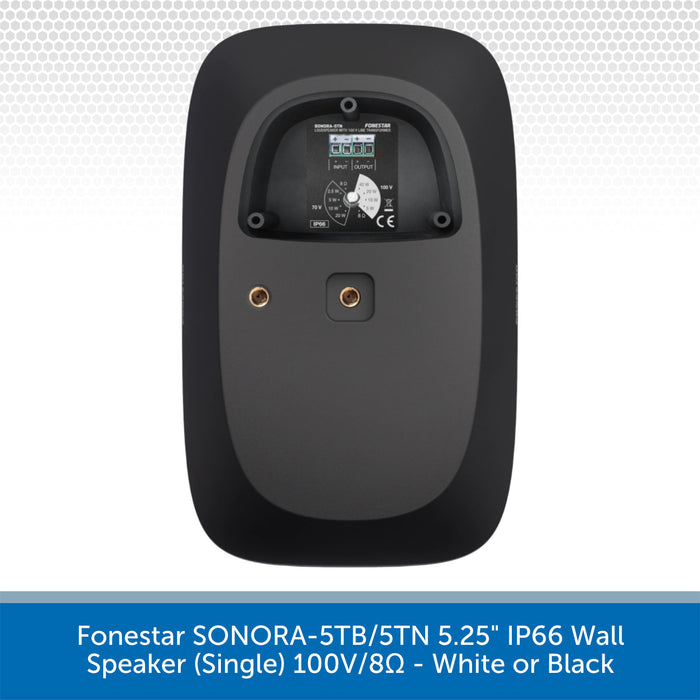

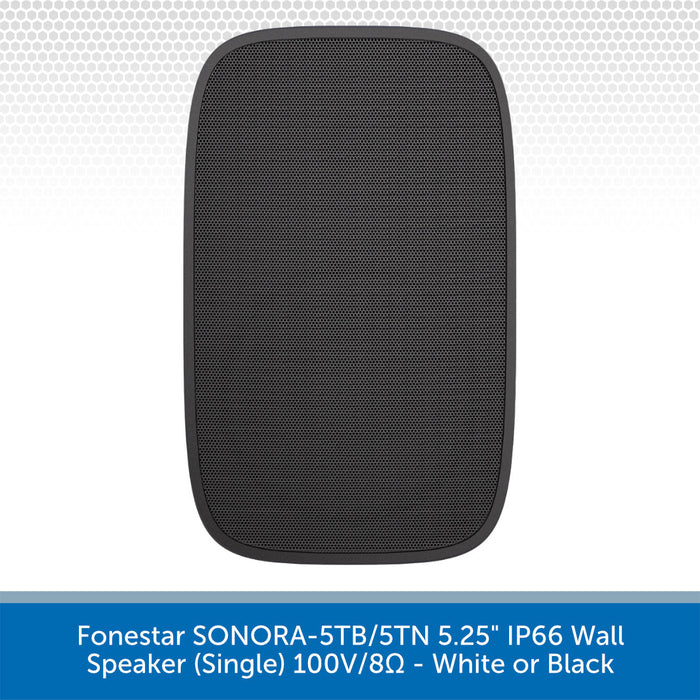

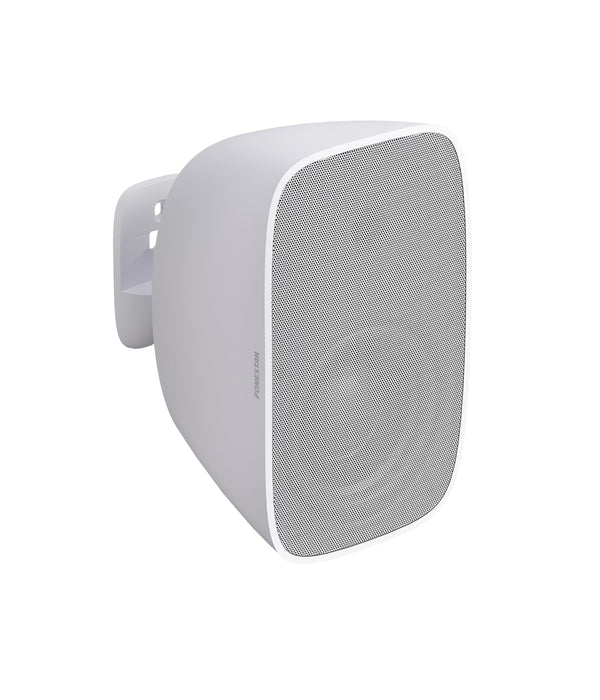

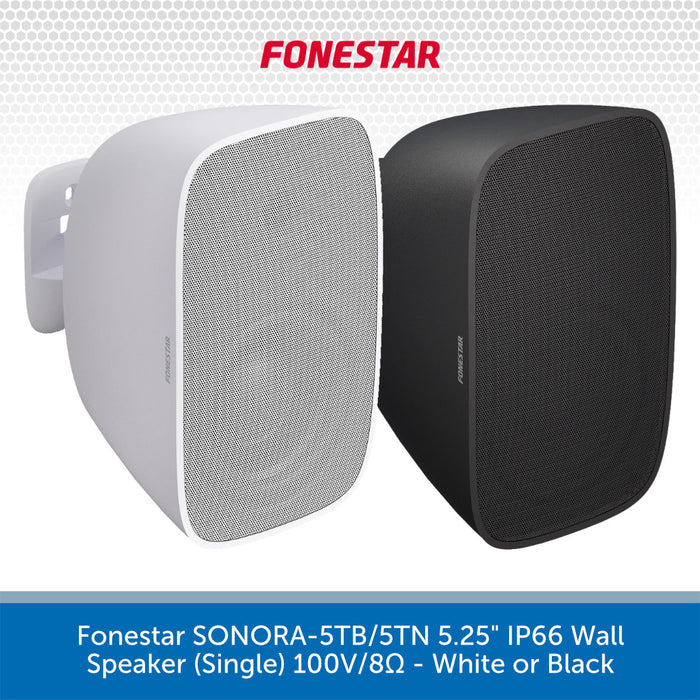

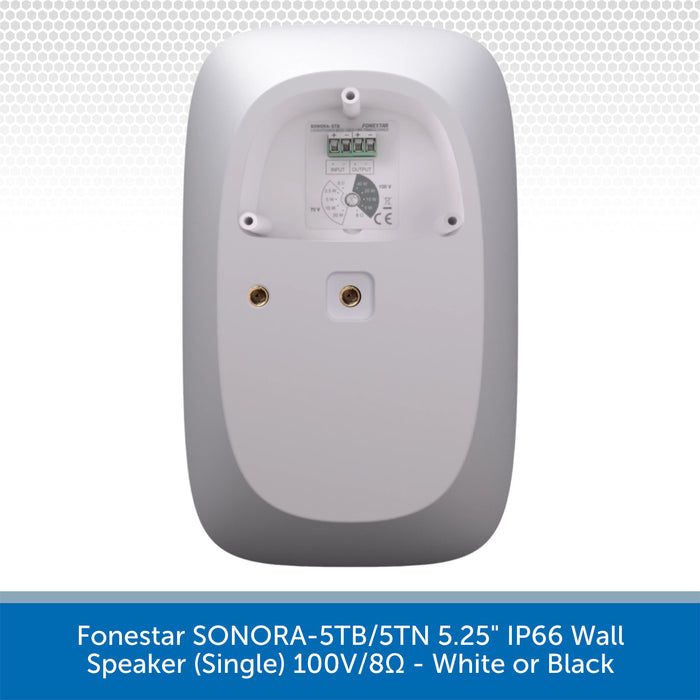

Fonestar SONORA-5TB/5TN 5.25" IP66 Wall Speaker (Single) 100V/8Ω - White or Black
DETAILS
The Fonestar SONORA-5TB/5TN is a durable 5.25" wall-mount speaker equipped with both 100V line transformer and low-impedance (8Ω) operation, providing flexibility for various audio setups.
Engineered for outdoor and marine environments, this speaker features an IP66-rated aluminium grille and weatherproof housing, ensuring reliable performance in challenging conditions.
Designed for public address systems, background music, and ambient sound, the SONORA-5TB/5TN offers a balanced sound experience, thanks to its 5.25" polypropylene woofer and 1" tweeter.
The speaker is built to deliver clear, distortion-free sound with multiple 100V power tap options—40W, 20W, 10W, and 5W—making it adaptable for different spaces and audio requirements. Installation is simple with its weather-resistant mounting bracket, stainless steel screws, and safety cable included.
Whether you're setting up audio for public spaces or outdoor areas, this speaker ensures a seamless combination of durability and sound quality.
Fonestar SONORA-5TB/5TN Key Features:
- 5.25" wall speaker with integrated 100V transformer and 8Ω low-impedance option
- Power handling: 80W max, 40W RMS
- IP66-rated protection for outdoor and marine environments
- Aluminium grille and UV-resistant ABS housing for enhanced durability
- 100V power tappings: 40W, 20W, 10W, 5W; 8Ω low-impedance mode
- High sound pressure level of 102.2 dB ensures clear and powerful audio
- Includes weatherproof adjustable bracket, stainless steel screws, and steel safety cable for easy installation
Fonestar SONORA-5TB/5TN is Ideal For:
- Public address and background music in cafés, restaurants, and hospitality spaces
- Outdoor installations such as patios, terraces, and garden areas
- Retail environments, including shopping centres and supermarkets
- Marine environments like boats and coastal locations
- Ambient sound in public venues and commercial spaces
SPECS & DOWNLOADS
Fonestar SONORA-5TB/5TN PDF Spec Sheet > DOWNLOAD HERE
Fonestar SONORA-5TB/5TN Specifications
-
Power: 80 W max., 40 W RMS
-
Loudspeakers: 1 x 5 ¼" polypropylene woofer, 1 x 1" tweeter
-
Frequency Response: 80-20,000 Hz
- Impedance: 100V, 8 Ω
- 100V Power Tappings: 40W, 20W, 10W, 5W
-
Sensitivity: 88.3 dB @ 1 W/1 m
-
Maximum Sound Pressure: 102.2 dB @ max. W/1 m
-
Coverage: H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
- Material: ABS (UV resistance), Aluminium mesh grille, with powder-coated finish, Weather-resistant mount, Stainless steel screws
-
Switch: W selector in high Z and low Z
-
Connectors: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
-
Temperature Range: -10°C ~ 60°C
-
Colour: White (RAL 9003), Black (RAL 9005)
- Dimensions: Loudspeaker: Loudspeaker: 162 x 263 x 147 mm depth, Mount wall plate: 68 x 110 mm, Loudspeaker with mount: 216 mm depth
- Weight: 2.2 kg
