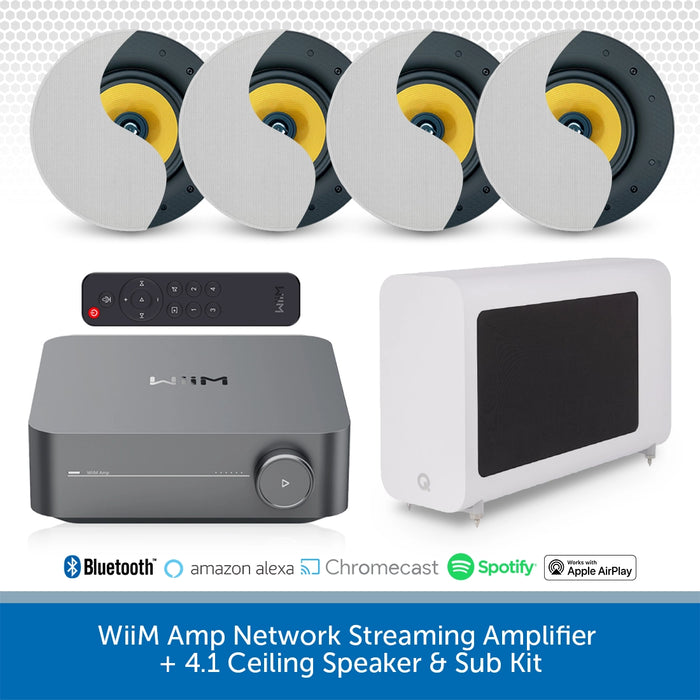

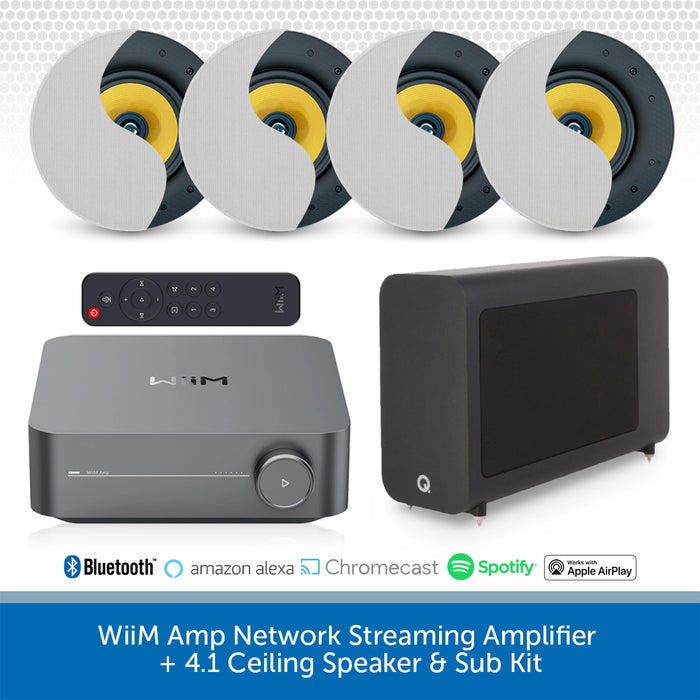

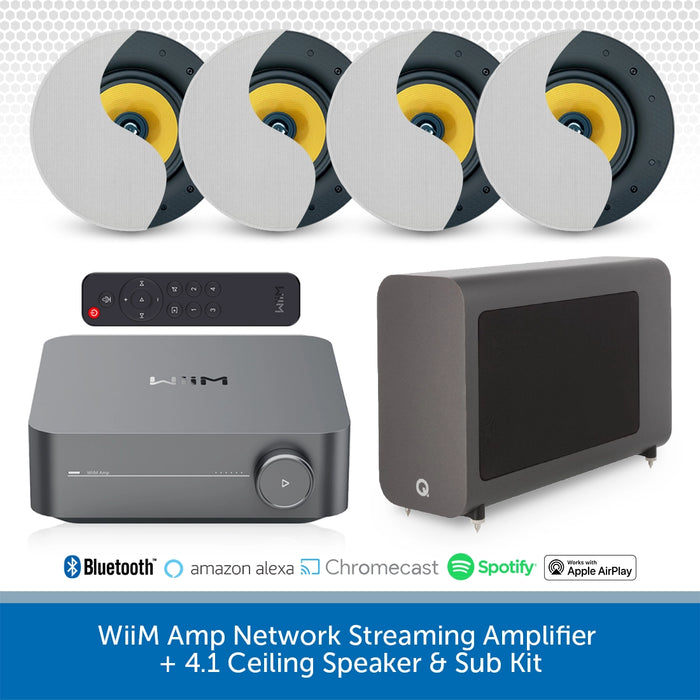

WiiM Amp Network Streaming Amplifier + 4.1 Ceiling Speaker & Sub Kit

DETAILS

This all-in-one bundle pairs the fantastic WiiM Amp with outstanding ceiling speakers and subwoofer for a complete and powerful home cinema setup.

Everything You Need for Your Premium Audio Streaming Home Cinema System
This fantastic bundle brings together the compact yet full-featured WiiM Amp Network Streaming Amplifier with both 4 fantastic PCS-60 ceiling speakers and a superb subwoofer - everything you need to create the ultimate low-fuss all-in-one audio streaming platform and home cinema system.

Also included is 25m of high-quality, transparent hi-fi speaker cable for connecting the speakers to the amplifier and an RCA-to-RCA cable kit for connecting the subwoofer.

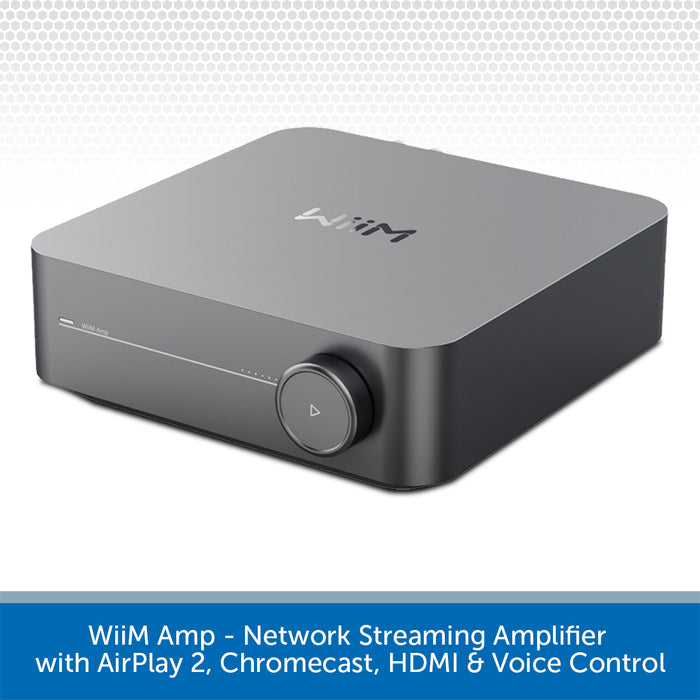

WiiM Amp - Small Yet Mighty
The sleek and compact WiiM Amp offers Bluetooth, Wi-Fi, USB and HDMI connectivity as well as extensive compatibility with both streaming services and voice assistants, making it exceptionally versatile. Link devices to easily create a multi-room system and enjoy hands-free control of your audio thanks to integration with Alexa, Chromecast and Google Home.

Advanced amp circuitry offers a fantastic 60W output per channel - when paired with your chosen 4 ohm speakers, this is extended even further to 120W per channel, offering room-filling sound and exceptional sound quality. And if you desire more bass, the dedicated sub output allows your favourite active subwoofer to join the party too!

Download the intuitive WiiM mobile app and stream your favourite tunes from popular platforms such as Spotify, Tidal, Amazon Music, and more. Effortlessly navigate through playlists, discover new music, and tailor your audio settings to suit your preferences while customising your sound with extensive EQ options.

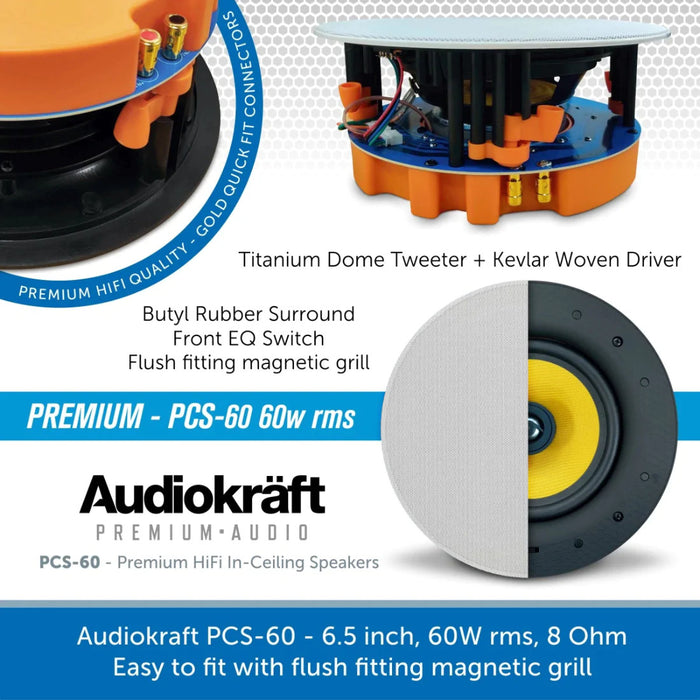

AudioKraft PCS-60 Premium 6.5" Ceiling Speakers - 60W / 8 ohms
A premium system needs premium speakers - and the AudioKraft PCS-60 fulfills this role perfectly. Frameless, stylish and discrete, they feature a robust black metal grille, woven Kevlar cone and butyl rubber surround with 'dog-leg' installation, ensuring that they are extremely fast fitting and accessible from the front with accessible environmental EQ controls.

Each speaker offers 60W of high-quality sound per speaker as well as a 2-way co-axial speaker system - all of which equates to a superior and powerful sound reproduction.

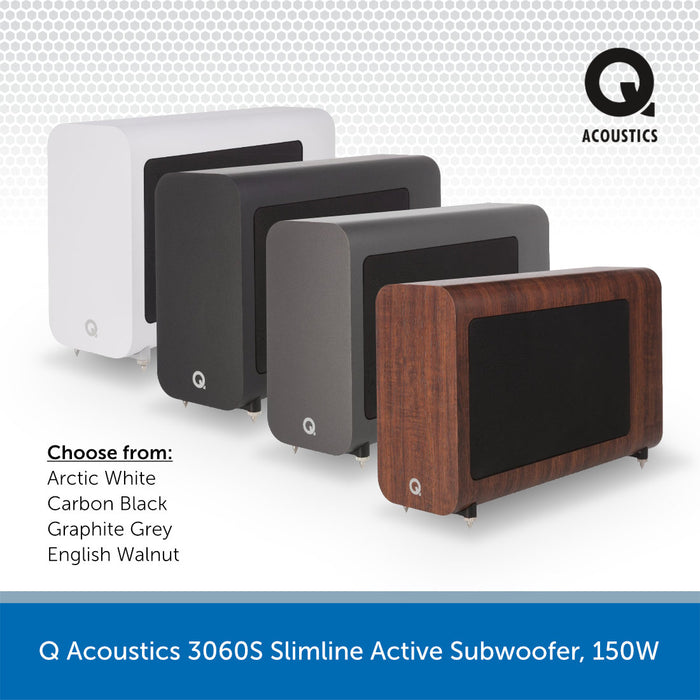

Q Acoustics 3060S Slimline Active Subwoofer - 150W / Class D
A home cinema system is not complete without earth-shattering bass, and the 3060S slimline active subwoofer from Q Acoustics is exactly what you need. Stylish, compact and available in a number of colours and finishes, it will fit in perfectly with any setup while offering an 8" 150W driver with a clean, deep bass response that boasts no distortion, even when the volume is turned up.

The rear panel contains a level and adjustable crossover control, as well as and RCA input and power socket, all hidden behind a removable magnetic cover which compliments the clean design.

Available in four colours - White, Grey, Black and Walnut.

AudioKraft Clarion Series Transparent Hi-Fi Speaker Cable
This high-quality hi-fi speaker cable is perfect for bringing your amp and speakers together. Flexible and transparent, it is discreet and unobtrusive - no unsightly thick cables trailing across your home - and offers detailed sound with quality reproduction.

It is a 2-core cable and has a CSA of 2.5mm with a maximum amperage of 25A.

What's included

• 1 x WiiM Amp
• 1 x Quick Start Guide
• 1 x Bluetooth Voice Remote
• 1 x 100-240v AC Power Cable
• 1 x HDMI Cable
• 1 x RCA Audio Cable
• 1 x Digital optical audio cable (Toslink Cable)
• 4 x PCS-60 ceiling speakers
• 1 x Q Acoustics 3060S Subwoofer
• 25m Clarion transparent hi-fi speaker cable
• RCA-to-RCA cable kit

SPECS & DOWNLOADS

Download the WiiM Amp PDF User Manual HERE >

Download the PCS-60 User Manual HERE >

WiiM Amp Specifications

Audio Input

• HDMI ARC

• Optical/SPDIF
• RCA

Audio Output

• Passive Speaker Terminal

• Subwoofer Output
• SNR: 98 dB
• THD + N: 0.002% (-92 dB)

Power Input:  100-240V 50/60Hz AC Power

Network:  802.11 b/g/n/ac 2.4 GHz and 5 GHz dual band Wi-Fi
10/100M Ethernet

Bluetooth:  Bluetooth 5.0, A2DP, AVRCP, Support SBC, AAC Codec

Audio Codec:  MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG, AIFF

Streaming Protocol:  AirPlay 2, Chromecast Audio, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, Qplay 2.0, Squeezelite

Streaming Services in App:  Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound Machine, etc.

LED:  Three-color status LED - Red, Green, and White
Six Volume LED

Controls:  Volume knob, Play/Pause, and more

Dimensions: 190 x 190 x 63 mm (7.48 x 7.48 x 2.48 inches)

Weight: 1.84 kg (4.1 lbs)

AudioKraft PCS-60 Specifications

• Nominal Impedance:    8Ω
• Power (RMS):     60W
• Driver:     6.5 inch
• Driver Material:     Kevlar Woven Cone
• Single Tweeter:     0.75 inch
• Tweeter Material:     Titanium Dome
• Frequency Response (±3db):     60 Hz-20 kHz
• Efficiency:     90dB
• Colour:     White (RAL 9010)
• Dimension:     Ø 227mm x 87mm
• Cut-out Size:     Ø 210mm
• Weight (Net):     1.52kg
• Weight (Gross):     2.00kg

Q Acoustics 3060S Active Subwoofer Specifications

• Enclosure type: Infinite Baffle

• Bass Unit: 200 mm (8 in)

• Frequency Response (+3 dB, -6 dB): 35 – 250 Hz

• Internal Amplifier Power: 150 W Class D

• Crossover Frequency: 35 – 250 Hz (var)

• Effective Volume: 10.6 L (647 cu in)

• Dimensions H/W/D cabinet: 300 x 480 x 150 mm (11.8 x 18.9 x 5.9 in)

• Dimensions H/W/D overall: 324 x 480 x 155 mm (12.8 x 18.9 x 6.1 in) overall

• Weight (per speaker): 8.5 kg (18.7 lbs)

Clarion Speaker Cable Specifications

• CSA:  2.5mm
• Strands:  2 x (79 x 0.2mmØ)2 x (79 x 0.2mmØ)
• Dimensions:  4.5 x 9.0mm
• Current:  25A max
