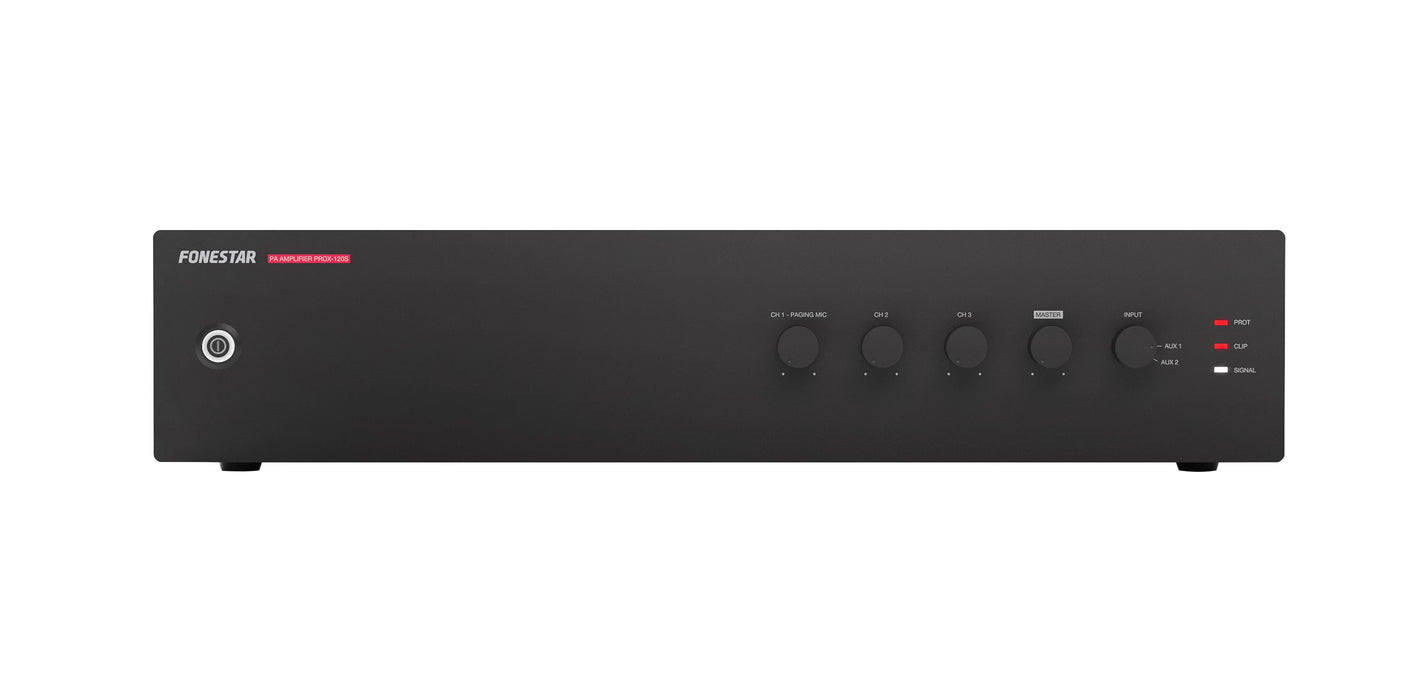

Fonestar PROX-120S 120W Mixer Amplifier, 100V/4Ω, 19" Rack Mountable
DETAILS
The Fonestar PROX-120S Mixer Amplifier is expertly designed for installations in commercial environments that require a high-quality and reliable amplifier solution.
Perfect for public address and piped music systems, this versatile amplifier supports both 100V and low impedance speakers, making it ideal for pubs, restaurants, places of worship, offices, schools, warehousing, and retail stores. Its simplistic design is user-friendly, ensuring easy operation for users of all experience levels.
Delivering 120W RMS power with exceptional audio fidelity, the PROX-120S features a dedicated Paging Mic input with VOX priority over channels 1-3, making it ideal for applications that necessitate important public address announcements over background music.
Each of the three microphone inputs comes with switchable +48V phantom power, allowing for the use of condenser microphones for enhanced sound quality. Additionally, the amplifier includes two AUX inputs, facilitating connections to external audio sources such as multimedia players, radios, and CD players.
For safety and reliability, the PROX-120S is equipped with an emergency mute input that overrides the 100V output when a signal is detected, such as from a fire alarm or lockdown system. With built-in protections against overcurrent, DC, and short-circuits, this amplifier is built to withstand the demands of commercial settings while providing high-quality sound.
Fonestar PROX-120S Key Features:
- Versatile Outputs: Compatible with both 100V and 4Ω speakers, suitable for diverse audio setups.
- Dedicated Paging Mic Input: VOX priority allows important announcements over music, enhancing communication.
- Multiple Inputs: Three mic inputs with switchable +48V phantom power and 2 x AUX inputs for various audio sources.
- Emergency Mute Function: Automatically overrides 100V output for safety during emergencies.
- User-Friendly Design: Simple controls for microphone volume, master volume, and tone adjustments ensure easy operation.
Fonestar PROX-120S is Ideal For:
- Places of worship
- Offices
- Warehousing
- Retail establishments
- Restaurants and bars
- Conference rooms
- Waiting areas
SPECS & DOWNLOADS
Fonestar PROX-120S PDF Spec Sheet > DOWNLOAD HERE
Fonestar PROX-120S Specifications
-
Power: 120 W RMS
-
Frequency Response: 40-20,000 Hz (-10 dB)
-
Distortion: THD+N: < 1% @ 1 kHz
-
S/N Ratio: >77 dB
-
Protections: Overcurrent, DC and short-circuit at the output
- Inputs: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock., CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector, Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω, Line signal level: 250 mV RMS (-12 dBV) / 100k Ω, 2 x AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω, 1 x emergency. Euroblock connector. Speaker line signal level 100 V, 1 x Mute (Emergency Priority) by contact closure. Euroblock connector
- Outputs: 1 line. 2 x RCA connector. 1.25 V RMS (+2 dBV) signal level, 100 V or 4 Ω speaker output. Connector screw terminals
-
Impedance: 4 Ω and 100 V line (83 Ω)
-
Operating Temperature: Operation: 0º ~ 40ºC
-
Maximum Humidity: 95%
- Power Supply: 230/115 V AC 50-60 Hz, 320 W, Fuse AC 230 V 3.15 A / 115 V 6 A
- Weight: 9.5 kg
