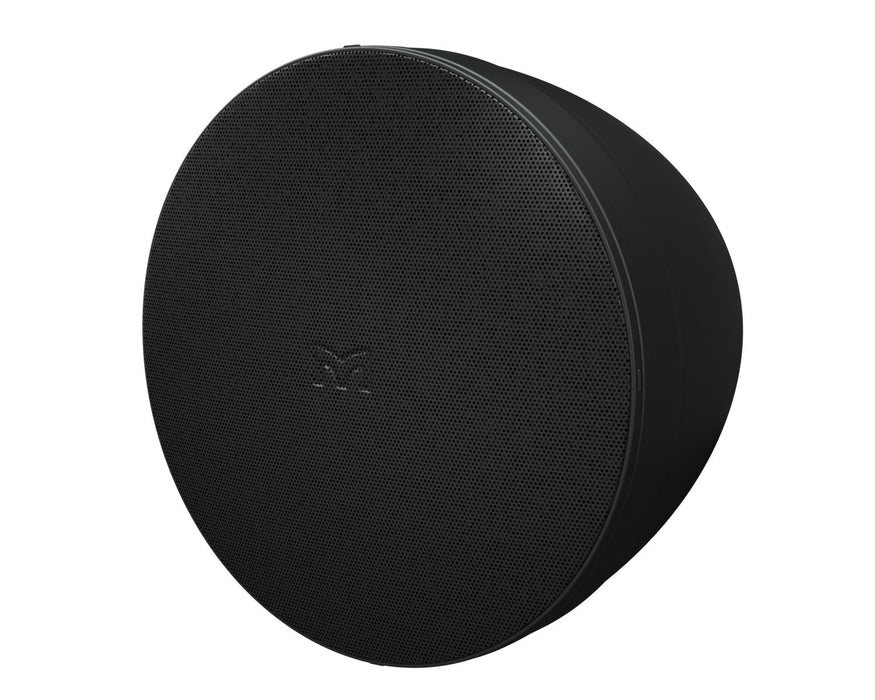

Martin Audio Adorn ACP55T 5.25" 2-Way Pendant Speaker, 100V - Black or White
DETAILS
The ACP-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotel atriums and exhibition spaces to retail outlets, bars and restaurants.
Comprising a 5.25” (100mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACP-55T produces 109dB peak output at 1 metre and delivers superb sound quality for both music and speech reproduction. Its stylish pendant enclosure is equipped with a single-point mounting system plus provision for attaching a safety cable.
The consistent and wide 150° conical coverage of the ACP-55T reduces the number of speakers required for even coverage — leading to a reduction in installation cost.
It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch at the top of the pendant enclosure. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high- frequency sections are individually protected against overload by auto-resetting thermal fuses.
Martin Audio Adorn ACP55T Key Features
- High performance two-way pendant speaker
- 5.25” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
- Wide 150° conical coverage pattern reduces speaker count required for even coverage
- 70V/100V multi-tap line transformer or 16-ohm low-impedance operation
- Low and high-frequency overload protection
- Quick release, bezel-less grille
- UL94V-0 rated baffle and enclosure
- 5-year warranty
- Black
Applications
- Retail outlets
- Cafes, bars and restaurants
- Museums and Houses of Worship
- Hotels, casinos and concourses
- Exhibition spaces and convention centres
- Transportation facilities
View the Martin Audio range of products HERE
SPECS & DOWNLOADS
Download the Product Data HERE >
Martin Audio Adorn ACP55T Specifications
-
Type: Passive two-way pendant speaker, ported bass reflex
- Frequency response: 98Hz-20kHz ± 3dB -10dB @ 56Hz
- Drivers: LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- Rated power: 50W AES, 200W peak
- Sensitivity: 86dB / 1W(4V) / 1m (full space)
- Maximum spl: 109db peak
- Transformer Taps: 100V: 30w / 15w / 7.5w | 70V: 30w / 15w / 7.5w / 3.75w
- Nominal Impedance: 16 Ohms
- Dispersion (-6db): 150° conical up to 7kHz
- Crossover: 3khz passive (lf and hf auto-resetting fuses)
- Recommended high-pass filter: 60hz 24db/oct
- Enclosure: UL 94V-0 rated ABS baffle and enclosure
- Finish: Black or White
- Grille: Perforated steel, powder-coated, bayonet fitting
- Connectors: Push terminals
- Fittings: Wall bracket included
- Dimensions: 246mm x 238mm
- Weight: 3.46kg (7.62lbs)
