Inter-M PX8000 8-Zone Audio Matrix System

by Inter-M
Original price £1,182.99 (inc. VAT) - Original price £1,182.99 (inc. VAT)
Original price £1,182.99 (inc. VAT)
£1,182.99 (inc. VAT)
£1,182.99 (inc. VAT) - £1,182.99 (inc. VAT)
Current price £1,182.99 (inc. VAT)
SKU PX8000
DETAILS

The PX8000 8-zone matrix system from Inter-M is a highly flexible PA solution for multi-room applications. It is ideally suited for applications in hotels, in restaurants and bars, in conference rooms, schools, sports facilities and fitness centres.

The PX8000 Audio matrix system is ideal for multi-zone audio control, with local controls in each zone.

It provides eight different audio inputs for sources such as media players, PCs and radios, and these can be distributed to 8 output zones, assigned as required.

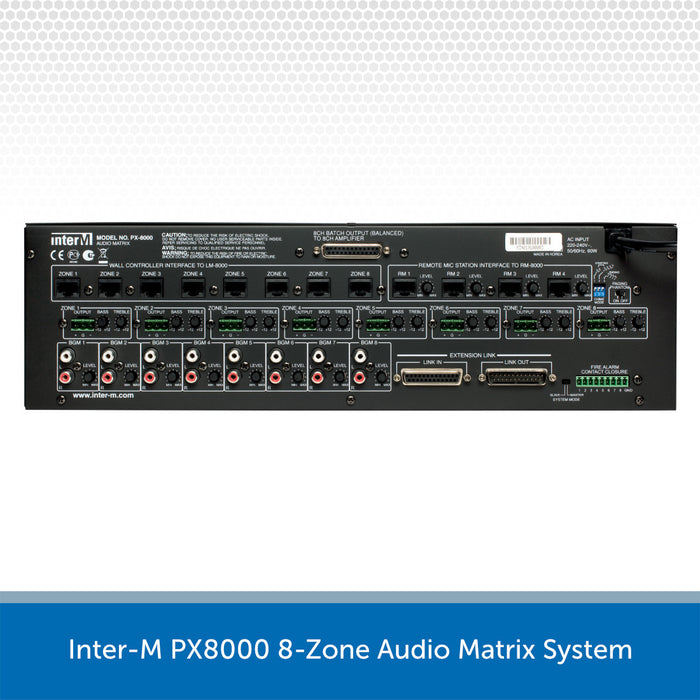

Each signal input on the PX8000 features its own level and tone control on the rear of the unit (to avoid 'tampering hands'!); whereas each output zone is controlled by a simple slide fader. Above the fader is a selector switch to easily choose the audio input source for each zone.

The matrix can also be expanded to another PX8000 via the link connections.

For announcements, the RM8000 microphone can be contacted via CAT5. The RM8000 can page to each zone individually or all at once when required. Up to 4 RM8000 microphones can be connected to a single PX8000 in situations where multiple paging points are needed.

To control the system, up to 8 LM8000 wall panels can be connected via CAT5. This control surface allows the user to select the audio source and volume in that zone. It also offers local input in the way of a 6.35mm microphone jack and 3.5mm AUX jack, with input gain for each.

Key Features

  • 8 IN - 8 OUT Matrix Unit
  • Simple and easy to use - clear LED indications, illuminated buttons and fader-type volume controls
  • BGM input level LED/output level meter (LEDs)
  • Remote control per zone via LM8000 (selectable via front panel)
  • Paging via remote MIC (up to 4 units) or via front panel zone control panel
  • Auto address allocation for RM8000/LM8000 on connection
  • Monitor Loudspeaker - for monitoring the selected audio input source
  • Emergency Message - in-built Digital Message Store allowing recording and broadcast of an emergency message, activated by dry contact closure per zone (if no emergency message is recorded, this facility can be used as an Emergency Mute).
  • Multiple Units are linkable via D-sub 25pin


See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

PX8000

Paging Mic: 50dB (Balanced)
BGM Audio Input: 8 x -10dB (Unbalanced)
Audio Output: 0dB (Balanced)
Sampling Frequency: 8kHz
Recording Duration: 30 seconds
Total Harmonic Distortion: Less than 0.03% (20kHz LPF)
Signal to Noise Ratio: Greater than 75dB (20kHz LPF)
Power Source: 230v AC
Dimensions: 482(W) x 132(H) x 380(D) mm
Weight (Net): 8.50kg
Weight (Gross): 10.67kg

LM8000 Wall Plate

Mic Input: 60dB (Balanced)
Audio Output: 0dB (Balanced)
Maximum Cable Distance: 300 metres
Power Source: Powered from PX8000
Dimensions: 200(W) x 70(H) x 206(D) mm
Weight (Net): 1.40kg
Weight (Gross): 1.92kg

RM8000 Paging Microphone

Mic Input: -50dB (Balanced)
BGM Audio Input: -10dB (Balanced)
Audio Output: 0dB (Balanced)
Maximum Cable Distance: 300 metres
Power Source: Powered from PX8000
Dimensions: 70(W) x 114(H) x 52(D) mm
Weight (Net): 0.13kg
Weight (Gross): 0.18kg



Inter-M PX8000 Matrix System - PDF file download

Download the User Manual HERE





}
