DETAILS
Neutrik Speaker Plug & Socket Kit – a complete solution for fast, reliable, and hassle-free speaker connections.
Designed for both pro audio enthusiasts and sound engineers, this kit offers a simple plug-and-play method to link speaker wires between amplifiers and speakers without the need to wire up raw speaker cables.

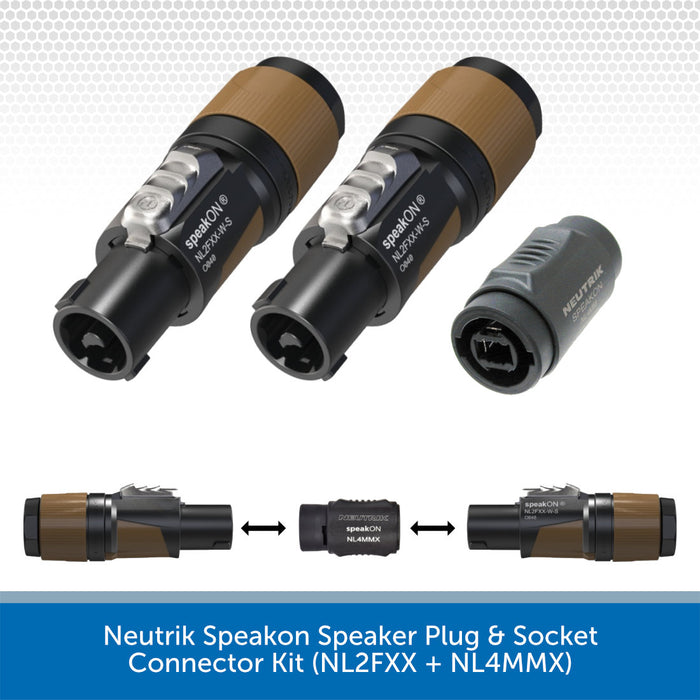

This kit includes:
- 2 x Neutrik NL2FXX-W-S 2-Pole speakON Plugs: High-quality, durable speaker plugs designed for secure connections and reliable signal transfer. These plugs feature a twist-lock mechanism, ensuring a tight, vibration-resistant fit for uninterrupted performance.
- 1 x Neutrik NL4MMX 4-Pole speakON Adapter: A rugged and reliable adapter that easily connects two speakON cables, allowing for extended speaker cable runs while maintaining signal integrity.
Key Features:
- Plug-and-Play: No need to deal with raw speaker wires—simply plug in and enjoy instant connections between your amplifier and speakers.
- Reliable Performance: Designed to deliver optimal signal transfer without interference, making it ideal for both live sound and studio applications.
- Secure Locking Mechanisms: The speakON connectors ensure a firm, vibration-resistant connection, keeping your setup secure even in demanding environments.
- Durable Build: Both the NL2FXX-W-S plugs and NL4MMX adapter are built with Neutrik’s renowned reliability, making them perfect for frequent use in professional settings.
This Speaker Plug & Socket Kit is the ideal solution for those who want to simplify speaker connections while ensuring top-notch performance and long-lasting durability in any pro audio setup.
SPECS & DOWNLOADS
Neutrik NL2FXX-W-S Specifications
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: > 10 GΩ (initially)
- Number of electronical contacts: 2
- Rating Europe: IEC 61984: 37 A 250 V AC
- Rating USA: UL1977: 35 A 250 V AC
- Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
- Cable O.D.: 6 – 12 mm
- Lifetime: typically 5’000 mating cycles
- Wiresize (mm): 1.5 – 4 mm²
- Wiresize (AWG): 17 – 11 AWG
- Locking device: Twist lock
- Termination: screw type terminals
- Contact plating: Ag
- Contacts: Copper Alloy
- Insert: Polyamide (PA6.6)
- Locking element: Zinc diecast
- Shell: Polyamide (PA6) / TPE
- Strain relief: Polyketone
- Bushing: Polypropylene / TP
- Temperature range: -33 °C to +80 °C
- Protection class: IP20
-
Flammability acc. to UL94: V-0
Neutrik NL4MMX Specifications
- Contact resistance: ≤ 3 mΩ (after lifetime)
- Dielectric strength: 4 kVdc (peak)
- Insulation resistance: > 1 GΩ (after dampheat)
- Rated current per contact: 15 A rms continuous
- Rated current per contact: 30 A audiosignal, duty cycle 50 %
- Rated voltage: 250 V (Insulation)
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Contact plating: 4 µm Ag
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6 30 % GR)
- Shell: Polyamide (PA 6 30 % GR)
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
