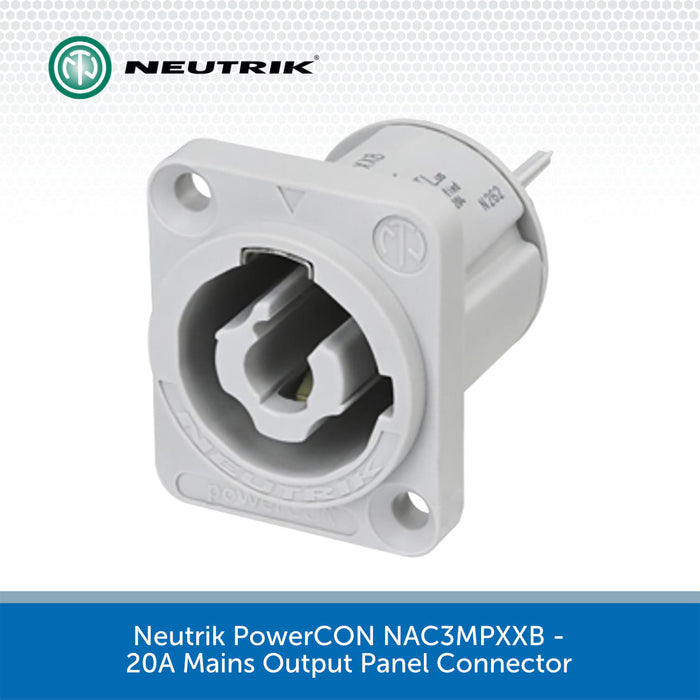

Neutrik PowerCON NAC3MPXXB - 20A Mains Output Panel Connector

by Neutrik
Sold out
Original price £4.99 (inc. VAT)
Original price £4.99 (inc. VAT) - Original price £4.99 (inc. VAT)
Original price £4.99 (inc. VAT)
Current price £4.99 (inc. VAT)
£4.99 (inc. VAT) - £4.99 (inc. VAT)
Current price £4.99 (inc. VAT)
SKU NAC3MPXXB
DETAILS

The Neutrik powerCON NAC3FCA-1 offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards.

The NAC3MPXXB offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the 'Speakon' twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure Neutrik strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current 'Speakon' connectors).

Cable connectors have screw terminals (max. wire size 4mm), panel connectors have 'Faston' 4.8 ×0.5mm 'spade' terminals. NAC3MPXX panel connectors are airtight. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles. Panel connectors offer two plain holes for M3 screws and bolts offering D-series ‘Universal’ mounting.

The series has two variants, the A (inlet) and B (outlet) types. Both are similar but have different keying to prevent mismating and are different colours. This means it is impossible to produce a short circuit with correctly wired connectors.

Type A is for power inlet, and is colour coded blue (equivalent in function to IEC 60320 C13 cable female and C14 panel male). Type B is for power outlet and is colour coded grey (equivalent in function to IEC 60320 type F panel female and type E cable male).

Key Features

  • Lockable single phase connector

  • Certified according to IEC 60320-1 & UL 60320-1

  • 3 contacts for line, neutral and premating safety ground

  • Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3

  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating

  • Extremely robust and reliable

  • IEC 62368-1 compliant

  • UL94 V-0 materials used
