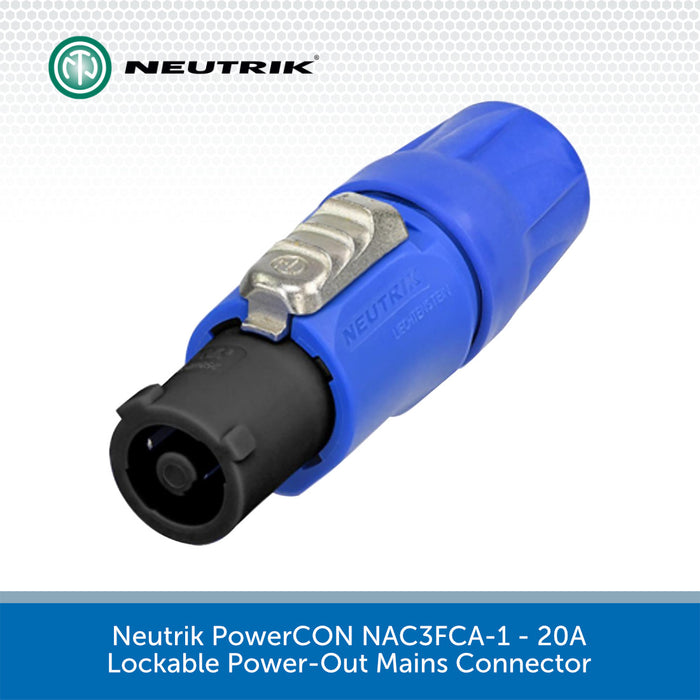

Neutrik PowerCON NAC3FCA-1 - 20A Lockable Power-Out Mains Connector

by Neutrik
Sold out
Original price £7.99 (inc. VAT) - Original price £7.99 (inc. VAT)
Original price £7.99 (inc. VAT)
£7.99 (inc. VAT)
£7.99 (inc. VAT) - £7.99 (inc. VAT)
Current price £7.99 (inc. VAT)
SKU NAC3FCA-1
DETAILS

The Neutrik powerCON NAC3FCA-1 offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards.

The NAC3FCA-1 offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the 'Speakon' twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure Neutrik strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current 'Speakon' connectors).

Cable connectors have screw terminals (max. wire size 4mm), panel connectors have 'Faston' 4.8 ×0.5mm 'spade' terminals. NAC3MPXX panel connectors are airtight. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles. Panel connectors offer two plain holes for M3 screws and bolts offering D-series ‘Universal’ mounting.

The series has two variants, the A (inlet) and B (outlet) types. Both are similar but have different keying to prevent mismating and are different colours. This means it is impossible to produce a short circuit with correctly wired connectors.

Type A is for power inlet, and is colour coded blue (equivalent in function to IEC 60320 C13 cable female and C14 panel male). Type B is for power outlet and is colour coded grey (equivalent in function to IEC 60320 type F panel female and type E cable male)..

Key Features

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating

  • Fast and easy twist lock latching system

  • Extremely robust and reliable

  • Ergonomic design

  • Unique Neutrik chuck type strain relief

  • Improved kink protection by two-component bushing

  • UL, cUL recognized components, VDE certified, SEV approved

  • V-0 Flammability rated insert

  • Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles

SPECS & DOWNLOADS

Neutrik NAC3FCA-1 Specifications

  • Cable O.D:  6 - 15 mm (1)
  • Lifetime:  > 1000 mating cycles
  • Wiresize:  2,5 mm² / 12 AWG
  • Locking Device:  Quick Lock
}
