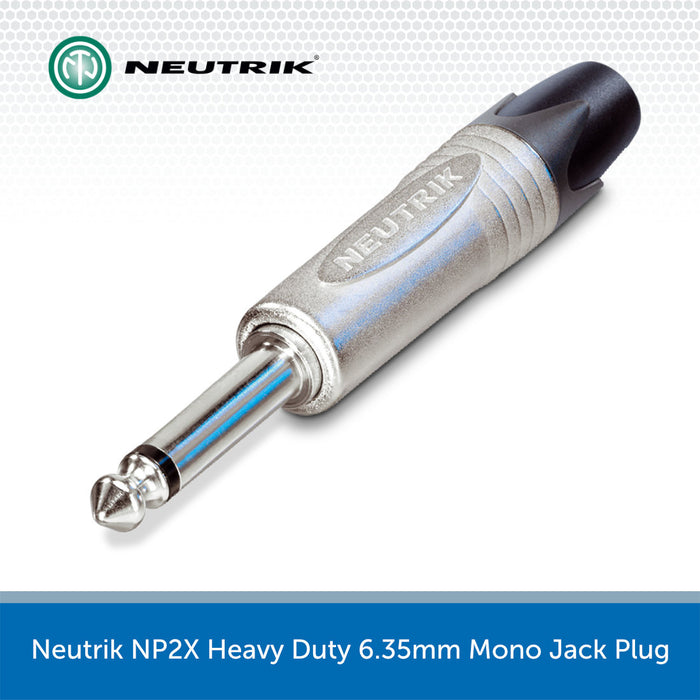

Neutrik NP2X Heavy Duty 6.35mm Mono Jack Plug

by Neutrik
Original price £4.99 (inc. VAT) - Original price £4.99 (inc. VAT)
Original price
£4.99 (inc. VAT)
£4.99 (inc. VAT) - £4.99 (inc. VAT)
Current price £4.99 (inc. VAT)
SKU NP2X
DETAILS

Neutrik NP2X Heavy Duty 6.35mm Mono Jack Plugs feature slimline bodies and precision-machined contacts.

The Neutrik NP2X Heavy Duty Mono A-gauge 6.35mm Jack Plugs are perfect for all your audio needs. These plugs feature slimline bodies and chuck-type strain relief, ensuring that your cables stay securely in place. With an overall diameter of 14.5mm, they are suitable for even the highest-density jackfields with a 15.88mm jack pitch.

The Neutrik NP2X jacks are designed to accept cables ranging from 4.0mm to 7.0mm in diameter and feature precision-machined one-piece contacts for optimal signal transmission.

These jacks are built to last and can handle even the toughest environments. Trust us for all your audio connectivity needs.

Features

  • Extra slim 1/4" plug for the highest packing density
  • Proven chuck-type strain relief for reliable cable retention
  • Precision machined one-piece contacts - avoid hook-up of tip contact
  • Robust diecast shell in a stylish design
  • Sleek design for best handling convenience
SPECS & DOWNLOADS

Neutrik NP2X Specifications

  • Contact resistance: Depends on mating connector mΩ
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 2 (initial) GΩ ≥ 1 GΩ (after damp heat test)
  • Rated current per contact: Depends on mating connector A
  • Rated voltage: < 50 V
}
