ADS500 500W 100V PA Mixer Amplifier

Original price £559.00 (inc. VAT) - Original price £559.00 (inc. VAT)
Original price £559.00 (inc. VAT)
£559.00 (inc. VAT)
£559.00 (inc. VAT) - £559.00 (inc. VAT)
Current price £559.00 (inc. VAT)
SKU 10-6236-C10
DETAILS

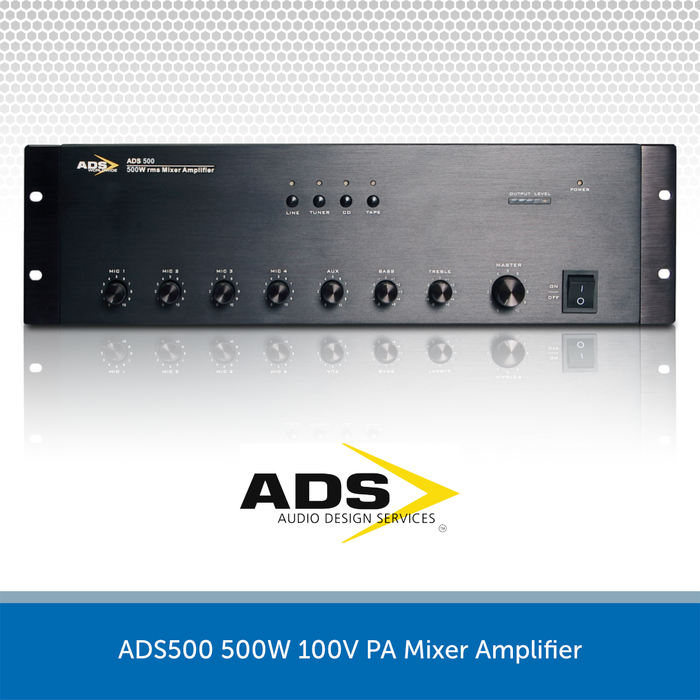

The ADS500 is a 1 x 500W 100V Line Mixer Amplifier designed for medium to large-scale public address & music reinforcement.

The ADS 500 is a 500w 100v line public address amplifier.

The ADS 500 amplifier brings more than just basic functionality, ADS reliability and great value to the ADS range for a variety of commercial and industrial installations.

The ADS500 amplifier is a 3U mixer amplifier featuring 70V, 100V and 4-16ohm speaker outputs & 4 universal balanced XLR mic inputs with phantom power.

There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in pre-announcement chime with volume control and remote chime trigger.

The REC output for tape recorder and PRE output, AMP input for adding extra signal processor like mixer, graphic equalizer.

Volume control over Mic1-4, aux, master & overall treble/bass controls are provided.

Complete protection includes short circuit and thermal protection, current limiter and overloading.

    SPECS & DOWNLOADS

    ADS500 Mixer Amplifier Specifications

    • Rated Power Output: 500W
    • Power Output (RMS): 500W
    • AC Power: ~110V/60Hz or ~230V/50Hz
    • AC Power Consumption: 400W
    • Frequency Response: 50Hz~16KHz(+1dB, -3dB)
    • Aux Input: AMP: 1000mV/10KΩ, Unbalanced RCA input
    • Input: AMP: 1000mV/10KΩ, Unbalanced RCA input
    • Line Input: MIC TAPE, CD, TUNER, LINE INPUT(AUX): 350mV/10KΩ, Unbalanced RCA input
    • Mic Inputs: MIC 1, 2, 3, 4: 2.5mV/2KΩ, Balanced XLR input
    • Output Impedance: 50V, 70V, 100V & 4~16Ω
    • Phantom Power: +48V with LED indicator
    • Signal/Noise ratio, Mics: MIC 1, 2, 3, 4: 66dB
    • Signal/Noise ratio, Aux: AUX: 80dB
    • Tone Control: Bass: +-10dB at 100Hz, Treble: +-10dB at 10KHz
    • Colour / Finish: Black
    • Dimensions: 484x358x132mm
    • Weight: 16

    Download the User Manual HERE

    Download the Data Sheet HERE

      }
