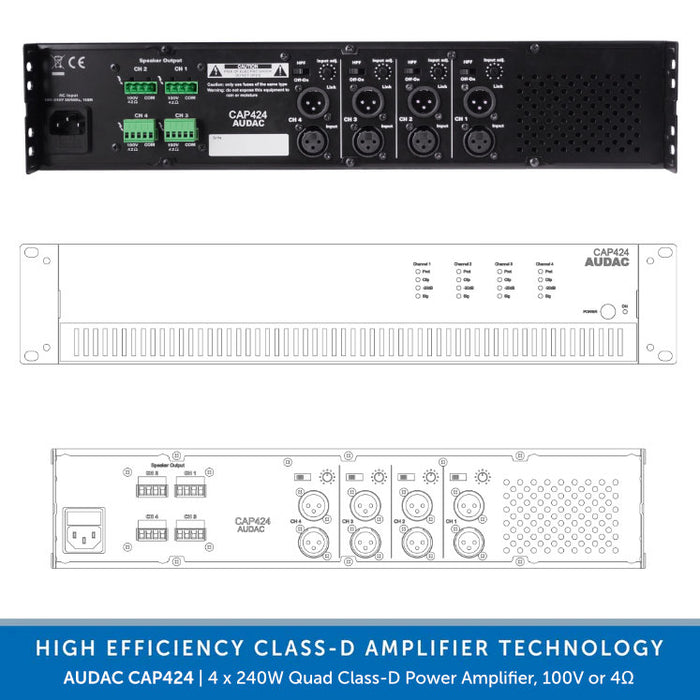

AUDAC CAP424 - 4 x 240W Quad Class-D Power Amplifier, 100V or 4Ω

by AUDAC
Original price £1,499.00 (inc. VAT) - Original price £1,499.00 (inc. VAT)
Original price £1,499.00 (inc. VAT)
£1,499.00 (inc. VAT)
£1,499.00 (inc. VAT) - £1,499.00 (inc. VAT)
Current price £1,499.00 (inc. VAT)
SKU CAP224
DETAILS

The AUDAC CAP424 is a quad channel (4x 240W) Class-D 100V Line Power Amplifier perfect for professional PA, AV and background music installations.

The CAP424 offers four channels and has an output power of 240 watts per channel. This way, a flexible solution is created for multi-zone audio distribution systems with four independent zones. They are designed as no-nonsense amplifiers with only the necessary controls and connections which creates great simplicity in use and installation.

The high efficiency and reliability of the device is achieved by using switching power supplies in combination with Class-D amplifier technology. A temperature-controlled fan constantly keeps all parts within the right operation range while avoiding excessive buzz. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload and limits the signal when necessary.

The input connections are performed using balanced XLR connectors and link output connectors are provided for link through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a gain adjustment potentiometer are provided for each channel. The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.

AUDAC CAP424 Key Features:

  • Lightweight class-D amplifier
  • Advanced protection circuit
  • XLR input & linkthrough connections with gain control & HPF switch
  • Terminal block output connections
  • High-pass filter switch
AUDAC CAP224 - 2 x 240W Dual Class-D Power Amplifier
SPECS & DOWNLOADS

Download the Product Data Sheet HERE >

AUDAC CAP424 Specifications

  • RMS/AES power handling: 4 x 240 W
  • Frequency Response (± 3 dB): 50 Hz - 22 kHz
  • Signal / Noise: > 100 dB
  • THD+N (@ 1 kHz): < 0.3% (1/2 Rated Power)
  • Crosstalk (@ 1 kHz): < 80 dB
  • Technology: Class-D
  • Outputs Voltage / Impedance: 100V, 70V, 4 Ω
  • Dimensions: 482 x 88 x 420 mm (W x H x D)
  • Weight: 8.350 kg
  • Mounting: 19”
  • Unit Height: 2 HE
}
